SPZ52-23CV - Scag Patriot 52" Zero-Turn Mower, 23hp Kohler (SN: R3600000 - R3699999) SPZ FUEL SYSTEM Parts Diagram

Patriot 52" Zero-Turn Mower, 23hp Kohler

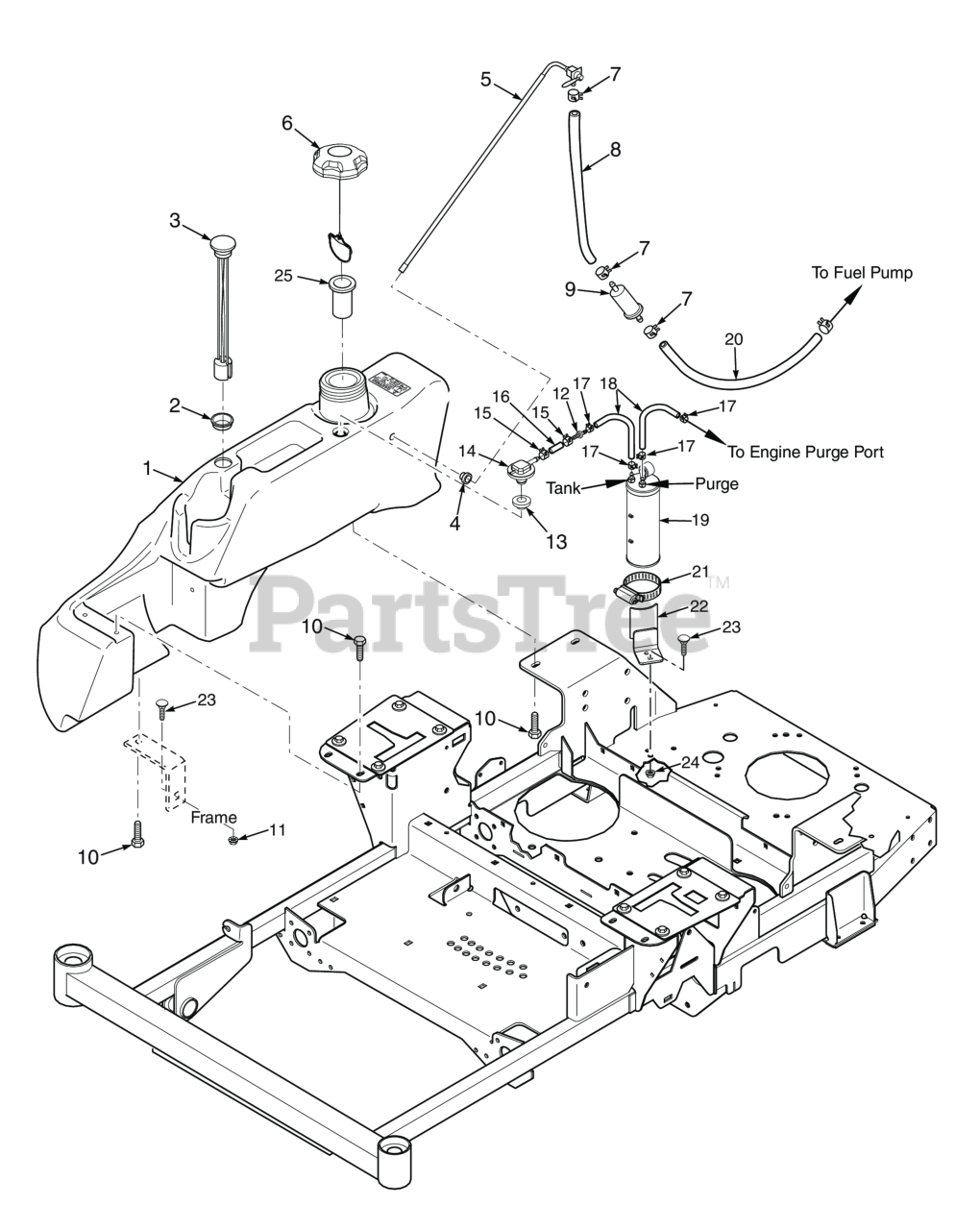

SPZ FUEL SYSTEM Parts Diagram

  • Title

1

Scag 463120

Fuel Tank Assembly - SPZ (Includes 2,3,4,5,13,14)

$599.99

$

Usually ships in 2-12 days

0

2

Scag 484242

Grommet, Fuel Gauge

$15.99

$

In Stock, only 2 left!

0

3

Scag 484243

Fuel Gauge Assembly

$82.99

$

Usually ships in 2-12 days

0

4

Scag 482571

Bushing, 0.56" Dia. Viton

$12.99

$

In Stock, Qty 20+

0

5

Scag 483555

Fuel Tube Assembly

$57.99

$

Usually ships in 2-12 days

0

6

Scag 484286

Fuel Cap w/ Tether (E.P.A.)

$54.99

$

In Stock, only 1 left!

0

Scag 485921

Gasket, Fuel Cap

$6.49

$

Usually ships in 2-12 days

0

Scag 484297

Fuel Cap w/Tethered - California Models Only

$65.99

$

Usually ships in 2-12 days

0

7

Scag 48059-01

Clamp, Fuel Hose 1/4" Hose I.D.

$0.99

$

In Stock, Qty 7

0

8

Scag 483617

Fuel Hose, 1/4" I.D. Non-Perm (791DFI Fuel Return) - Order by Inch

$0.99

$

In Stock, Qty 20+

0

9

Fuel Filter

Note: Available through engine manufacturer only.

$

$

Not available

10

Scag 04017-15

CAP SCREW, 5/16-18 X 1/2" SERRATED FLANGE HEX

$0.99

$

In Stock, Qty 8

0

11

Scag 04117-01

Nut, Flange Head Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 18

0

12

Scag 484343-01

Mender, 1/4 x 3/16 w/0.02 Hole

$26.99

$

In Stock, Qty 5

0

13

Scag 484285

Grommet, Viton,

$11.99

$

Usually ships in 2-12 days

0

14

Scag 484333

Remote Vent, No Valve

$14.99

$

In Stock, only 1 left!

0

15

Scag 48059-02

CLAMP, FUEL HOSE(KAWASAKI ONLY)

$0.99

$

In Stock, Qty 19

0

16

Scag 484347

Hose, 1/4" Vapor Recovery (order by inch)

$0.99

$

In Stock, Qty 20+

0

17

Scag 48059-05

Clamp, Vapor Recovery Hose 3/16"

$4.49

$

In Stock, only 3 left!

0

18

Scag 484345

Hose, Vapor Recovery 3/16" (order by inch)

$0.99

$

In Stock, Qty 20+

0

19

Scag 484342

Carbon Canister - SVR-52V / SVR-61V

$103.99

$

Usually ships in 2-12 days

0

20

Fuel Hose

Note: Available through engine manufacturer only.

$

$

Not available

21

Scag 48136-17

Clamp, 3-1/2" Max. Dia.

$7.49

$

Usually ships in 2-12 days

0

22

Scag 452226

Bracket Weldment, Kawasaki Models

$22.99

$

Usually ships in 2-12 days

0

23

Scag 04003-12

Bolt, 5/16-18 x .75 RHSN Carriage

$0.99

$

In Stock, Qty 20+

0

24

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

0

25

Scag 484279-01

Tube, Fuel Tank Insert - 4"

$4.49

$

In Stock, only 1 left!

0
