SPZ52-23CV - Scag Patriot 52" Zero-Turn Mower, 23hp Kohler (SN: N8100000 - N8199999) SHEET METAL COMPONENTS - SPZ Parts Diagram

Patriot 52" Zero-Turn Mower, 23hp Kohler

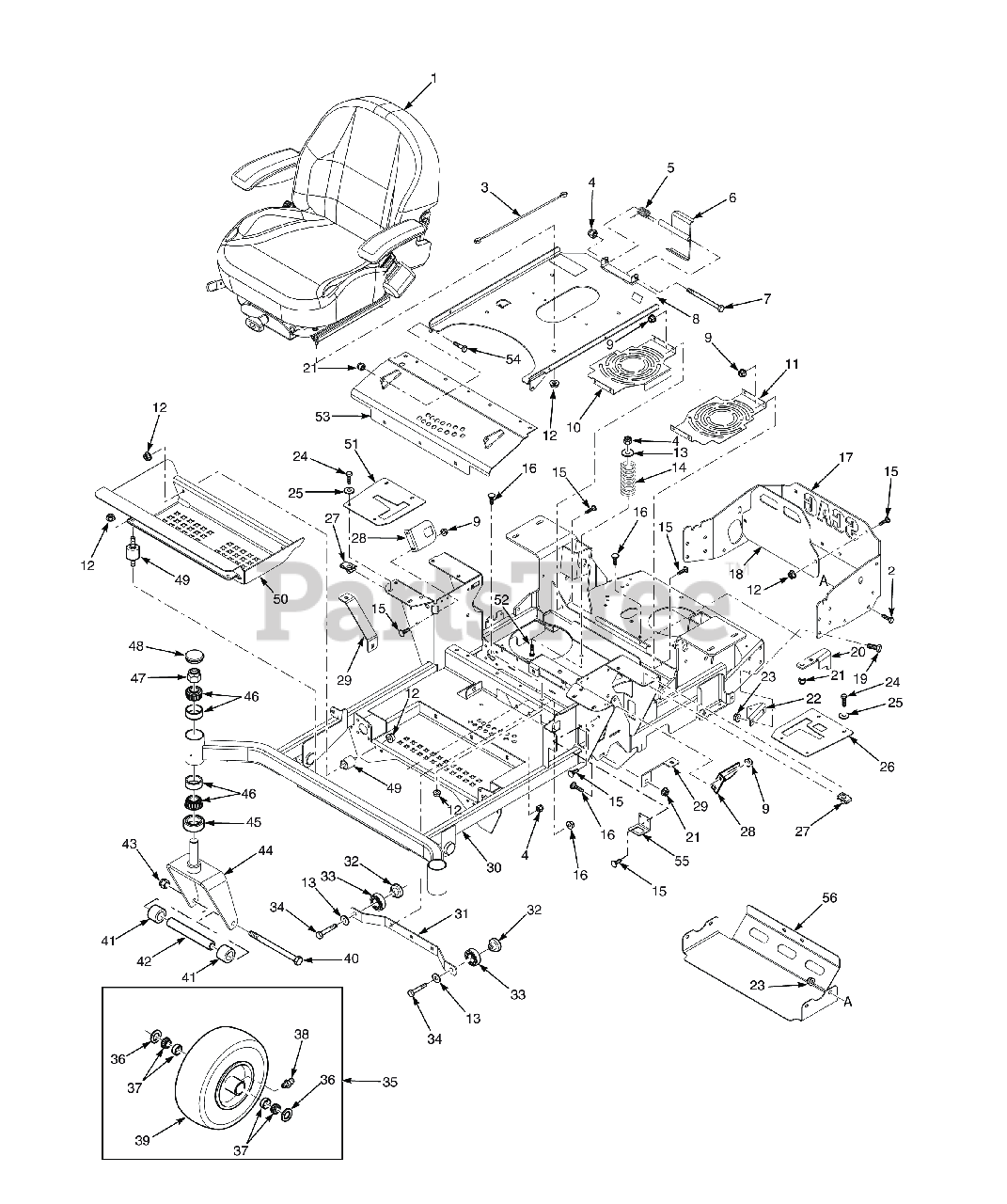

SHEET METAL COMPONENTS - SPZ Parts Diagram

  • Title

1

Scag 485983

Seat Assembly
(Superseded to 486545)

$677.99

$

Usually ships in 2-12 days

0

2

Scag 04001-18

Bolt, Hex Head, 3/8-16 x 3/4"

$0.99

$

In Stock, Qty 5

0

3

Scag 483559

Cable, Seat Stop

$8.99

$

Usually ships in 2-12 days

0

4

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

5

Scag 483371

Spring, Seat Latch

$7.99

$

Usually ships in 2-12 days

0

6

Scag 451883

Weldment, Seat Latch

$33.99

$

Usually ships in 2-12 days

0

7

Scag 04001-100

Bolt, 3/8-16 x 6.00" Hex Head

$5.99

$

Usually ships in 2-12 days

0

8

Scag 462998

Seat Plate Weldment

$202.99

$

Usually ships in 2-12 days

0

9

Scag 04019-02

NUT, 1/4-20 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

10

Scag 425698

Fan Cover, RH

$41.99

$

Usually ships in 2-12 days

0

11

Scag 425697

Fan Cover, LH

$41.99

$

In Stock, only 1 left!

0

12

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

0

13

Scag 04041-07

Flatwasher, 3/8" Special (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

14

Scag 483372

Spring, Seat

$12.99

$

Usually ships in 2-12 days

0

15

Scag 04001-59

SERR. FLG. HEX HEAD CAPSCREW, 5/16-18 X 3/4

$0.99

$

In Stock, Qty 5

0

16

Scag 04003-12

Bolt, 5/16-18 x .75 RHSN Carriage

$0.99

$

In Stock, Qty 20+

0

17

Scag 427122

Bumper - SPZ

$95.99

$

Usually ships in 2-12 days

0

17

Scag 427863

Bumper, (Black)
(Superseded to 427546)

$170.99

$

Usually ships in 2-12 days

0

18

Scag 427862

Guard, Engine, (Scag Gold)

$29.99

$

In Stock, only 1 left!

0

18

Scag 426053

Guard, Engine

$29.99

$

Usually ships in 2-12 days

0

19

Scag 04001-19

Bolt, Hex Head, 3/8-16 x 1 Gr. 5

$0.99

$

In Stock, Qty 6

0

20

Scag 425696

Bracket, Anti-Rotation

$13.99

$

Usually ships in 2-12 days

0

21

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

22

Scag 424639

Bracket, Dump Mounting

$4.49

$

Usually ships in 2-12 days

0

23

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

24

Scag 04001-14

Capscrew, Hex Head 1/4-20 x 1"

$0.99

$

In Stock, Qty 15

0

25

Scag 04040-14

Flatwasher, 1/4" (.312 x .750 x .065")

$0.99

$

In Stock, only 4 left!

0

26

Scag 462483

Control Plate w/Decal, LH

$29.99

$

Usually ships in 2-12 days

0

27

Scag 04110-01

Bolt, Hex Head 3/8-16 x 1"

$1.49

$

In Stock, Qty 18

0

28

Scag 424511

Bracket, Switch Mount

$6.99

$

Usually ships in 2-12 days

0

29

Scag 425890

Bracket, Tank Mount, SFZ52

$10.99

$

Usually ships in 2-12 days

0

30

Scag 462981

Mainframe Assy., w/Decals - SPZ52

$1640.99

$

Usually ships in 2-12 days

0

30

Scag 463116

Mainframe Assy., w/Decals (Black) - SPZ52
(Superseded to 463207)

$1788.99

$

Usually ships in 2-12 days

0

31

Scag 424480

Support, Deck Guide

$7.99

$

Usually ships in 2-12 days

0

32

Scag 43703

Spacer, Bearing

$11.99

$

Usually ships in 2-12 days

0

33

Scag 483379

Bearing

$5.49

$

In Stock, Qty 7

0

34

Scag 04001-31

Capscrew, Hex Head 3/8-16 x 2-1/2"

$0.99

$

In Stock, Qty 20+

0

35

Scag 482504

Wheel Assy(Inc.items 20, 42, 43, 54, 55)

$237.99

$

In Stock, only 3 left!

0

35

Scag 486294

Wheel Assembly, (Black)

$152.99

$

Usually ships in 2-12 days

0

36

Scag 482622

Roller Bearing, Short

$9.99

$

In Stock, Qty 20+

0

37

Scag 482621

Bearing, Tapered Roller

$20.99

$

In Stock, Qty 20+

0

38

Scag 48114-10

Fitting, Grease

$3.99

$

In Stock, only 1 left!

0

39

Scag 482619

Tire, 13 x 6.50 4-Ply (61A, 72A)

$171.99

$

Usually ships in 2-12 days

0

39

Scag 482620

Rim Assembly, 61A & 72A (Inc. item 55)

$238.99

$

Usually ships in 2-12 days

0

39

Scag 486295

Rim, (Black)

$86.99

$

Usually ships in 2-12 days

0

40

Scag 04001-167

Bolt, Hex Head 1/2-13 x 9-1/2" (61V & 72A/VS)

$5.99

$

In Stock, Qty 20+

0

41

Scag 43584

Spacer, Caster Wheel

$2.99

$

In Stock, Qty 20+

0

42

Scag 43583

Sleeve, Caster Wheel (61V, 72A/VS)

$13.99

$

In Stock, Qty 20+

0

43

Scag 04021-07

HEX LOCKNUT, ELASTIC STOP, 1/2-13

$0.99

$

In Stock, Qty 20+

0

44

Scag 451658

Yoke, Front Caster Wheel (61")

$111.99

$

In Stock, only 1 left!

0

44

Scag 453007

Yoke Weldment, (Black))

$96.99

$

In Stock, only 1 left!

0

45

Scag 481025

Seal, 2.00" O.D. x 1.625" Bore

$4.99

$

In Stock, Qty 20+

0

46

Scag 48668

BEARING & CUP, TAPERED SPINDLE

$23.99

$

In Stock, Qty 20+

0

47

Scag 04021-20

Nut, Hex Elastic Stop 1.0"-14

$4.99

$

In Stock, Qty 20+

0

48

Scag 484195

Cap, Grease

$2.49

$

In Stock, Qty 20+

0

49

Scag 483493

Rubber Isolator

$23.99

$

In Stock, only 2 left!

0

50

Scag 451889

Footplate Weldment, SFZ52

$114.99

$

Usually ships in 2-12 days

0

50

Scag 453003

Footplate Weldment, (Black) - SPZ52

$116.99

$

Usually ships in 2-12 days

0

51

Scag 462484

Control PLate w/Decal, RH

$20.99

$

Usually ships in 2-12 days

0

52

Scag 04003-11

SHORT SQ. NECK CARRIAGE BOLT, 3/8-16 X 1-1/4"

$0.99

$

In Stock, Qty 7

0

53

Scag 462996

Deck Lift Cover w/Decal, SPZ52

$128.99

$

Usually ships in 2-12 days

0

53

Scag 463108

Deck Lift Cover w/Decal, (Scag Gold Logo) - SPZ52

$148.99

$

Usually ships in 2-12 days

0

54

Scag 04001-73

BOLT, HEX HEAD 5/16-18 X 3-3/4"

$0.99

$

In Stock, Qty 9

0

55

Scag 425889

Switch Bracket

$11.99

$

Usually ships in 2-12 days

0

56

Scag 427864

Heat Shield, (Scag Gold)

$61.99

$

Usually ships in 2-12 days

0

56

Scag 427123

Heat Shield

$58.99

$

Usually ships in 2-12 days

0
