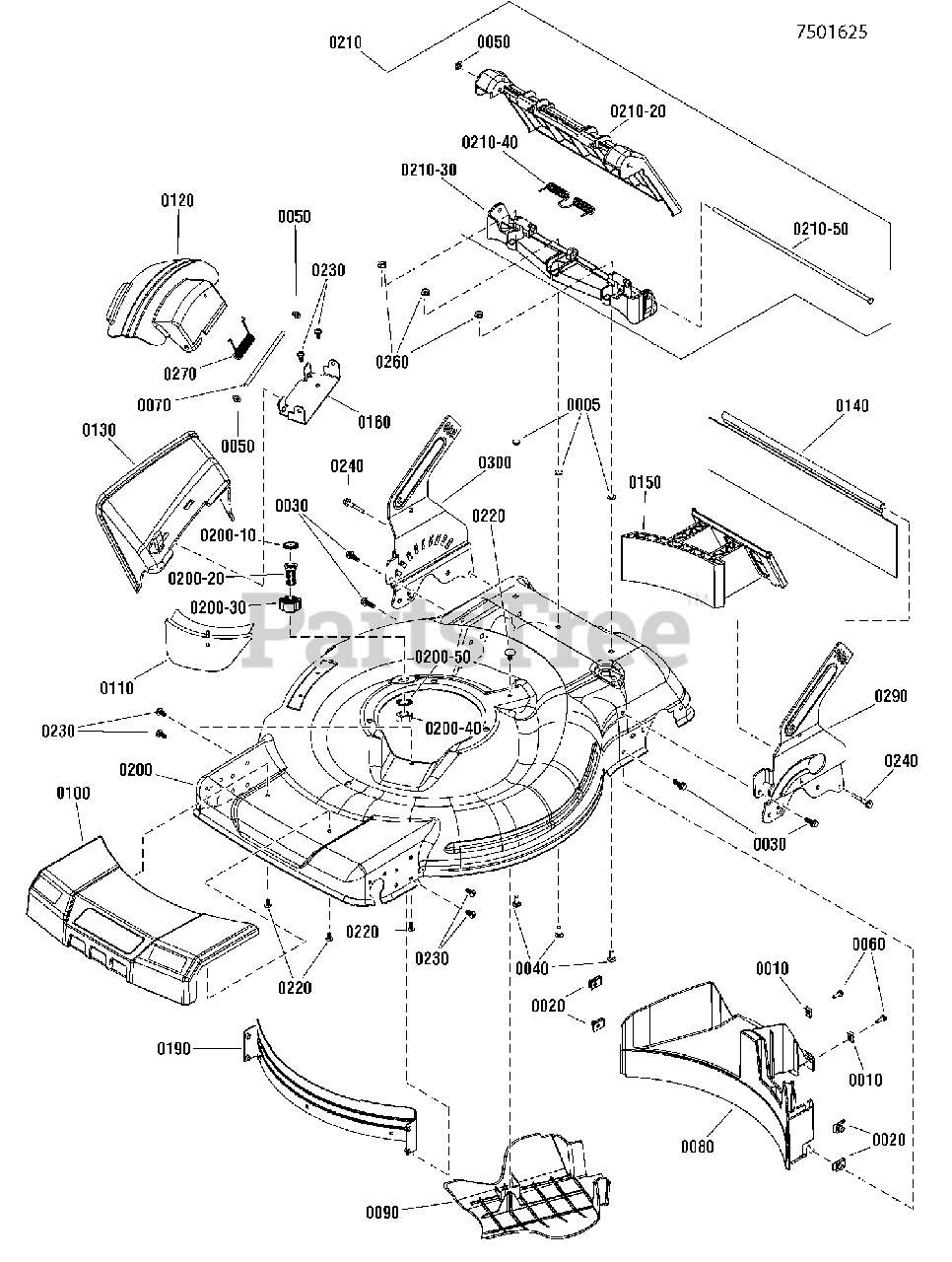

SPXV 22725E (7800830) - Snapper 22" Walk-Behind Mower, 7.25hp Deck Group, 22" RWD Parts Diagram

22" Walk-Behind Mower, 7.25hp

Deck Group, 22" RWD Parts Diagram

  • Title

0005

Snapper 703826

RETAINER, 1/4", Pushnut

Note: (Was 1960518 or 80004801)

$3.49

$

In Stock, Qty 20+

0

0010

Snapper 1960593SM

NUT, #10-24, Speed Retainer w/Extrusion

$4.99

$

Usually ships in 2-12 days

0

0020

Snapper 7023295SM

U-NUT, 1/4-20
(Superseded to 705876)

$4.49

$

In Stock, Qty 20+

0

0030

Snapper 1935450SMYP

BOLT, 1/4 - 20 X .750, Hex Flanged Cap, GR5, Zinc/Clear

Note: (Was 7090699 or 80002723)

$

$

Currently unavailable

0040

Snapper 703865

BOLT, 1/4-20 X .625, Carriage, ZC/CL

Note: (Was 703865, 7090803 or 80005235)

$3.49

$

Usually ships in 2-12 days

0

0050

Snapper 704005

NUT, 1/4", Push, Zinc/Clear

Note: (Was 704005, 7090120 or 80005599)

$4.49

$

In Stock, Qty 20+

0

0060

Snapper 7091075SM

SCREW, #10-24 x 5/8 Hex Washer Face Self-Tap, GR 5

$4.49

$

In Stock, Qty 5

0

0070

Snapper 7101067YP

ROD, Pivot

$6.99

$

Usually ships in 2-12 days

0

0080

Snapper 7103293YP

BAFFLE, Rear, Rear Wheel Drive WBM

$64.99

$

Usually ships in 2-12 days

0

0090

Snapper 7104819YP

BELT COVER, Rear Drive

$34.99

$

Usually ships in 2-12 days

0

0100

Snapper 7103295YP

COVER, Front, Push/Rear Wheel Drive
(Superseded to 7600191YP)

$37.99

$

Usually ships in 2-12 days

0

0110

Snapper 7103296YP

DEBRIS SHIELD, Front

$8.99

$

In Stock, only 2 left!

0

0120

Snapper 7103298YP

COVER, Mulching

$

$

Not available

0130

Snapper 7103299YP

CHUTE, Side Discharge, 22 WBM

$35.99

$

In Stock, only 1 left!

0

0140

Snapper 7103323YP

GUARD, Rear 22"

$9.49

$

In Stock, only 1 left!

0

0150

Snapper 7103453YP

PLUG, Mulching, 22 Deck

$32.99

$

In Stock, only 3 left!

0

0160

Snapper 7300855BMYP

BRACKET, Chute

$9.99

$

Usually ships in 2-12 days

0

0190

Snapper 7301020YP

BAFFLE, Front

$50.99

$

In Stock, only 1 left!

0

0200

Snapper 7600155YP

DECK, 22, Rear Wheel Drive, Washout

$208.99

$

Usually ships in 2-12 days

0

0210

Snapper 7501541YP

ASSEMBLY, Door, 22 WBM

Note: (incl. next 4 items and 0050)

$45.99

$

Usually ships in 2-12 days

0

0210-20

Snapper 7103291YP

DOOR, Rear Discharge
(Superseded to 7501541YP)

$45.99

$

Usually ships in 2-12 days

0

0210-30

Snapper 7103292YP

HINGE, Rear Discharge Door

$19.99

$

In Stock, only 1 left!

0

0210-40

Snapper 7103309YP

SPRING, Torsion, Rear Door

$5.49

$

In Stock, only 1 left!

0

0210-50

Snapper 7103322YP

ROD, Pivot, Rear Door

$3.99

$

Usually ships in 2-12 days

0

0220

Snapper 7900018YP

SCREW, Round Washer Head Torx Hi-Lo
(Superseded to 703834)

Note: (Was 80004416)

$4.49

$

In Stock, only 4 left!

0

0230

Snapper 7900067YP

SCREW, 1/4-20 X .550 Self-Tap (Torx)
(Superseded to 703961)

$4.49

$

In Stock, Qty 20+

0

0240

Snapper 7900073YP

BOLT, 1/4-20 x 1-1/2 Shoulder

$3.49

$

Usually ships in 2-12 days

0

0260

Snapper 15X143MA

NUT, 1/4-20 Hex Flange Lock

Note: (Was 722398 or 80003547)

$4.99

$

In Stock, Qty 13

0

0270

Snapper 166X38MA

SPRING, Torsion, Side Chute

$4.99

$

In Stock, only 2 left!

0

0290

Snapper 7300885BHYP

BRACKET, Lower Handle, LH, 22 WBM

$26.99

$

Usually ships in 2-12 days

0

0300

Snapper 7300915BHYP

BRACKET, Lower Handle, RH, 22 WBM

$26.99

$

Usually ships in 2-12 days

0

0200-10

Snapper 1960716SM

NUT, 5/8-11, NC-2B Black Hex Jam

$3.49

$

Usually ships in 2-12 days

0

0200-20

Snapper 7103804YP

ADAPTOR, Washout Port, WBM

$6.49

$

Usually ships in 2-12 days

0

0200-30

Snapper 7103919YP

COUPLING, Hose

$4.49

$

Usually ships in 2-12 days

0

0200-40

Snapper 7103957YP

WASHER, Hose

$3.99

$

Usually ships in 2-12 days

0

0200-50

Snapper 7090880YP

WASHER, 5/8 Internal Tooth Lock

$4.49

$

Usually ships in 2-12 days

0
