SPXV 22725 (7800832) - Snapper 22" Walk-Behind Mower, 7.25hp Transmission Group Parts Diagram

22" Walk-Behind Mower, 7.25hp

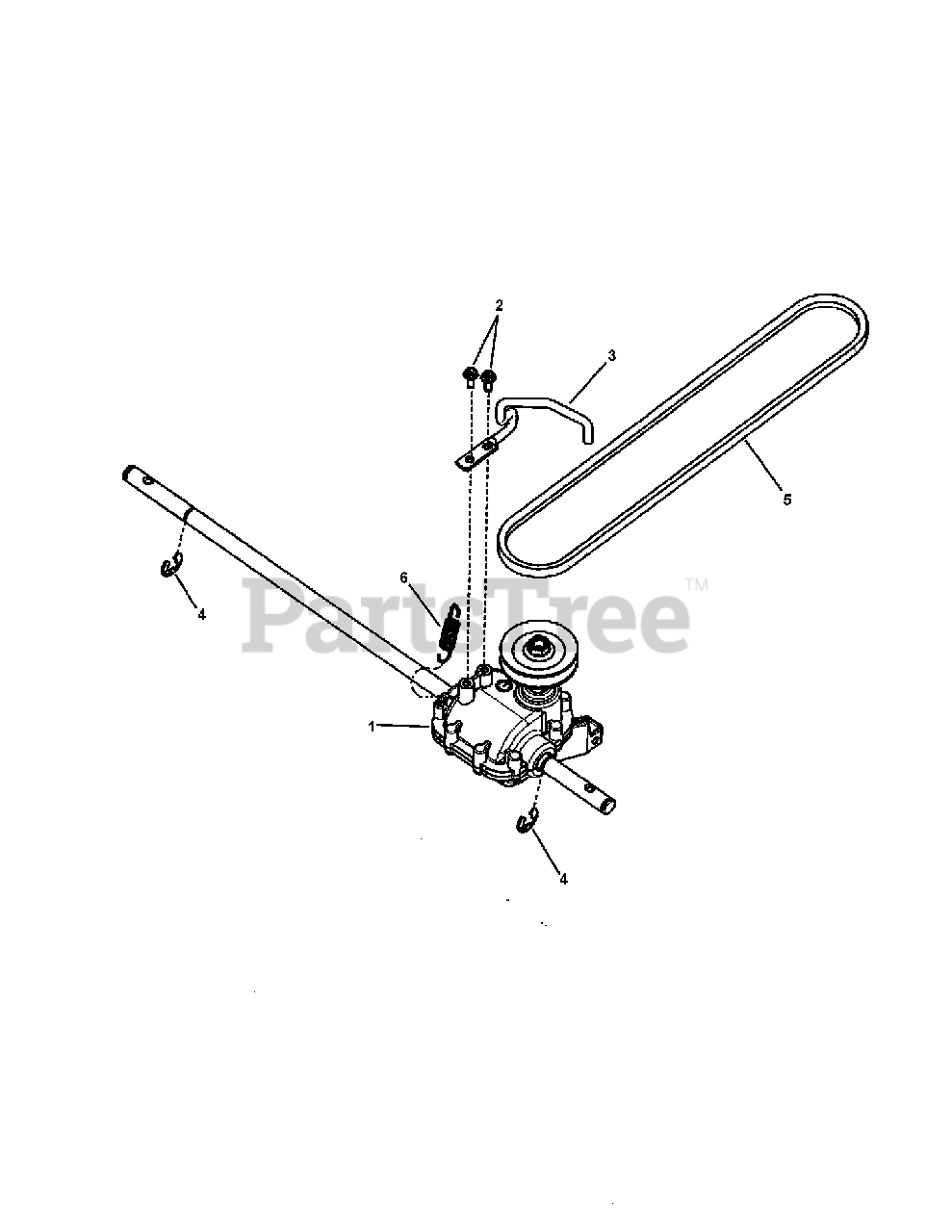

Transmission Group Parts Diagram

  • Title

1

Snapper 7103311

TRANSMISSION, Varaible Speed, Front Wheel Drive
(Superseded to 7103311YP)

$115.99

$

In Stock, only 2 left!

0

2

Snapper 7900055

SCREW, #10-14 x 1/2" Hex Washer Self-Tap, Plastite
(Superseded to 7900055YP)

$4.49

$

In Stock, only 2 left!

0

3

Snapper 7103304

GUIDE, Belt, FWD
(Superseded to 7103304YP)

$28.99

$

Usually ships in 2-12 days

0

4

Snapper 7014341

RETAINING RING, .392 Ext.
(Superseded to 703976)

Note: (Waldes No. 5133-50 or equiv.)

$4.49

$

In Stock, Qty 10

0

5

Snapper 7103362

BELT, Traction Drive, 22" WBM, FWD (3L Sect., 32.40 Effective Length)
(Superseded to 7103362YP)

$22.99

$

In Stock, only 2 left!

0

6

Snapper 7104930

SPRING, Tension, FWD React Drive
(Superseded to 7104930YP)

$4.99

$

Usually ships in 2-12 days

0
