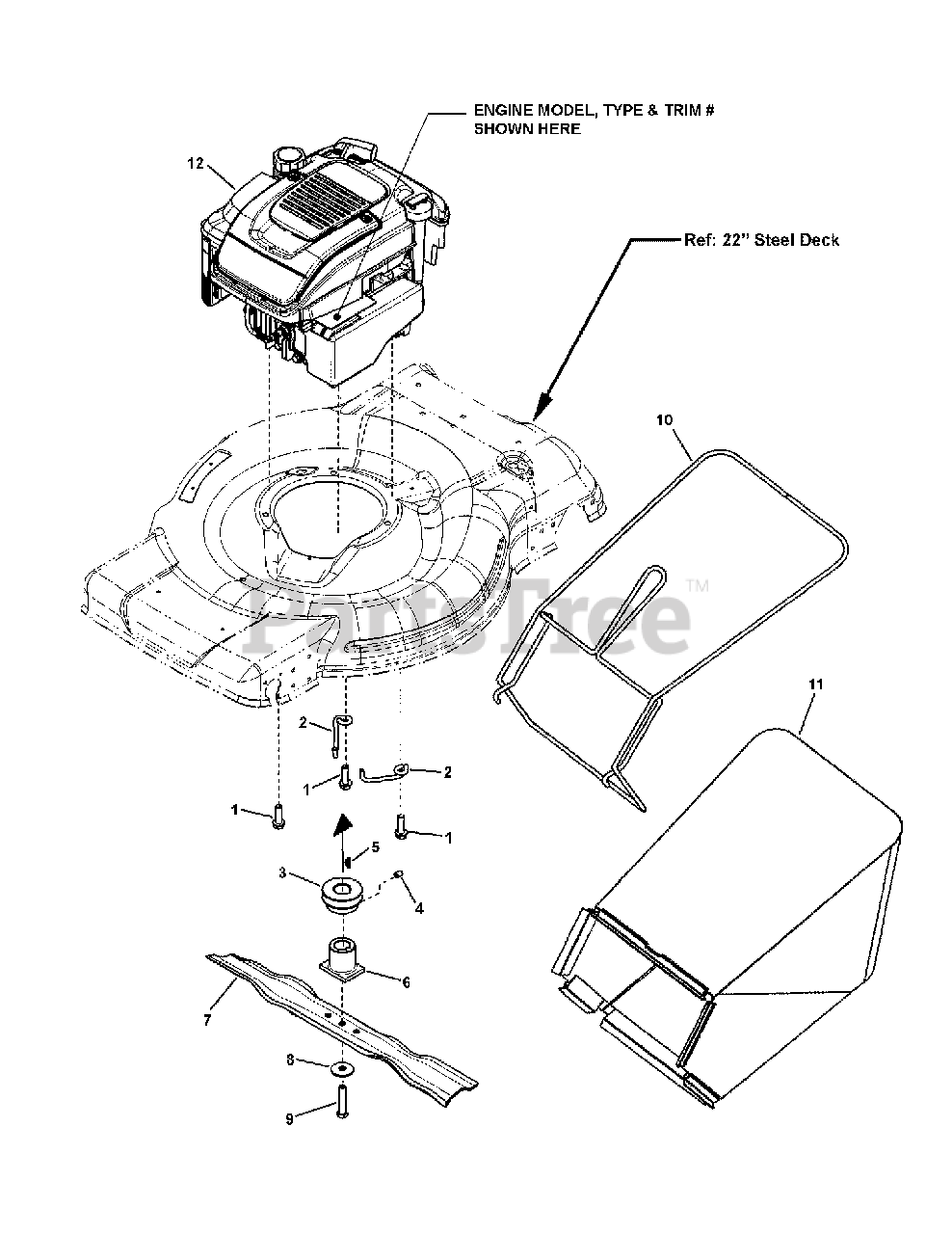

SPXV 2270HW (7800776) - Snapper 22" Walk-Behind Mower, 7hp Engine Group Parts Diagram

22" Walk-Behind Mower, 7hp

Engine Group Parts Diagram

  • Title

1

Snapper 7900072

SCREW, 3/8-16 x 1-1/4" Hex Washer Self-Tap
(Superseded to 7900072YP)

$3.99

$

Usually ships in 2-12 days

0

2

Snapper 7103517

BELT GUIDE, Engine, FWD
(Superseded to 7103517YP)

$3.49

$

Usually ships in 2-12 days

0

3

Snapper 7100437

PULLEY, Engine
(Superseded to 7100437YP)

$40.99

$

Usually ships in 2-12 days

0

4

Snapper 7092086

SET SCREW, 5/16-18 x 1/2" Hex Recess
(Superseded to 7092086YP)

$4.99

$

Usually ships in 2-12 days

0

5

Snapper 7091214

KEY, # HP-506 Hi-Pro
(Superseded to 7091214YP)

$4.99

$

In Stock, only 1 left!

0

6

Snapper 7101414

BLADE HUB, 21" WBM, RD, 2 Position
(Superseded to 7101414YP)

$16.99

$

In Stock, only 1 left!

0

7

Snapper 7103288BZ

BLADE, Wave, Steel Deck
(Superseded to 7103288YP)

$29.99

$

In Stock, Qty 8

0

8

Snapper 7012063

WASHER, Cone 13/32x1-13/32" Dia.
(Superseded to 703963)

$6.99

$

In Stock, only 2 left!

0

9

Snapper 7090167

SCREW, 3/8-24 x 2" Hex Head Cap, GR 5
(Superseded to 7090167SM)

$3.99

$

Usually ships in 2-12 days

0

10

Snapper 7103305A

BAG FRAME, Rear Discharge (weldment)
(Superseded to 7103305AYP)

$170.99

$

Usually ships in 2-12 days

0

11

Snapper 7103375

GRASS BAG, 22" Rear Discharge
(Superseded to 7103375YP)

$98.99

$

Usually ships in 2-12 days

0

12

Snapper 128T02-0740-B3

* ENGINE, B&S, 700 Series, B3, X-Spec

Note: (Used on 7800776)

$

$

Not available

12

Snapper 128T02-0115-F1

* ENGINE, B&S, 700 Series, F1, X-Spec

Note: (Used on 7800779)

$

$

Currently unavailable
