22" Walk-Behind Mower, 7hp

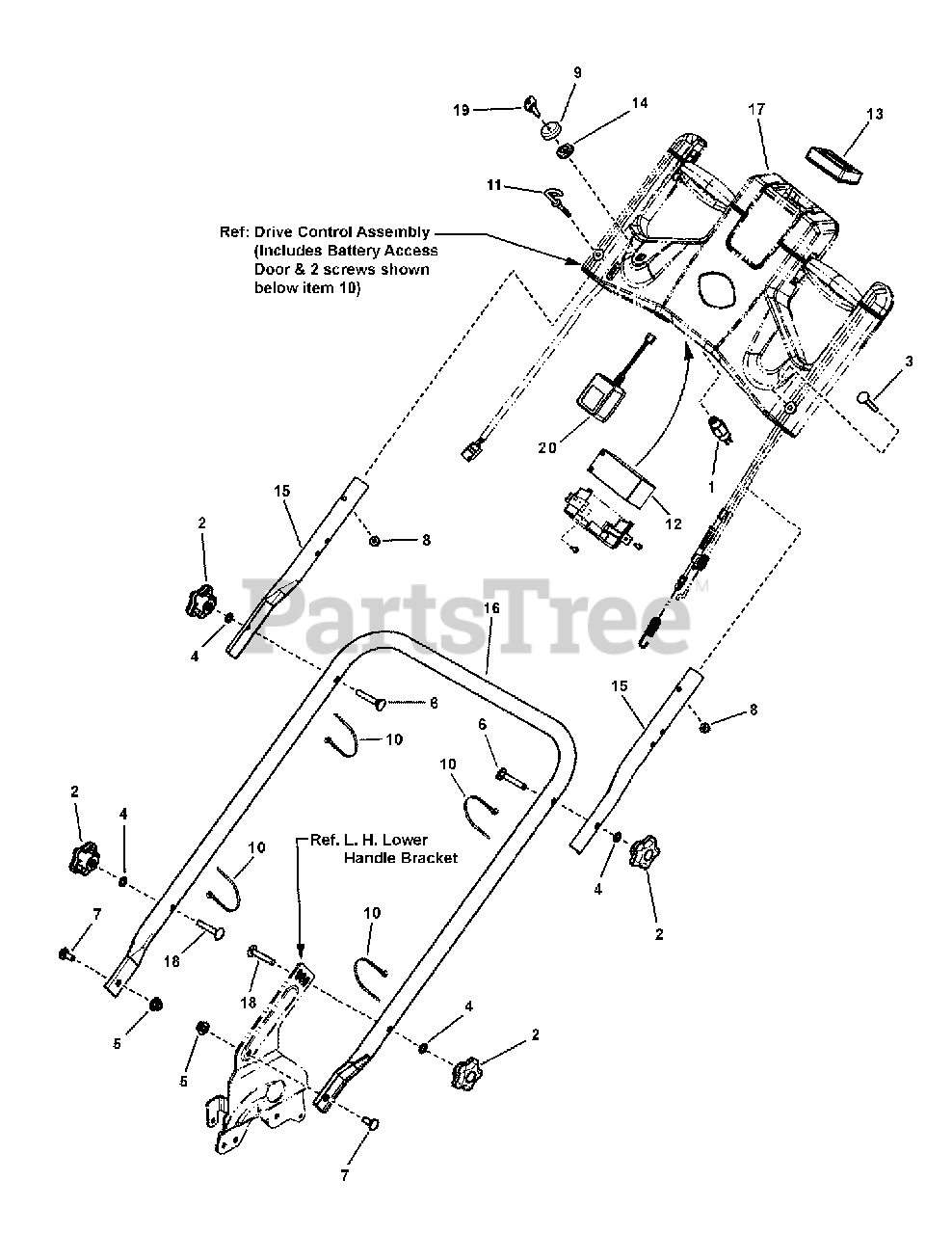

Handles & Controls Group - Electric Start Parts Diagram

  • Title

1

Snapper 7028765

SWITCH, ES, Start/Run
(Superseded to 690646)

$34.99

$

In Stock, Qty 5

0

2

Snapper 7102990

KNOB, Handle, (5/16-18 internal threads) 5-Prong
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

3

Snapper 7090015

BOLT, 1/4-20 x 1-3/4" Round Head Square Neck, GR 2, YZ
(Superseded to 7090015YP)

$3.99

$

Usually ships in 2-12 days

0

4

Snapper 7090391

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

5

Snapper 7090951

NUT, 5/16-18 Large Flange Center Lock
(Superseded to 704001)

$4.49

$

In Stock, Qty 13

0

6

Snapper 7091189

BOLT, 5/16-18 x 2" Curved Head Square Neck, GR 2
(Superseded to 703059)

$4.49

$

In Stock, Qty 12

0

7

Snapper 1931333

BOLT, 5/16-18 x 3/4" Round Head Short Square Neck Carriage, GR 5
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

8

Snapper 2860694

NUT, 1/4-20 Hex Flange (Esna), YZ
(Superseded to 703463)

$4.49

$

In Stock, Qty 20+

0

9

Snapper 7023506

BEZEL, Black
(Superseded to 7023506SM)

$4.49

$

Usually ships in 2-12 days

0

10

Snapper 7024649

WIRE TIE, 11 Inch Standard Black Nylon
(Superseded to 7024649YP)

$5.49

$

Usually ships in 2-12 days

0

11

Snapper 7101410

ROPE GUIDE, (1/4-20 thread)
(Superseded to 7101410YP)

$6.49

$

In Stock, only 1 left!

0

12

Snapper 7102931

BATTERY, 12V DC, 1.3A / HR
(Superseded to 707495)

$64.99

$

In Stock, only 2 left!

0

13

Snapper 7103774

METER, Service Indicator
(Superseded to 7103774YP)

$56.99

$

Usually ships in 2-12 days

0

14

Snapper 7104149

NUT, Plastic, 5/8-32
(Superseded to 7104149YP)

$3.49

$

Usually ships in 2-12 days

0

15

Snapper 7300649BH

HANDLE, Connecting, 21" / 22" WBM
(Superseded to 7300649BHYP)

$26.99

$

Usually ships in 2-12 days

0

16

Snapper 7301189BH

HANDLE, Lower
(Superseded to 7301189BHYP)

$176.99

$

Usually ships in 2-12 days

0

17

Snapper 7502046

ASSEMBLY, Drive Control, Snapper Electric Start
(Superseded to 7502829YP)

$205.99

$

Usually ships in 2-12 days

0

18

Snapper 1931338

BOLT, 5/16-18 x 1-3/4" Short Square Neck Carriage, GR 5
(Superseded to 703175)

$3.99

$

In Stock, only 2 left!

0

19

Snapper 7011138

KEY, Ignition, Pair
(Superseded to 7011138YP)

$7.49

$

In Stock, Qty 7

0

20

Snapper 7103988

CHARGER, Battery, 14V 260MA, 120V AC
(Superseded to 770625)

$59.99

$

In Stock, only 2 left!
