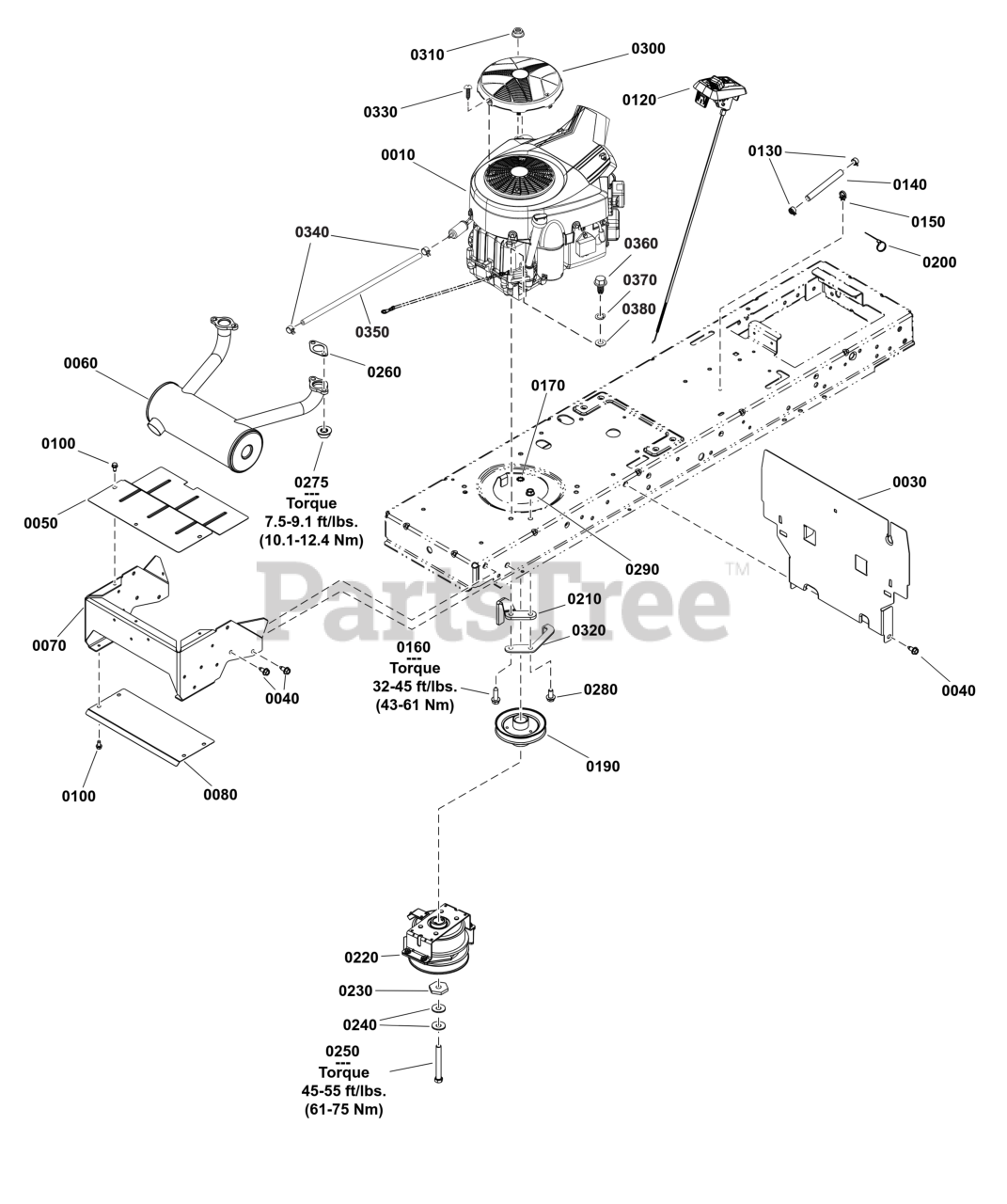

SPX 275 (2691929-01) - Snapper LT200 Series 48"/122cm Lawn Tractor, 23hp Engine Group Parts Diagram

LT200 Series 48"/122cm Lawn Tractor, 23hp

Engine Group Parts Diagram

  • Title

0010

Snapper 44U677-0021-B5

* ENGINE, 23 Gross HP, Briggs & Stratton Twin, Pro Series, Mod. 44U677-0021-B5

Note: ( Engine Model: 44U677-0021-B5 )

$

$

Currently unavailable

0030

Snapper 1738380AYP

HEAT SHIELD, Engine

$51.99

$

Usually ships in 2-12 days

0

0040

Snapper 703228

SCREW, 5/16-18 X .75

$4.49

$

In Stock, Qty 20+

0

0050

Snapper 1761064CJYP

HEAT SHIELD

$29.99

$

Usually ships in 2-12 days

0

0060

Snapper 1761127YP

MUFFLER, Twin

$201.99

$

Usually ships in 2-12 days

0

0070

Snapper 1761211CJYP

Support, Muffler

$86.99

$

Usually ships in 2-12 days

0

0080

Snapper 1761063CJYP

HEAT SHIELD, Bottom

$28.99

$

Usually ships in 2-12 days

0

0100

Snapper 704130

SCREW, HEX, 1/4-20X.5

$3.99

$

In Stock, Qty 7

0

0120

Snapper 1759240YP

THROTTLE

$65.99

$

Usually ships in 2-12 days

0

0130

Snapper 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 20+

0

0140

Snapper 845503

LINE-FUEL

$35.99

$

Usually ships in 2-12 days

0

0150

Snapper 1730268SM

CLIP, Hose, 1/2 Dia., Push In

$3.99

$

Usually ships in 2-12 days

0

0160

Snapper 704010

SCREW, HEX, 3/8-16

$4.99

$

Usually ships in 2-12 days

0

0170

Snapper 703864

WASHER, EXT, 3/8

$4.49

$

Usually ships in 2-12 days

0

0190

Snapper 1732576SM

PULLEY & HUB ASSEMBLY, Engine

$42.99

$

In Stock, only 1 left!

0

0200

Snapper 703586

TIE, SELF LOCKING

$4.99

$

Usually ships in 2-12 days

0

0210

Snapper 1760323CJYP

CLUTCH, Anchor

$27.99

$

Usually ships in 2-12 days

0

0220

Snapper 1760986YP

OGURA CLUTCH

Note: ( Position clutch as illustrated )

$323.99

$

Usually ships in 2-12 days

0

0230

Snapper 1708264SM

WASHER, HEX, 0.453ID

$8.99

$

In Stock, Qty 5

0

0240

Snapper 1960769YP

WASHER, Belleville

$4.99

$

Usually ships in 2-12 days

0

0250

Snapper 771023

CAPSCREW, Hex Head, Loctite, 7/16-20 x 3 1/2

$6.99

$

In Stock, only 2 left!

0

0260

Snapper 690970

GASKET, Exhaust

$4.99

$

In Stock, Qty 20+

0

0275

Snapper 690941

NUT

$4.99

$

In Stock, Qty 7

0

0280

Snapper 704038

SCREW

$5.99

$

In Stock, only 2 left!

0

0290

Snapper 703333

NUT, 3/8-16

$4.99

$

In Stock, Qty 20+

0

0300

Snapper 797420YP

GUARD, Debris Screen

$37.99

$

Usually ships in 2-12 days

0

0310

Snapper 5025392SM

NUT, Ny Lock Flange, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0320

Snapper 84004562

GUIDE, Belt

$16.99

$

In Stock, only 2 left!

0

0330

Snapper 799359

SCREW

$4.49

$

In Stock, only 3 left!

0

0340

Snapper 93053B

CLAMP, Hose

$

$

Not available

0350

Snapper 791766

LINE, Fuel

$7.99

$

In Stock, Qty 20+

0

0360

Snapper 703054

SCREW, 1/4-20X0.625

$4.49

$

In Stock, Qty 5

0

0370

Snapper 703332

WASHER

$4.49

$

In Stock, Qty 20+

0

0380

Snapper 1921880SM

LOCKWASHER-EXTERNALTO

$3.49

$

Usually ships in 2-12 days

0
