SPX 275 (2691929-00) - Snapper LT200 Series 48"/122cm Lawn Tractor, 23hp Wheels & Tires Parts Diagram

LT200 Series 48"/122cm Lawn Tractor, 23hp

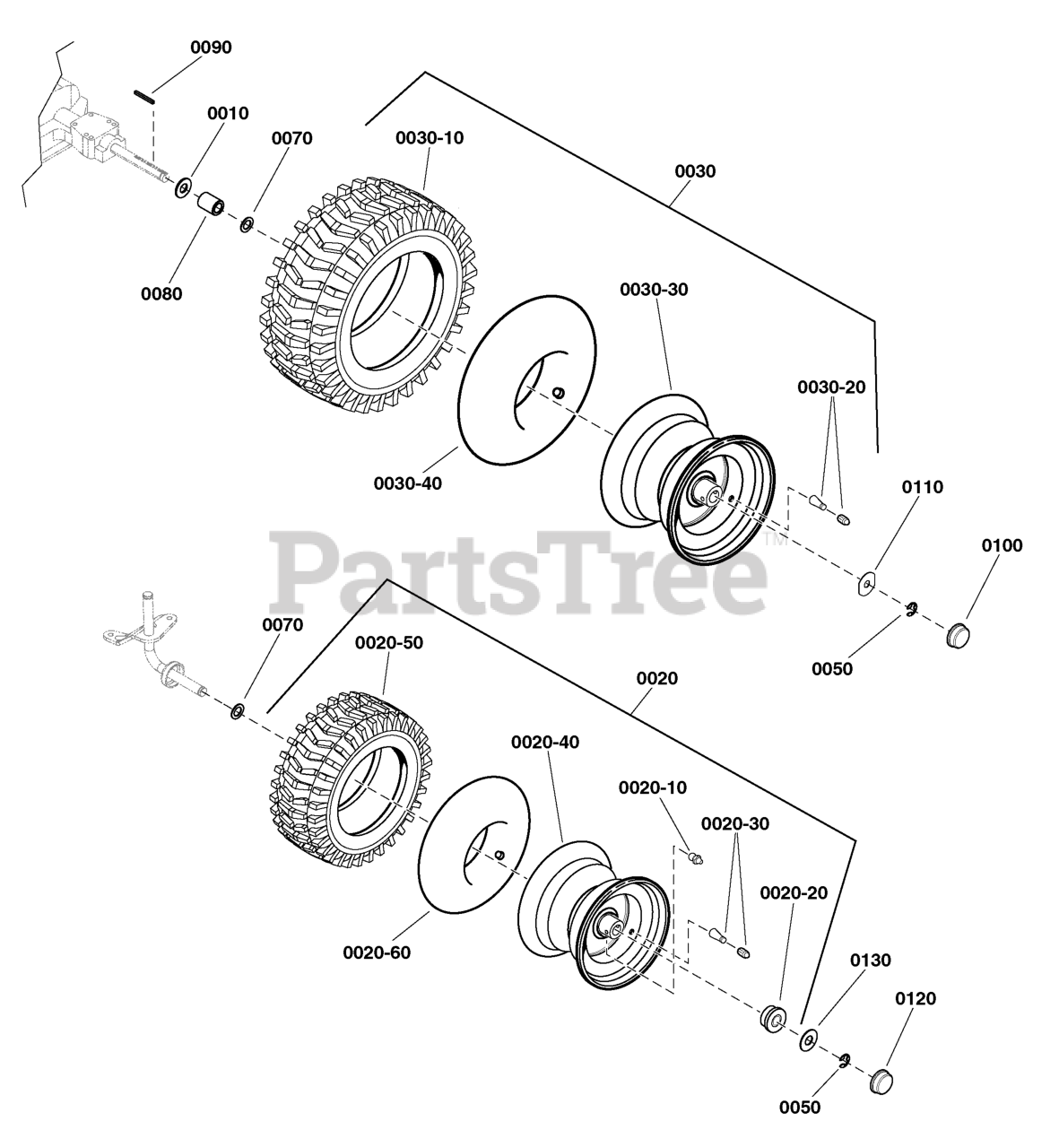

Wheels & Tires Parts Diagram

  • Title

0010

Snapper 2860202SM

WASHER, 3/4 x 1-5/8 OD x 1/8 Thick

$4.49

$

In Stock, Qty 20+

0

0020

Snapper 1761503YP

WHEEL AND TIRE ASSEMBLY, Front, 15 x 6-6

$182.99

$

In Stock, only 2 left!

0

0020-10

Snapper 84003425

ZERK, Grease Fitting

$6.49

$

Usually ships in 2-12 days

0

0020-20

Snapper 84003424

BEARING, Ball

$10.99

$

In Stock, Qty 15

0

0020-30

Snapper 2172353SM

VALVE STEM & CAP
(Superseded to 024373MA)

$

$

Not available

0020-40

WHEEL, Front, 6"

Note: (Refer to Note: *)

$

$

Not available

0020-50

Snapper 7101556YP

TIRE, 15 x 6 2 Ply K358
(Superseded to 1731951SM)

$131.99

$

In Stock, Qty 8

0

0020-60

Snapper 1664090SM

TUBE, Tire, Front

$26.99

$

In Stock, only 3 left!

0

0030

Snapper 7101569YP

WHEEL & TIRE ASSEMBLY, 22 X 9.5-12

$359.99

$

Usually ships in 2-12 days

0

0030-10

Snapper 7101568YP

TIRE, 22 x 9.50-12, 2 Ply K358

$220.99

$

Usually ships in 2-12 days

0

0030-20

Snapper 2172353SM

VALVE STEM & CAP
(Superseded to 024373MA)

$

$

Not available

0030-30

RIM, 12x x7 Int W/3 5 Lg Hub Silver

Note: (Refer to Note: *)

$

$

Not available

0030-40

Snapper 2173477SM

TUBE

$85.99

$

Usually ships in 2-12 days

0

0050

Snapper 2827794SM

KLIPRING, .75 Dia Shaft

$3.49

$

In Stock, Qty 16

0

0070

Snapper 1960528SM

WASHER, 49/64" I.D. x 1-1/4" O.D.

$7.49

$

Usually ships in 2-12 days

0

0080

Snapper 1730181SM

SPACER, 3/4 ID x 1-1/4 OD x 1-5/8

$9.49

$

In Stock, only 2 left!

0

0090

Snapper 021553MA

KEY, Square, 3/16

$4.99

$

In Stock, only 2 left!

0

0100

Snapper 1722676SM

HUB CAP

$5.49

$

In Stock, Qty 20+

0

0110

Snapper 1722717SM

WASHER, 2-1/2

$7.99

$

In Stock, Qty 20+

0

0120

Snapper 1722675SM

CAP, Hub, 1-1/2 ID Gray Poly 1.3 HI

$4.49

$

In Stock, Qty 20+

0

0130

Snapper 1960160SM

WASHER, 0.750 ID x 1.60 OD x .05 Thick

$4.99

$

In Stock, Qty 11

0
