SPX 2548 (2691282-00) - Snapper LT150 Series 48" Lawn Tractor, Fab Deck, 25hp Engine Group - 22, 23 & 25 Gross HP Briggs & Stratton EFM Twin Professional Series Parts Diagram

LT150 Series 48" Lawn Tractor, Fab Deck, 25hp

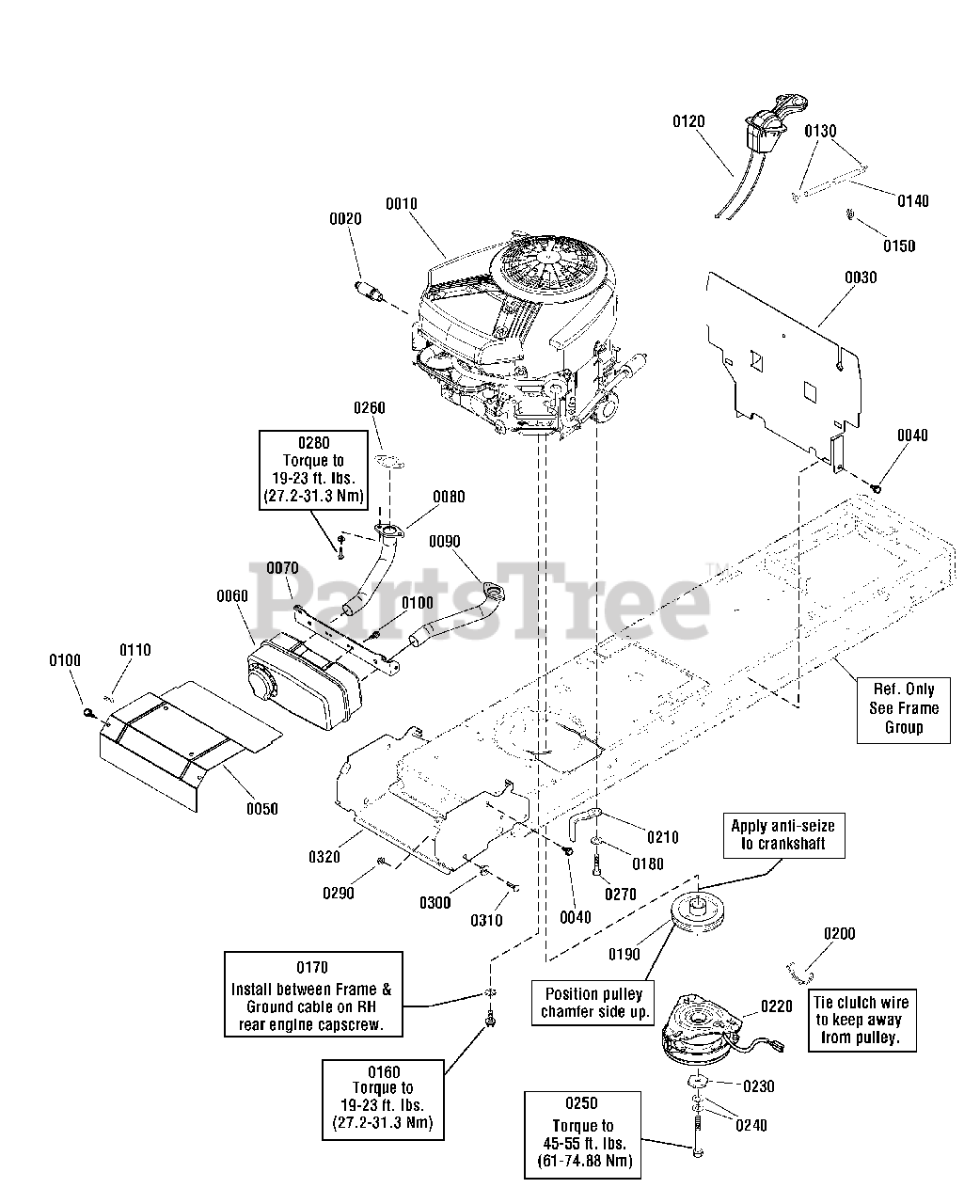

Engine Group - 22, 23 & 25 Gross HP Briggs & Stratton EFM Twin Professional Series Parts Diagram

  • Title

0010

Snapper 44R677-0005-G1

* ENGINE, 22 Gross HP Briggs & Stratton Pro Series, VS Twin

$

$

Not available

0010

Snapper 44S677-0003-G1

* ENGINE, 22 Gross HP B&S, Twin Professional Series

$

$

Not available

0010

Snapper 44S777-0005-G1

* ENGINE, 23 Gross HP B&S, Twin Professional Series

$

$

Not available

0010

Snapper 44S977-0008-G1

* ENGINE, 25 Gross HP, Briggs & Stratton Twin, Pro Series, Mod. 44S977-0008-G1

$

$

Currently unavailable

0010

Snapper 44S977-0006-G1

* ENGINE, 25 Gross HP Briggs & Stratton Pro Series, VS Twin

$

$

Not available

0030

Snapper 1738380AYP

HEAT SHIELD, Engine

$51.99

$

Usually ships in 2-12 days

0

0040

Snapper 1930601SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

0050

Snapper 1727997ASM

HEAT SHIELD, Engine, Twin

$33.99

$

Usually ships in 2-12 days

0

0060

Snapper 1727994SM

MUFFLER, Briggs & Stratton Twin

$98.99

$

Usually ships in 2-12 days

0

0070

Snapper 1727976ASM

SUPPORT, Muffler
(Superseded to 1727976BMYP)

$14.99

$

Usually ships in 2-12 days

0

0080

Snapper 1727979SM

PIPE, Exhaust, Flanged, R.H, 11/8 OD

$37.99

$

In Stock, only 1 left!

0

0090

Snapper 1727980SM

PIPE, Exhaust, Flanged, L.H, 11/8 OD

$37.99

$

In Stock, only 2 left!

0

0100

Snapper 1925003SM

CAPSCREW, Hex Washer Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 11

0

0110

Snapper 2834683SM

CLIP, Wire, 1/8 Dia.
(Superseded to 2172434SM)

$4.99

$

Usually ships in 2-12 days

0

0120

Snapper 1738793YP

CONTROL, Throttle Only

$52.99

$

Usually ships in 2-12 days

0

0130

Snapper 93053

CLAMP, Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

0140

Snapper 1734993SM

HOSE, Fuel, 1/4 ID x 1/2 OD, 55" Long, Low Perm.
(Superseded to 845503)

$35.99

$

Usually ships in 2-12 days

0

0150

Snapper 1730268SM

CLIP, Hose, 1/2 Dia., Push In

$3.99

$

Usually ships in 2-12 days

0

0160

Snapper 2827187SM

CAPSCREW, Hex Washer Head, Taptite, 3/8-16 x 1
(Superseded to 704000)

$4.99

$

In Stock, only 1 left!

0

0170

Snapper 2820427SM

WASHER, Lock, External Tooth, 3/8
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

0180

Snapper 1924940SM

WASHER, 3/8, .41 ID x .87 OD x .08 THK
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

0190

Snapper 1732576SM

PULLEY & HUB ASSEMBLY, Engine

$42.99

$

Usually ships in 2-12 days

0

0200

Snapper 2825094SM

TIE, Self Locking, .184 Wide 7.31 Long
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

0210

Snapper 1737421AYP

GUIDE, Belt

$12.99

$

In Stock, Qty 10

0

0220

Snapper 1736105SM

CLUTCH, Ogura

$387.99

$

Usually ships in 2-12 days

0

0230

Snapper 1708264SM

WASHER, Hex

$8.99

$

In Stock, Qty 5

0

0240

Snapper 1960769YP

WASHER, Belleville

$4.99

$

Usually ships in 2-12 days

0

0250

Snapper 1960649SM

CAPSCREW, Hex Head, 7/16-20 X 3 1/2, G5

$7.49

$

In Stock, only 1 left!

0

0260

Snapper 1731214SM

GASKET, Exhaust

$4.99

$

Usually ships in 2-12 days

0

0270

Snapper 2828635SM

SCREW, Taptite, 3/8-16 X 1 1/4

$4.99

$

In Stock, Qty 20+

0

0280

Snapper 94480

SCREW
(Superseded to 690341)

$5.99

$

In Stock, only 3 left!

0

0290

Snapper 1931277SM

NUT, Hex Flange Whiz Lock Small, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0300

Snapper 1728086SM

PIVOT, Hood, Powdered Metal

$5.99

$

In Stock, Qty 7

0

0310

Snapper 1931335SM

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 12

0

0320

Snapper 1738265AYP

SUPPORT, Muffler & Hood Pivot

$67.99

$

Usually ships in 2-12 days

0
