SPX 2542 (2691503-00) - Snapper LT150 Series 42" Lawn Tractor, Fab Deck, 25hp Seat Group Parts Diagram

LT150 Series 42" Lawn Tractor, Fab Deck, 25hp

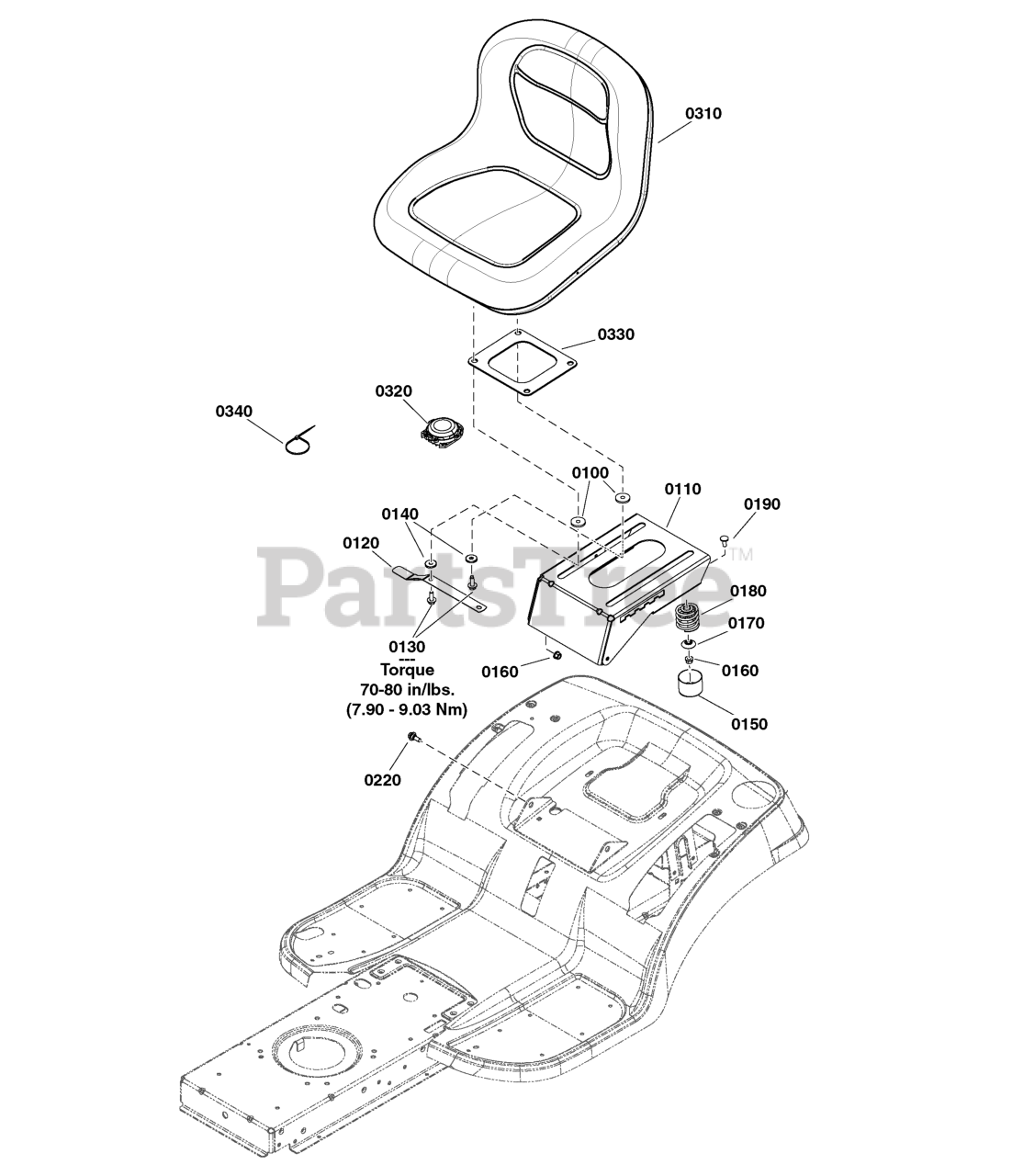

Seat Group Parts Diagram

  • Title

0100

Snapper 1731300SM

SPACER, 5/16 ID x 1-1/4 OD x 5/16"

$5.49

$

Usually ships in 2-12 days

0

0110

Snapper 1755767BMYP

SUPPORT, Seat

$152.99

$

Usually ships in 2-12 days

0

0120

Snapper 1727268BMYP

LATCH, Seat

$9.49

$

Usually ships in 2-12 days

0

0130

Snapper 1930595SM

CAPSCREW, Hex Head Flange Lock, 5/16-18 x 1-1/4

$3.99

$

In Stock, Qty 5

0

0140

Snapper 703298

WASHER, 5/16

$4.49

$

In Stock, only 2 left!

0

0150

Snapper 1704724SM

COVER, Spring, 1-1/2"

$7.99

$

In Stock, only 2 left!

0

0160

Snapper 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0170

Snapper 1709256SM

WASHER, Spring, 5/16 x 1 1/4

$5.99

$

In Stock, only 1 left!

0

0180

Snapper 1704728SM

SPRING, Compression, 2"

$9.99

$

In Stock, only 2 left!

0

0190

Snapper 703225

BOLT, Carriage, 5/16-18 x 3/4

$3.99

$

In Stock, Qty 20+

0

0220

Snapper 703851

BOLT, Shoulder, 5/16-18 x 1 1/8

$5.49

$

In Stock, only 1 left!

0

0310

Snapper 1761589YP

SEAT, 15", Vinyl, Black

$213.99

$

Usually ships in 2-12 days

0

0320

Snapper 1714771SM

SWITCH, Seat, Gray Switch, Gray Retainer

$20.99

$

In Stock, only 1 left!

0

0330

Snapper 1739571AYP

SPACER, Plate

$13.99

$

Usually ships in 2-12 days

0

0340

Snapper 703586

TIE, Cable

$4.99

$

Usually ships in 2-12 days

0
