SPX 2348 (2691350-00) - Snapper LT300 Series 48" Lawn Tractor, 23hp Wheels & Tires Group Parts Diagram

LT300 Series 48" Lawn Tractor, 23hp

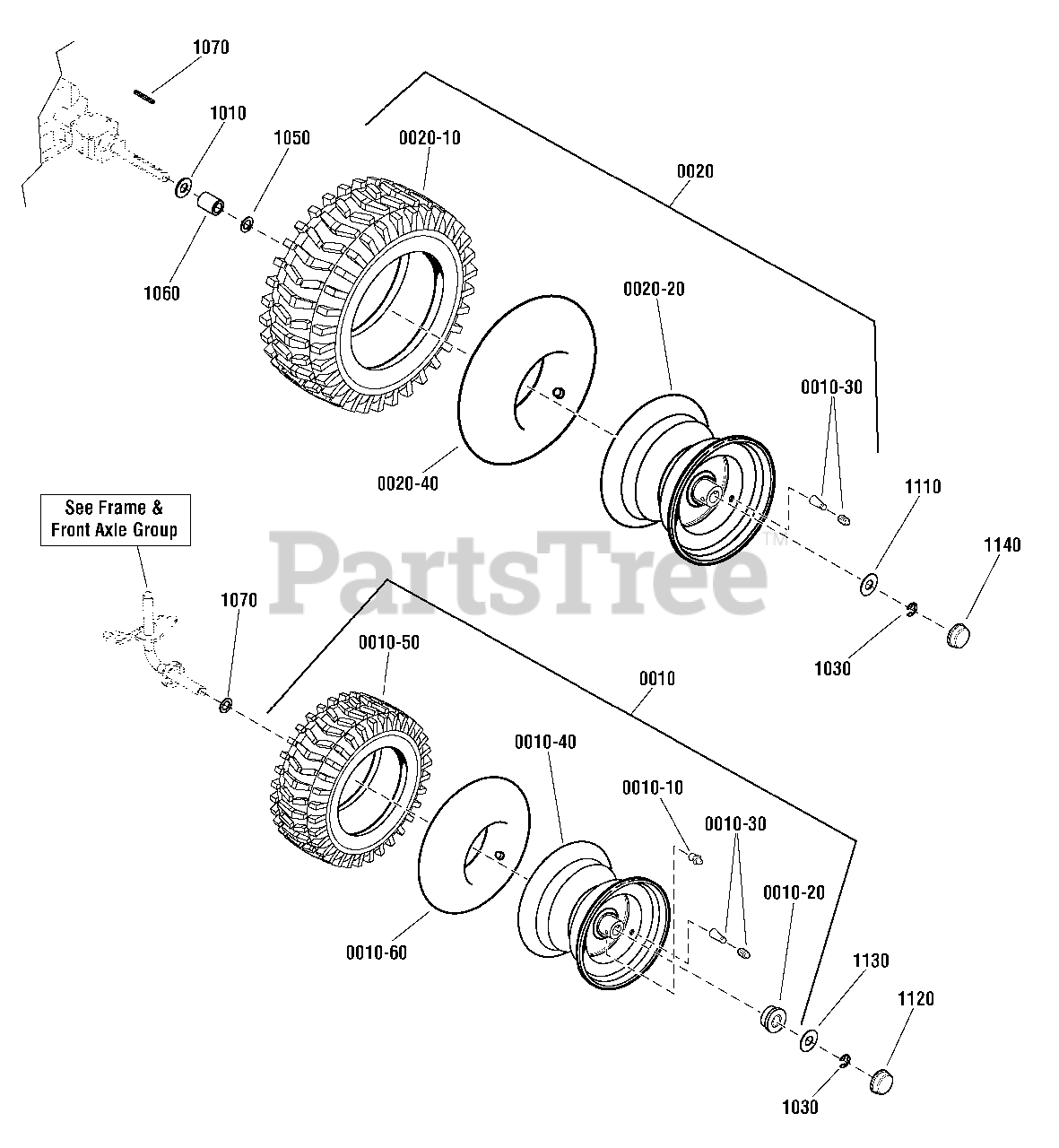

Wheels & Tires Group Parts Diagram

  • Title

0010

Snapper 1729708SM

WHEEL AND TIRE ASSEMBLY, Front, 14.4 x 6

$168.99

$

Usually ships in 2-12 days

0

0010-10

Snapper 2812808SM

FITTING, Lube, 1/4

$4.49

$

In Stock, Qty 20+

0

0010-20

Snapper 1752171YP

BUSHING, 3/4" ID x 1.38" OD Hardened (2 per wheel)

$11.99

$

In Stock, Qty 20+

0

0010-30

Snapper 2172353SM

VALVE STEM & CAP
(Superseded to 024373MA)

$

$

Not available

0010-40

Snapper 1726301SM

WHEEL & BUSHINGS ASSEMBLY, Front

$82.99

$

In Stock, only 1 left!

0

0010-50

Snapper 1731951SM

TIRE, Turf Rider, Kenda, 15 x 6 - 6

$131.99

$

In Stock, Qty 8

0

0010-60

Snapper 1664090SM

TUBE, Tire, Front

$26.99

$

In Stock, only 3 left!

0

0020

Snapper 7101569YP

WHEEL & TIRE ASSEMBLY, 22 X 9.5-12

$359.99

$

Usually ships in 2-12 days

0

0020-10

Snapper 7101568YP

TIRE, 22 x 9.50-12, 2 Ply K358

$220.99

$

Usually ships in 2-12 days

0

0020-20

Snapper 7101567YP

RIM, 12x x7 Int W/3 5 Lg Hub Silver

$176.99

$

Usually ships in 2-12 days

0

0020-40

Snapper 2164247SM

TUBE, Tire, Rear

$40.99

$

Usually ships in 2-12 days

0

1010

Snapper 2860202SM

WASHER, 3/4 x 1-5/8 OD x 1/8 Thick

$4.49

$

In Stock, Qty 20+

0

1030

Snapper 0011X3MA

E-RING, .750D-.050T

$5.49

$

In Stock, Qty 20+

0

1050

Snapper 17X160MA

WASHER, Flat, 3/4 x 1-1/4 x 16

$4.99

$

In Stock, Qty 20+

0

1060

Snapper 1730181SM

SPACER, 3/4 ID x 1-1/4 OD x 1-5/8

$9.49

$

In Stock, only 2 left!

0

1070

Snapper 021553MA

KEY, Square, 3/16

$4.99

$

In Stock, only 2 left!

0

1110

Snapper 1960160SM

WASHER, 0.750 ID x 1.60 OD x .05 Thick

$4.99

$

In Stock, Qty 11

0

1120

Snapper 1722675SM

CAP, Hub, 1-1/2 ID Gray Poly 1.3 HI

$4.49

$

In Stock, Qty 20+

0

1130

Snapper 1722717SM

WASHER, 2-1/2

$7.99

$

In Stock, Qty 20+

0

1140

Snapper 1722676SM

HUB CAP

$5.49

$

In Stock, Qty 20+

0
