SPX 2348 (2691350-00) - Snapper LT300 Series 48" Lawn Tractor, 23hp Guard Group Parts Diagram

LT300 Series 48" Lawn Tractor, 23hp

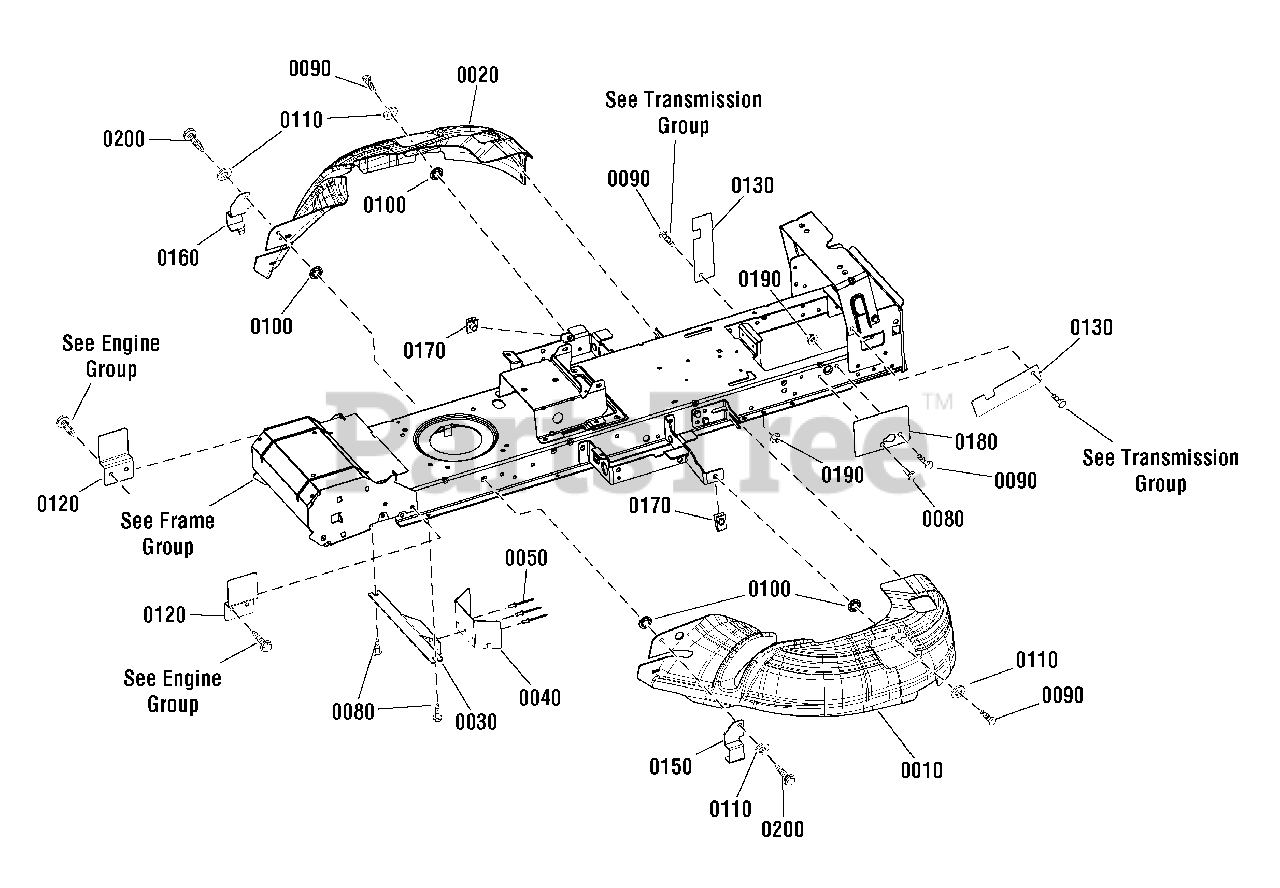

Guard Group Parts Diagram

  • Title

0010

Snapper 1759735YP

GUARD, L.H., 46"

Note: (46" Models Only)

$210.99

$

Usually ships in 2-12 days

0

0010

Snapper 1759733YP

GUARD, L.H., 48"

Note: (48" Models Only)

$279.99

$

Usually ships in 2-12 days

0

0020

Snapper 1759736YP

GUARD, R.H., 46"

Note: (46" Models Only)

$153.99

$

Usually ships in 2-12 days

0

0020

Snapper 1759734YP

GUARD, R.H., 48"

Note: (48" Models Only)

$279.99

$

Usually ships in 2-12 days

0

0030

Snapper 1759731CJYP

GUARD, Front

$39.99

$

Usually ships in 2-12 days

0

0040

Snapper 1759732CJYP

GUARD, Clutch

$20.99

$

Usually ships in 2-12 days

0

0050

Snapper 1675044SM

RIVET, Pop, 3/16

$3.99

$

In Stock, only 1 left!

0

0080

Snapper 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

Note: (Qty. 2 with Non-Suspension Models)

$4.49

$

In Stock, Qty 20+

0

0090

Snapper 703408

SCREW, Hex Head Cap, 5/16-18 X 7/8, GR5

Note: (Qty. 2 with Non-Suspension Models)

$4.99

$

In Stock, Qty 14

0

0100

Snapper 703297

RETAINER, Pushnut, 5/16 X 5/8

$3.99

$

In Stock, Qty 20+

0

0110

Snapper 703350

WASHER, 5/16, Flat SAE, Zinc/Clear

$4.49

$

In Stock, only 2 left!

0

0120

Snapper 1738798BMYP

GUARD, Front

$53.99

$

Usually ships in 2-12 days

0

0130

Snapper 1736025BMYP

GUARD, Pulley

Note: (Qty. 1 with Non-Suspension Models)

$8.49

$

Usually ships in 2-12 days

0

0150

Snapper 1759985BMYP

SUPPORT, Guarding, L.H.

$17.99

$

Usually ships in 2-12 days

0

0160

Snapper 1759989BMYP

SUPPORT, Guarding, R.H.

$16.99

$

Usually ships in 2-12 days

0

0170

Snapper 1935255SM

NUT, Speed, Lug Type, 5/16-18

$3.49

$

In Stock, only 4 left!

0

0180

Snapper 1760016CJYP

GUARD, Rear

$18.99

$

Usually ships in 2-12 days

0

0190

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

Note: (Suspension Models Only)

$5.49

$

In Stock, Qty 20+

0

0200

Snapper 704146

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1

$3.99

$

In Stock, Qty 20+

0
