LT150 Series 46" Lawn Tractor, 23hp

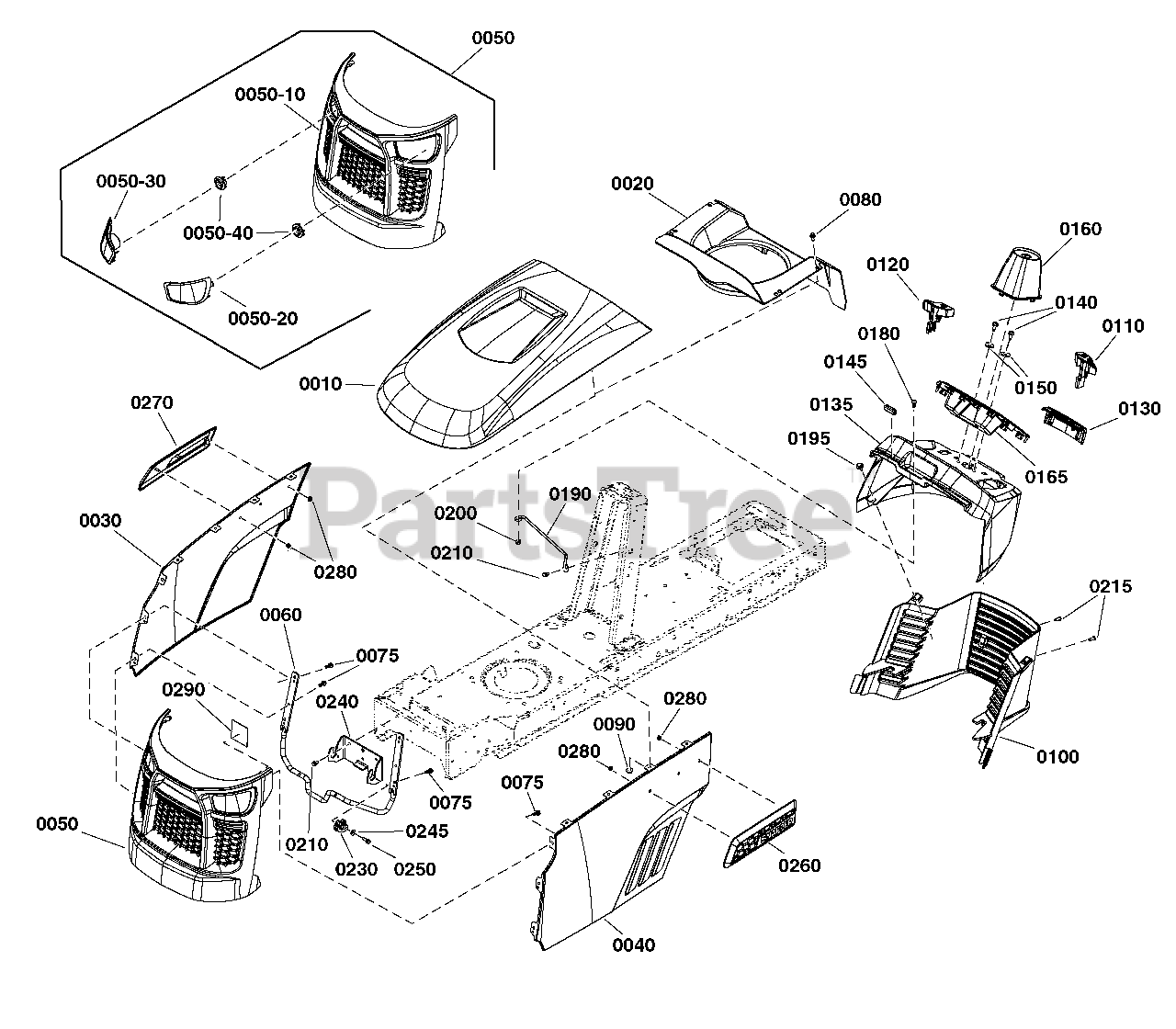

Hood, Grille & Dash Group Parts Diagram

  • Title

0010

Snapper 1728031DSM

HOOD, with Scoop

$311.99

$

In Stock, only 1 left!

0

0020

Snapper 7102326YP

AIR DUCT, Plenum

$131.99

$

In Stock, only 1 left!

0

0030

Snapper 1761214DYP

PANEL, Side RH

$201.99

$

Usually ships in 2-12 days

0

0040

Snapper 1761215DYP

PANEL, Side, LH

$201.99

$

Usually ships in 2-12 days

0

0050

Snapper 1761263YP

GRILLE, Assembly

Note: (Incl. Ref. Nos. 0050-10, 0050-20, 0050-30 & 0050-40)

$137.99

$

Usually ships in 2-12 days

0

0050-10

Snapper 1761175YP

GRILLE, Front
(Superseded to 1761263YP)

Note: (Included with Ref. No. 0050)

$137.99

$

Usually ships in 2-12 days

0

0050-20

Snapper 1761333YP

HEADLIGHT, LH

Note: (Included with Ref. No. 0050)

$29.99

$

Usually ships in 2-12 days

0

0050-30

Snapper 1761334YP

HEADLIGHT, RH

Note: (Included with Ref. No. 0050)

$33.99

$

Usually ships in 2-12 days

0

0050-40

Snapper 1760239YP

LED HEADLIGHT AND SOCKET ASSEMBLY

Note: (Included with Ref. No. 0050)

$30.99

$

Usually ships in 2-12 days

0

0060

Snapper 1761070YP

ROD, Hood Hinge

$103.99

$

Usually ships in 2-12 days

0

0075

Snapper 706369

SCREW, Hex Washer Head, 1/4-10 x 3/4

$3.99

$

Usually ships in 2-12 days

0

0080

Snapper 1960295SM

CAPSCREW, Hex Flange, Whiz Lock, 1/4-20 x 5/8

$4.49

$

In Stock, only 1 left!

0

0090

Snapper 703161

NUT, 1/4-20, Hex Flange Whiz Lock

$3.49

$

In Stock, Qty 20+

0

0100

Snapper 1761508YP

LOWER DASH ASSEMBLY

$164.99

$

In Stock, only 1 left!

0

0110

Snapper 1761401YP

KNOB, Parking Brake

$7.99

$

Usually ships in 2-12 days

0

0120

Snapper 1761402YP

KNOB, Cruise

$7.99

$

In Stock, only 2 left!

0

0130

Snapper 1761510YP

DECORATIVE TRIM

$12.99

$

Usually ships in 2-12 days

0

0135

Snapper 1761253YP

DASH, Upper

$170.99

$

Usually ships in 2-12 days

0

0140

Snapper 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0145

Snapper 1761773YP

EDGING, Rubber

$4.99

$

Usually ships in 2-12 days

0

0150

Snapper 703298

WASHER, 5/16

$4.49

$

Usually ships in 2-12 days

0

0160

Snapper 1761399YP

COVER, Steering Shaft

$23.99

$

Usually ships in 2-12 days

0

0165

Snapper 1761464YP

DASH BEZEL

$33.99

$

Usually ships in 2-12 days

0

0180

Snapper 770135

SCREW, Truss HD, 1/4-20 x 3/4

$3.99

$

In Stock, Qty 15

0

0190

Snapper 1761481YP

ROD, Dash Support

$8.49

$

Usually ships in 2-12 days

0

0195

Snapper 2860664SM

SCREW, Conical Washer, 1/4-20 x 7/8 Dog Point

$5.99

$

In Stock, only 2 left!

0

0200

Snapper 703463

NUT, Flange Nylock , 1/4-20

$4.49

$

In Stock, Qty 20+

0

0210

Snapper 704130

SCREW, Hex Head, 1/4-20 X 1/2

$3.99

$

In Stock, only 1 left!

0

0215

Snapper 1960556SM

SCREW, Pan Head Torx, Taptite, 1/4-20 x 3/4

$4.49

$

Usually ships in 2-12 days

0

0230

Snapper 1761068YP

CLIP, Hood Hinge

$6.49

$

Usually ships in 2-12 days

0

0240

Snapper 1761212CJYP

BRACKET, Hood Hinge

$21.99

$

Usually ships in 2-12 days

0

0245

Snapper 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 20+

0

0250

Snapper 703466

SCREW, Self Tapping, 1/4-20 x 3/4, GR5

$3.99

$

In Stock, Qty 10

0

0260

Snapper 1761342YP

BADGE, Snapper, LH

$20.99

$

Usually ships in 2-12 days

0

0270

Snapper 1761343YP

BADGE, Snapper, RH

$18.99

$

Usually ships in 2-12 days

0

0280

Snapper 189164GS

PALNUT, 3/16

$3.99

$

Usually ships in 2-12 days

0

0290

Snapper 1761818YP

INSULATION, Thermal

$8.99

$

Usually ships in 2-12 days

0
