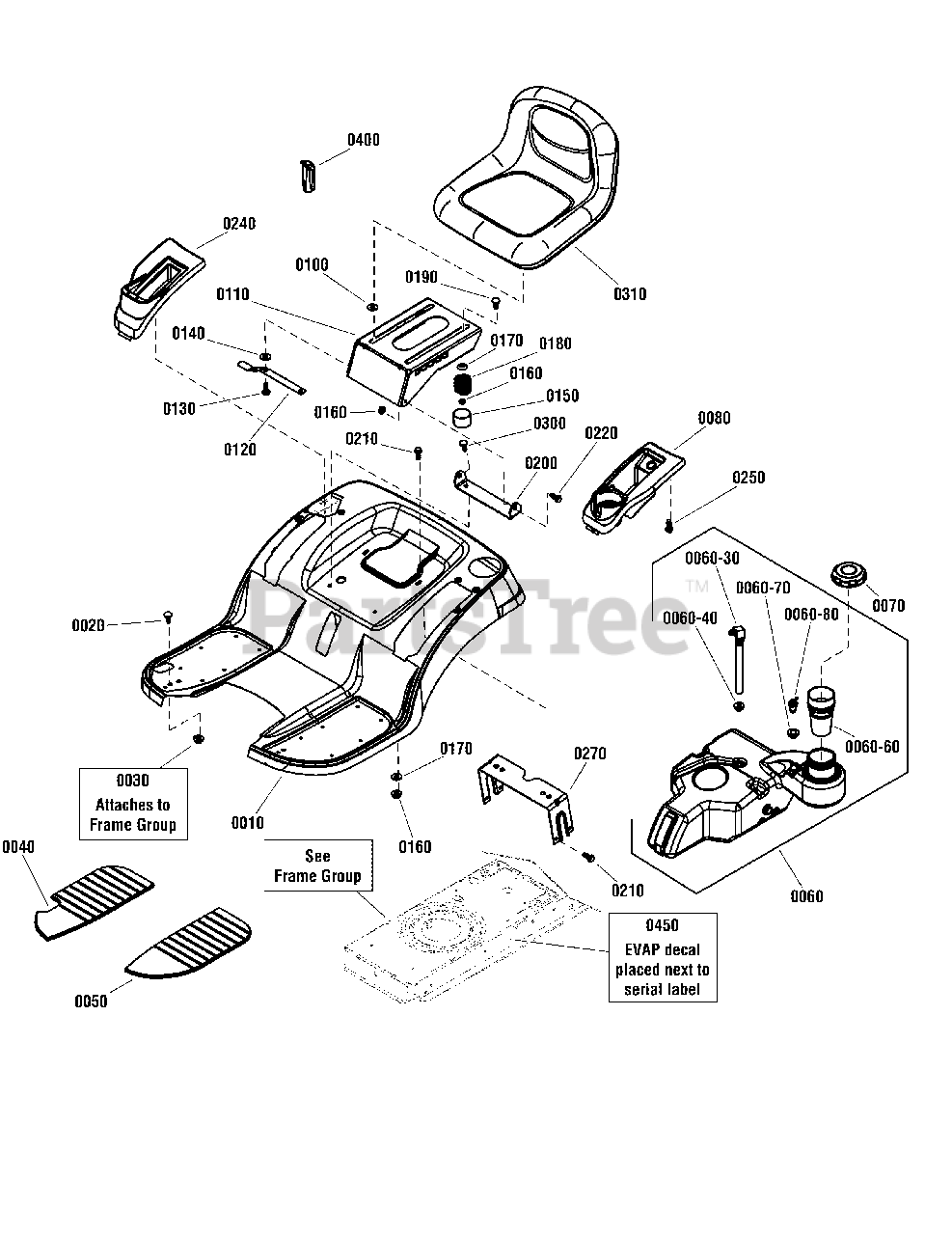

SPX 2246 (2691344-00) - Snapper LT150 Series 46" Lawn Tractor, 22hp Seat Deck & Fuel Tank Group Parts Diagram

LT150 Series 46" Lawn Tractor, 22hp

Seat Deck & Fuel Tank Group Parts Diagram

  • Title

0010

Snapper 1727264DSM

DECK, Seat

$542.99

$

Usually ships in 2-12 days

0

0020

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 20+

0

0030

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0040

Snapper 1728007SM

PAD, Footrest, RH, Black Vinyl

$20.99

$

In Stock, only 1 left!

0

0050

Snapper 1728006SM

PAD, Footrest, LH, Black Vinyl

$21.99

$

In Stock, only 2 left!

0

0060

Snapper 1751226YP

TANK, Fuel, W/O Fuel Sender

$311.99

$

Usually ships in 2-12 days

0

0060-30

Snapper 1736609YP

FITTING & HOSE ASSEMBLY, Fuel Tank

$24.99

$

Usually ships in 2-12 days

0

0060-40

Snapper 1654930SM

BUSHING, Fuel Tank, Red Rubber

$7.99

$

In Stock, Qty 20+

0

0060-50

Snapper 1751624YP

NECK, Fuel Filler (Not Shown)

$

$

Currently unavailable

0060-60

DROP TUBE

$

$

Not available

0060-70

Snapper 799624

GROMMET, Tank, .74" ID, .94" OD

$8.99

$

In Stock, Qty 18

0

0060-80

Snapper 7104638YP

ASSEMBLY, Remote Vent, No Valve

$

$

Not available

0070

Snapper 1759036YP

CAP, Fuel, 3 1/2"
(Superseded to 1761224YP)

$48.99

$

In Stock, Qty 7

0

0080

Snapper 1739015YP

POD, L.H., Grey

$34.99

$

Usually ships in 2-12 days

0

0100

Snapper 1731300YP

SPACER, 0.32 ID x 1-1/2 OD x 3/10 THK PM, CZ

$

$

Currently unavailable

0110

Snapper 1755767BMYP

SUPPORT, Seat Mount

$152.99

$

Usually ships in 2-12 days

0

0120

Snapper 1727268BMYP

LATCH, Seat

$9.49

$

Usually ships in 2-12 days

0

0130

Snapper 1930595SM

SCREW, 5/16-18 x 1-1/4, Hex Cap Flange Whiz Lock, G5, Blk

$3.99

$

In Stock, Qty 5

0

0140

Snapper 703298

WASHER, 5/16

$4.49

$

In Stock, only 1 left!

0

0150

Snapper 1704724SM

COVER, Spring 2 Id X 1-1/2, Black Vinyl

$7.99

$

In Stock, only 2 left!

0

0160

Snapper 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0170

Snapper 1709256SM

WASHER, Spring, 5/16 x 1 1/4

$5.99

$

In Stock, only 1 left!

0

0180

Snapper 1704728SM

SPRING, Compression, 19/32 x 2

$9.99

$

In Stock, only 2 left!

0

0190

Snapper 703225

BOLT, Carriage, 5/16-18 x 3/4

$3.99

$

In Stock, Qty 20+

0

0200

Snapper 1727266ASM

PIVOT, Seat

$10.99

$

In Stock, only 1 left!

0

0210

Snapper 703949

SCREW, 5/16-18 X .625, Hex Washer Head, Thread Roll, Zinc/Clear

$3.99

$

In Stock, Qty 5

0

0220

Snapper 703851

BOLT, Shoulder, 5/16-18 x 1 1/8

$5.49

$

In Stock, only 1 left!

0

0240

Snapper 1739016YP

POD, R.H., Grey

$30.99

$

Usually ships in 2-12 days

0

0250

Snapper 1960536SM

SCREW, .25 X .50, Hex Wshr HD Plastic

$4.99

$

Usually ships in 2-12 days

0

0270

Snapper 1731310SM

SUPPORT, Seat Deck

$36.99

$

Usually ships in 2-12 days

0

0300

Snapper 704065

BOLT, Carriage, 5/16-18 X 7/8

$4.49

$

In Stock, Qty 5

0

0310

Snapper 1754213YP

SEAT, 15 Back (Black)
(Superseded to 84003801)

$372.99

$

Usually ships in 2-12 days

0

0400

Snapper 1722302SM

GRIP, Black Vinyl For .30 X 1.00 Handle

$8.49

$

In Stock, Qty 10

0

0440

Snapper 703586

TIE, 7, Self Locking (Not Shown)

$4.99

$

Usually ships in 2-12 days

0

0450

Snapper 708947

DECAL, EPA Cert.

$

$

Currently unavailable
