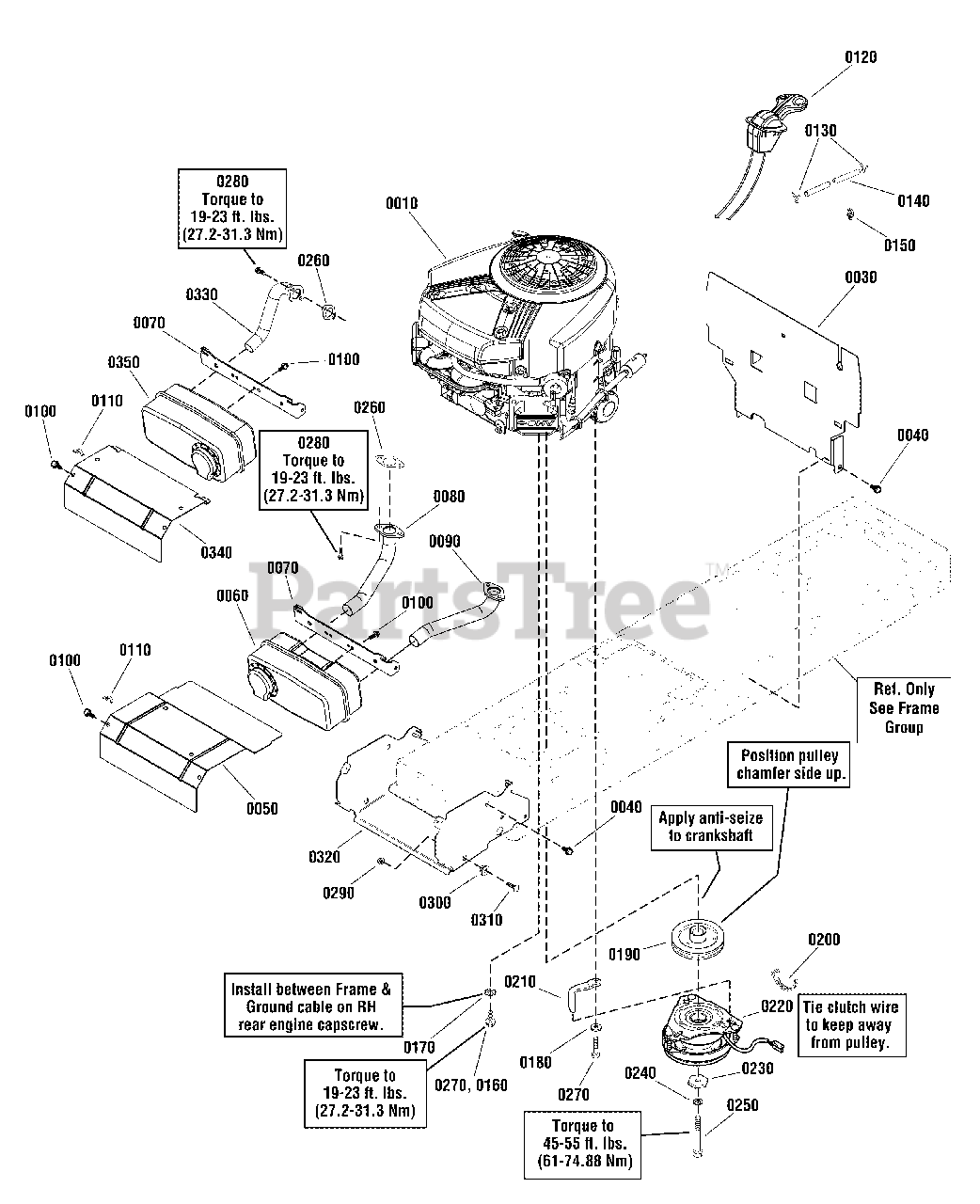

SPX 2246 (2691021-00) - Snapper LT150 Series 46" Lawn Tractor, 22hp Engine Group - 20, 22 & 23HP Briggs & Stratton EFM Twin Professional Series Parts Diagram

LT150 Series 46" Lawn Tractor, 22hp

Engine Group - 20, 22 & 23HP Briggs & Stratton EFM Twin Professional Series Parts Diagram

  • Title

0010

Snapper 33M677-0110-G5

* ENGINE, 20 HP Pro Series, Twin

Note: (Engine Model: 33M677-0110-G5, 42" Models Only)

$

$

Not available

0010

Snapper 40H777-0151-G5

* ENGINE, 23 Gross HP Briggs & Stratton Pro Series, Twin

Note: (Engine Model: 40H777-0151-G5, 46" Models Only)

$

$

Not available

0010

Snapper 44L777-5110-G5

* ENGINE, 23 Gross HP Briggs & Stratton Pro Series, VS Twin

Note: (Engine Model: 44L777-5110-G5, 52" Models Only)

$

$

Not available

0030

Snapper 1738380A

HEAT SHIELD, Engine
(Superseded to 1738380AYP)

$51.99

$

Usually ships in 2-12 days

0

0040

Snapper 1930601

CAPSCREW, Hex Flange Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

0050

Snapper 1727997A

SHIELD, Heat B&S Twin 20GA
(Superseded to 1727997ASM)

Note: 22 & 23HP Only

$33.99

$

Usually ships in 2-12 days

0

0060

Snapper 1727994

MUFFLER, B&S Twin Regent 2006
(Superseded to 1727994SM)

Note: 22 & 23HP Only

$98.99

$

Usually ships in 2-12 days

0

0070

Snapper 1727976A

SUPPORT, Heat Shield, Muffler
(Superseded to 1727976BMYP)

$14.99

$

Usually ships in 2-12 days

0

0080

Snapper 1727979

PIPE, Exhaust With Flange, RH, 1-1/4OD
(Superseded to 1727979SM)

Note: 22 & 23HP Only

$37.99

$

In Stock, only 1 left!

0

0090

Snapper 1727980

PIPE, Exhaust With Flange, LH, 1-1/4OD
(Superseded to 1727980SM)

Note: 22 & 23HP Only

$37.99

$

In Stock, only 2 left!

0

0100

Snapper 1925003

SCREW-HEX WSHR HD TAPTT 1/4-20X0.500 BLK
(Superseded to 704130)

$3.99

$

In Stock, Qty 11

0

0110

Snapper 2834683

CLIP, Wire, 1/8 Dia.
(Superseded to 703176)

$3.49

$

Usually ships in 2-12 days

0

0120

Snapper 1738794

CONTROL, Throttle (Choke-A-Matic)
(Superseded to 1738794YP)

$52.99

$

Usually ships in 2-12 days

0

0120

Snapper 1750217

Control, Throttle, Choke-A-Matic, Twin
(Superseded to 1750217YP)

Note: 22 & 23HP Only

$65.99

$

In Stock, only 1 left!

0

0130

Snapper 93053

Clamp, Hose (Green)
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

0140

Snapper 1734993

HOSE, Fuel, Low Perm, 1/4ID x 1/2OD x 55.5 Lg
(Superseded to 845503)

$35.99

$

Usually ships in 2-12 days

0

0150

Snapper 1730268

CLIP, Hose, Plastic Push In, 1/2 Dia.
(Superseded to 1730268SM)

$3.99

$

Usually ships in 2-12 days

0

0160

Snapper 2827187

CAPSCREW, Hex Washer Head, Taptite, 3/8-16 x 1
(Superseded to 1927187SM)

$4.49

$

In Stock, only 4 left!

0

0170

Snapper 2820427

WASHER, Locking, External Teeth, 3/8
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

0180

Snapper 1924940

Flatwasher, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

0190

Snapper 1732576

PULLEY & HUB ASSEMBLY, Engine
(Superseded to 1732576SM)

$42.99

$

Usually ships in 2-12 days

0

0200

Snapper 2825094

TIE, Self Locking, .184 Wide 7.31 Long
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

0210

Snapper 1737421A

GUIDE, Belt Retainer, Clutch
(Superseded to 1737421AYP)

$12.99

$

In Stock, Qty 10

0

0220

Snapper 1736105

CLUTCH, Electric, Mid Ogura
(Superseded to 1736105SM)

$387.99

$

Usually ships in 2-12 days

0

0230

Snapper 1708264

WASHER, Hex, .453 I.D. x 1-1/2"
(Superseded to 1708264SM)

$8.99

$

In Stock, Qty 5

0

0240

Snapper 1960769YP

WASHER, Belleville

$4.99

$

Usually ships in 2-12 days

0

0250

Snapper 1960649

CAPSCREW, Hex Head, 7/16-20 x 3-1/2, 20HP
(Superseded to 1960649SM)

$7.49

$

In Stock, only 1 left!

0

0260

Snapper 1731214

GASKET, Exhaust B&S Reg (No Chre) 273485
(Superseded to 1731214SM)

$4.99

$

Usually ships in 2-12 days

0

0270

Snapper 2828635

CAPSCREW, Hex Washer Head, Taptite, 3/8-16 x 1-1/4
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

0280

Snapper 94480

Screw, Sem Hex Head (Used On Electric Start Engines)
(Superseded to 690341)

$5.99

$

In Stock, only 3 left!

0

0290

Snapper 1931277

NUT, Hex Flange Whiz Lock, 5/16-18 all Black
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0300

Snapper 1728086

PIVOT, Hood
(Superseded to 1728086SM)

$5.99

$

In Stock, Qty 7

0

0310

Snapper 1931335

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 12

0

0320

Snapper 1738265A

SUPPORT, Muffler & Hood Pivot
(Superseded to 1738265AYP)

$67.99

$

Usually ships in 2-12 days

0

0330

Snapper 1728959

PIPE, Exhaust, W/ Flange, 1-1/8OD, Single
(Superseded to 1728959SM)

Note: 20HP Only

$34.99

$

Usually ships in 2-12 days

0

0340

Snapper 1727996A

SHIELD, Heat Single Cycle 20GA
(Superseded to 7300918ASM)

Note: 20HP Only

$48.99

$

Usually ships in 2-12 days

0

0350

Snapper 1727993

MUFFLER, B&S Single
(Superseded to 1727993SM)

Note: 20HP Only

$93.99

$

In Stock, only 1 left!

0
