SPX 2246 (2691021-00) - Snapper LT150 Series 46" Lawn Tractor, 22hp Electrical Group Parts Diagram

LT150 Series 46" Lawn Tractor, 22hp

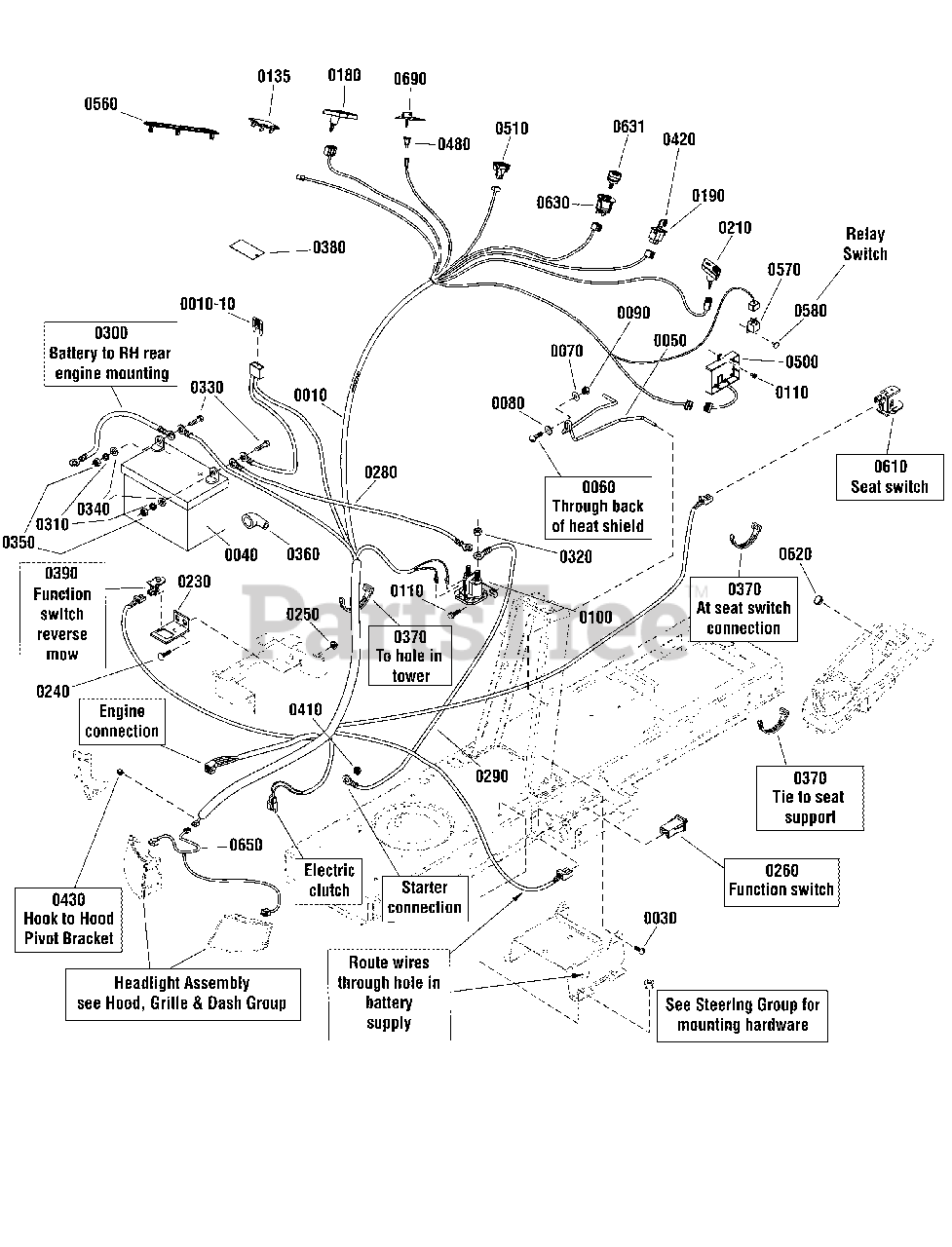

Electrical Group Parts Diagram

  • Title

0010

Snapper 1753020

WIRING HARNESS
(Superseded to 1753020YP)

Note: (42" Models Only)

$95.99

$

Usually ships in 2-12 days

0

0010

Snapper 1738984

WIRING HARNESS
(Superseded to 1738984YP)

Note: (46 & 52" Models Only)

$

$

Not available

0010-10

* FUSE, Mini, 20 Amp

Note: (Included with Ref. No. 0110)

$

$

Not available

0030

Snapper 703949

SCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8

$3.99

$

In Stock, Qty 5

0

0040

BATTERY, 12 Volt, 230 CCA

$

$

Not available

0050

Snapper 1730007SM

HOLD DOWN, Battery

$27.99

$

Usually ships in 2-12 days

0

0060

Snapper 1931318SM

BOLT, Carriage, 1/4-20 x 7/8, G5

$4.49

$

In Stock, only 2 left!

0

0070

Snapper 1960353SM

WASHER, 1/4 x 27/32, Flat, BZ
(Superseded to 703229)

$4.49

$

In Stock, Qty 8

0

0080

Snapper 703826

RETAINER, 1/4", Pushnut

$3.49

$

In Stock, Qty 20+

0

0090

Snapper 703232

NUT, 1/4-20, Nylock, GR A, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

0100

Snapper 1755381YP

SOLENOID, 12V, L-Bracket, 2-Spade

$24.99

$

In Stock, Qty 20+

0

0110

Snapper 704130

SCREW, 1/4-20 X .500, Hex HD, Self-Tap, Zinc/Clear

$3.99

$

In Stock, Qty 9

0

0135

Snapper 1722611SM

PLUG, Hole 27/32 x 1-3/4

$6.99

$

In Stock, only 1 left!

0

0180

Snapper 1738982YP

SWITCH, PTO

$43.99

$

In Stock, only 3 left!

0

0190

Snapper 1726556SM

SWITCH, RMO, Module Only
(Superseded to 1761897YP)

$30.99

$

Usually ships in 2-12 days

0

0210

Snapper 1738983YP

SWITCH, Light

$39.99

$

Usually ships in 2-12 days

0

0230

Snapper 1728026ASM

SUPPORT, RMO Switch

$13.99

$

Usually ships in 2-12 days

0

0240

Snapper 703225

BOLT, Carriage, 5/16-18 x 3/4

$3.99

$

In Stock, Qty 20+

0

0250

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0260

Snapper 7022886YP

SWITCH, DP, NO/NC, Snap-In

$14.99

$

In Stock, Qty 20+

0

0280

Snapper 1716549SM

CABLE, Two Ring, #6 x 10
(Superseded to 1752685YP)

$11.99

$

In Stock, only 2 left!

0

0290

Snapper 1721830SM

CABLE,#6 x 25

$19.99

$

Usually ships in 2-12 days

0

0300

Snapper 1713163SM

CABLE, # 6 x 26

$24.99

$

Usually ships in 2-12 days

0

0310

Snapper 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

0320

Snapper 2860750SM

NUT, Hex, Keps, 5/16-24

$2.99

$

Usually ships in 2-12 days

0

0330

Snapper 703925

CAPSCREW, Hex Head, 1/4-20 x 3/4, G5

$4.49

$

In Stock, Qty 7

0

0340

Snapper 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 20+

0

0350

Snapper 2816622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

0360

Snapper 1677296SM

BOOT, Insulator Battery Terminal, Red

$6.49

$

In Stock, Qty 11

0

0370

Snapper 703586

TIE, Self Locking, 7-5/16

$4.99

$

Usually ships in 2-12 days

0

0380

Snapper 1725403YP

TAG, Battery Charging Warranty

$10.99

$

Usually ships in 2-12 days

0

0390

Snapper 1732004SM

SWITCH, Push Button, NO, Black

$8.99

$

In Stock, Qty 20+

0

0410

Snapper 703233

NUT, Hex Flange Whiz Lock, 1/4-20

$4.49

$

In Stock, Qty 6

0

0420

Snapper 1726557SM

KEY, No Mow Module (Yellow)

$5.49

$

In Stock, Qty 20+

0

0430

Snapper 2172434SM

CLIP, Panel

$4.99

$

Usually ships in 2-12 days

0

0480

Snapper 790827

SWITCH, Starter (Without Key, see 0690 below)
(Superseded to 791944)

Note: (46 & 52" Models Only)

$14.99

$

In Stock, only 2 left!

0

0500

Snapper 1739020YP

PANEL, Control, Push Button
(Superseded to 1688084)

Note: (46 & 52" Models Only)

$164.99

$

In Stock, Qty 16

0

0510

Snapper 1739277YP

SWITCH ASSEMBLY, Push Button
(Superseded to 1753667YP)

Note: (46 & 52" Models Only)

$43.99

$

In Stock, only 1 left!

0

0560

Snapper 1752934YP

PLUG, Dash, No Hourmeter

$4.99

$

Usually ships in 2-12 days

0

0570

Snapper 1726829SM

RELAY, Single Pole, Double Throw

Note: (46 & 52" Models Only)

$15.99

$

In Stock, only 1 left!

0

0580

Snapper 1704351SM

FASTENER, Panel

Note: (46 & 52" Models Only)

$4.99

$

In Stock, only 4 left!

0

0610

Snapper 7023354YP

SWITCH, Seat, Push Button (NC)

$12.99

$

In Stock, Qty 20+

0

0620

Snapper 1732007SM

PLUG, Hole, 7/8 Dia.

$4.49

$

Usually ships in 2-12 days

0

0630

Snapper 7600215YP

SWITCH, Ignition (Without key) (Key Blister Pack #1750464)

Note: (Used on 2691020)

$64.99

$

In Stock, Qty 7

0

0631

Snapper 1750464YP

KEY, Ignition Switch, Trombetta Snap-in Switch (Blister Pack contains 2 keys)

Note: (Used on 2691020)

$22.99

$

Usually ships in 2-12 days

0

0650

Snapper 1751941YP

HARNESS, Headlight, Led Lights

Note: (Used on 2691020)

$24.99

$

Usually ships in 2-12 days

0

0690

Snapper 1753240YP

PLUG, Starter Insert

Note: (42" Models Only)

$4.49

$

Usually ships in 2-12 days

0

0690

Snapper 1739029YP

KEY, Starter Insert Blister Pack, US (Includes #1738614)

Note: (46 & 52" Models Only)

$23.99

$

Usually ships in 2-12 days

0

0690

Snapper 1737837YP

KEY, Starter Insert Blister Pack, Canada/CE (Includes #1739534)

Note: (46 & 52" Models Only)

$21.99

$

In Stock, only 1 left!

0
