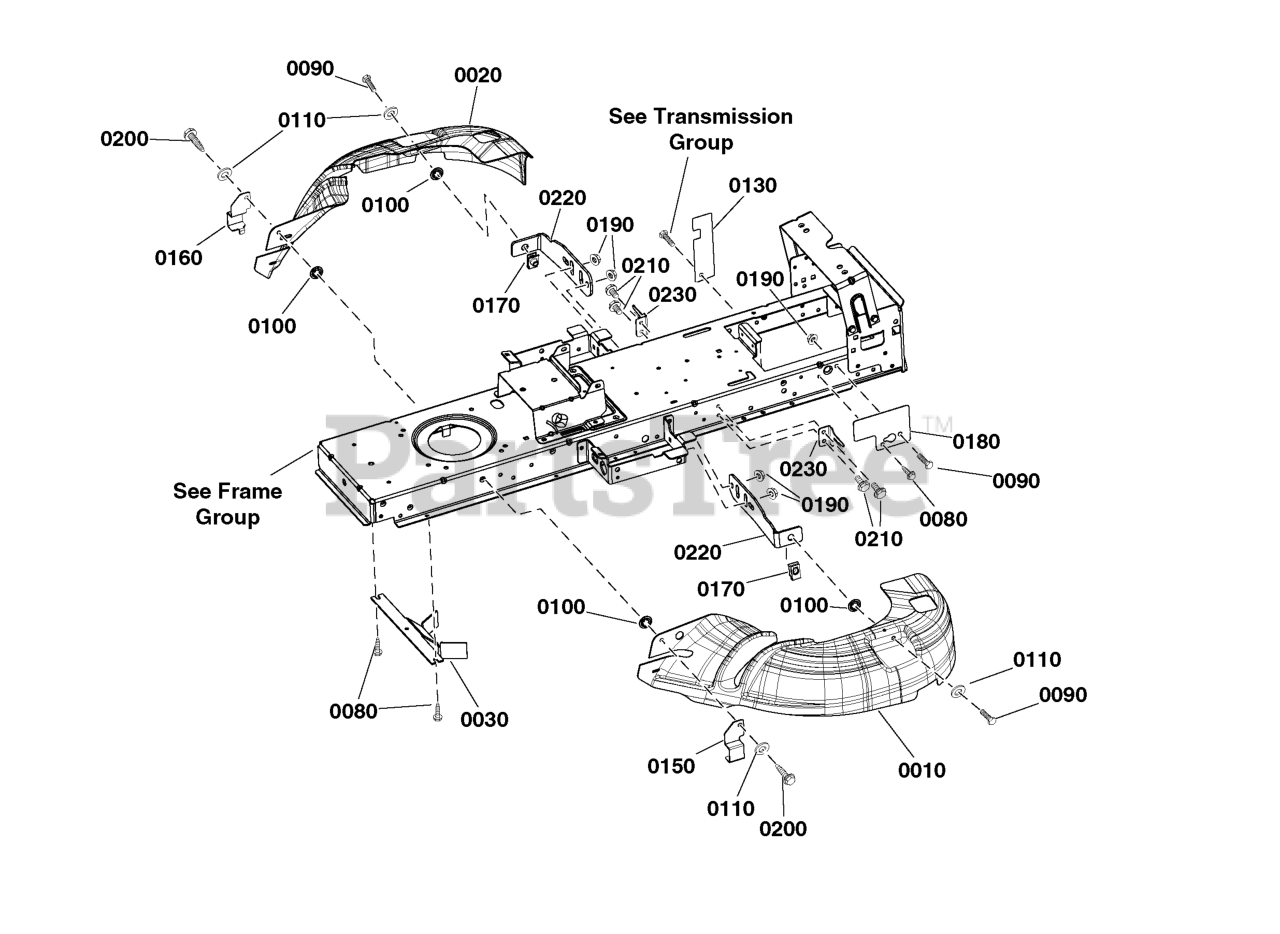

SPX 210 (2691701-01) - Snapper LT200 Series 46"/117cm Lawn Tractor, 17.5hp EU Guard Group Parts Diagram

LT200 Series 46"/117cm Lawn Tractor, 17.5hp

EU Guard Group Parts Diagram

  • Title

0010

Snapper 1759735YP

GUARD, L.H., 46"

$210.99

$

Usually ships in 2-12 days

0

0020

Snapper 1759736YP

GUARD, R.H., 46"

$153.99

$

Usually ships in 2-12 days

0

0030

Snapper 84002238

GUARD, Clutch, Front

$45.99

$

Usually ships in 2-12 days

0

0080

Snapper 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0090

Snapper 703408

SCREW, Hex Head Cap, 5/16-18 X 7/8, GR5

$4.99

$

In Stock, Qty 14

0

0100

Snapper 703297

RETAINER, 5/16 X 5/8

$3.99

$

In Stock, Qty 20+

0

0110

Snapper 703350

WASHER, 5/16, Flat SAE, Zinc/Clear

$4.49

$

In Stock, only 3 left!

0

0130

Snapper 1736025BMYP

GUARD, Pulley, Rear

$8.49

$

Usually ships in 2-12 days

0

0150

Snapper 1759985BMYP

SUPPORT, Guarding, L.H.

$17.99

$

Usually ships in 2-12 days

0

0160

Snapper 1759989BMYP

SUPPORT, Guarding, R.H.

$16.99

$

Usually ships in 2-12 days

0

0170

Snapper 1935255SM

NUT, Speed, Lug Type, 5/16-18

$3.49

$

In Stock, only 3 left!

0

0180

Snapper 1760016CJYP

GUARD, Rear

$18.99

$

Usually ships in 2-12 days

0

0190

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0200

Snapper 704146

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1

$3.99

$

In Stock, Qty 20+

0

0210

Snapper 703985

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1/2

$4.49

$

In Stock, only 3 left!

0

0220

Snapper 1759729CJYP

SUPPORT

$11.99

$

Usually ships in 2-12 days

0

0230

Snapper 84002241

SUPPORT, Frame, Guarding

$9.49

$

Usually ships in 2-12 days

0

0240

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 16

0
