SPX 2042 (2691020-00) - Snapper LT150 Series 42" Lawn Tractor, 20hp 42" Mower Deck - Housing, Arbor & Blades Group Parts Diagram

LT150 Series 42" Lawn Tractor, 20hp

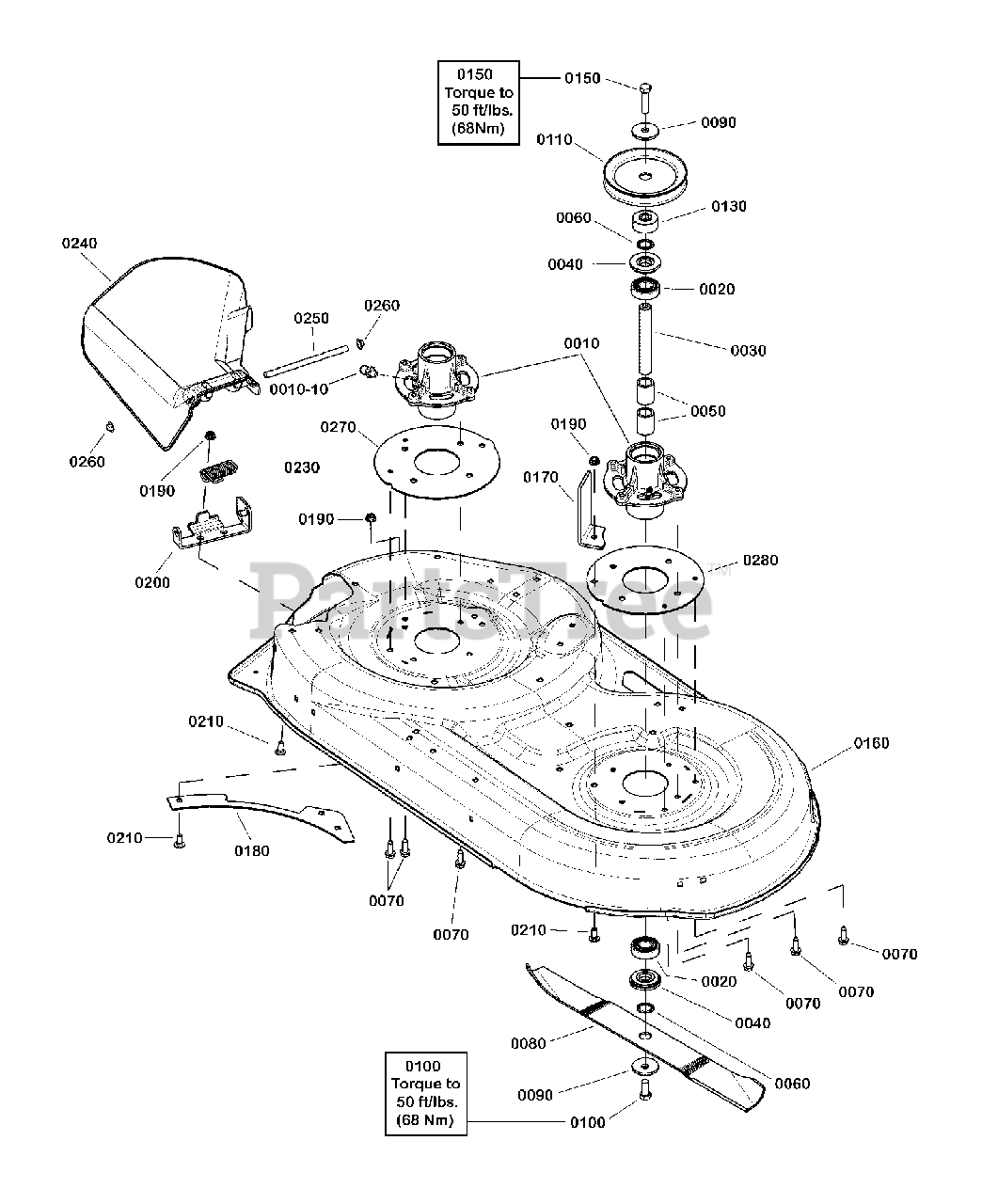

42" Mower Deck - Housing, Arbor & Blades Group Parts Diagram

  • Title

0010

Snapper 1735573

HOUSING, Spindle
(Superseded to 1735573YP)

$43.99

$

In Stock, Qty 11

0

0010-10

Snapper 1704314

FITTING, Lubrication
(Superseded to 1704314SM)

$4.99

$

In Stock, Qty 20+

0

0020

Snapper 1735399

BEARING, Ball, 20mm
(Superseded to 1735399YP)

$9.99

$

In Stock, Qty 20+

0

0030

Snapper 1735326

SHAFT,Spindle, 20mm Dia. x 134.6mm
(Superseded to 1735326YP)

$27.99

$

In Stock, only 2 left!

0

0040

Snapper 1735323

SHIELD, Arbor, 2-1/16 OD
(Superseded to 1735323YP)

$6.99

$

In Stock, only 3 left!

0

0050

Snapper 1735328

SPACER, Bearing
(Superseded to 1735328YP)

$6.49

$

In Stock, only 1 left!

0

0060

Snapper 1960766

RING, Self Locking
(Superseded to 1960766YP)

$4.49

$

In Stock, Qty 20+

0

0070

Snapper 1960373

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 1
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

0080

Snapper 1737816

BLADE, 42" Mower, 21.16" Long
(Superseded to 1737816BMYP)

$27.99

$

In Stock, Qty 20+

0

0090

Snapper 1656916

WASHER, Spring, 15/32 ID x 1-3/4 OD
(Superseded to 1656916SM)

$7.49

$

In Stock, Qty 20+

0

0100

Snapper 1920676

CAPSCREW, Hex Head, 7/16-14 x 1, G5
(Superseded to 1920676SM)

$5.49

$

In Stock, Qty 16

0

0110

Snapper 1737835

PULLEY, V, Deep Groove
(Superseded to 1737835YP)

$20.99

$

In Stock, only 1 left!

0

0130

Snapper 1737457

SPACER, Pulley
(Superseded to 1737457YP)

$10.99

$

In Stock, only 1 left!

0

0150

Snapper 1923027

CAPSCREW, Hex Head, 7/16-14 x 1-3/4, G5
(Superseded to 703171)

$3.99

$

In Stock, Qty 6

0

0160

Snapper 1736504D

HOUSING, 42" Mower Deck
(Superseded to 1687779YP)

$461.99

$

Usually ships in 2-12 days

0

0170

Snapper 1737845A

UPSTOP
(Superseded to 1737845AYP)

$32.99

$

Usually ships in 2-12 days

0

0180

Snapper 721083A

PLATE, Rear
(Superseded to 092426E701MA)

$10.99

$

In Stock, only 1 left!

0

0190

Snapper 1931277

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0200

Snapper 721369A

BRACKET, Hinge
(Superseded to 094956E701MA)

$22.99

$

Usually ships in 2-12 days

0

0210

Snapper 1931333

BOLT, Carriage, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0230

Snapper 720154

SPRING, Torsion
(Superseded to 0166X4MA)

$6.49

$

In Stock, Qty 9

0

0240

Snapper 721339

DEFLECTOR & SUPPORT ASSEMBLY, Chute
(Superseded to 094707MA)

$108.99

$

In Stock, only 3 left!

0

0250

Snapper 721371

ROD, DEFLECTOR
(Superseded to 094957ZMA)

$10.99

$

In Stock, only 1 left!

0

0260

Snapper 1960093

NUT, Push Pal, 3/8
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

0270

Snapper 1750457BM

PLATE, Spindle RH
(Superseded to 1750457BMYP)

$28.99

$

In Stock, only 1 left!

0

0280

Snapper 1750458BM

PLATE, Spindle LH
(Superseded to 1750458BMYP)

$28.99

$

Usually ships in 2-12 days

0
