SPX 160 (2691700-00) - Snapper LT150 Series 42"/107cm Lawn Tractor, 17.5hp 42" (107cm) Mower Deck - Guard Group Parts Diagram
LT150 Series 42"/107cm Lawn Tractor, 17.5hp

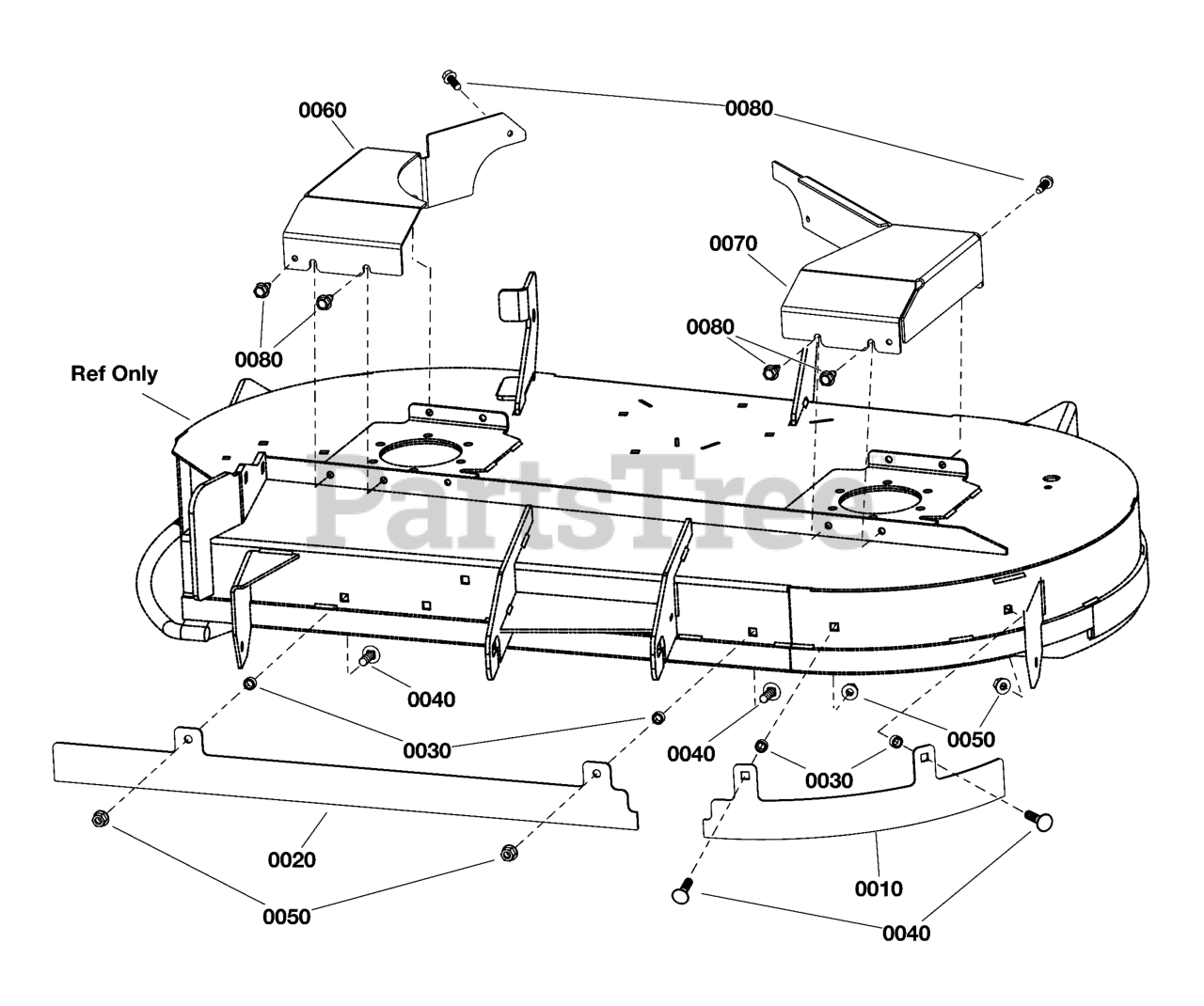

42" (107cm) Mower Deck - Guard Group Parts Diagram
Snapper 1760059DYP
BAFFLE, Front, LH
$45.99
$
Usually ships in 2-12 days
Snapper 1759763DYP
BRACKET, Guarding Cover
$39.99
$
Usually ships in 2-12 days
Snapper 5102463YP
SPACER, .33 X .50 X .25, PM, CZ
$5.49
$
Usually ships in 2-12 days
Snapper 704065
BOLT, Carriage, 5/16-18 X 7/8
$4.49
$
In Stock, Qty 5
Snapper 703115
NUT, Flange Nylock, 5/16-18
$3.49
$
In Stock, Qty 20+
Snapper 84004035
GUARD, Belt
$53.99
$
Usually ships in 2-12 days
Snapper 84004036
GUARD, Belt
$71.99
$
Usually ships in 2-12 days
Snapper 703228
SCREW, Washer Head Taptite, 5/16-18 X 3/4
$4.49
$
In Stock, Qty 20+
