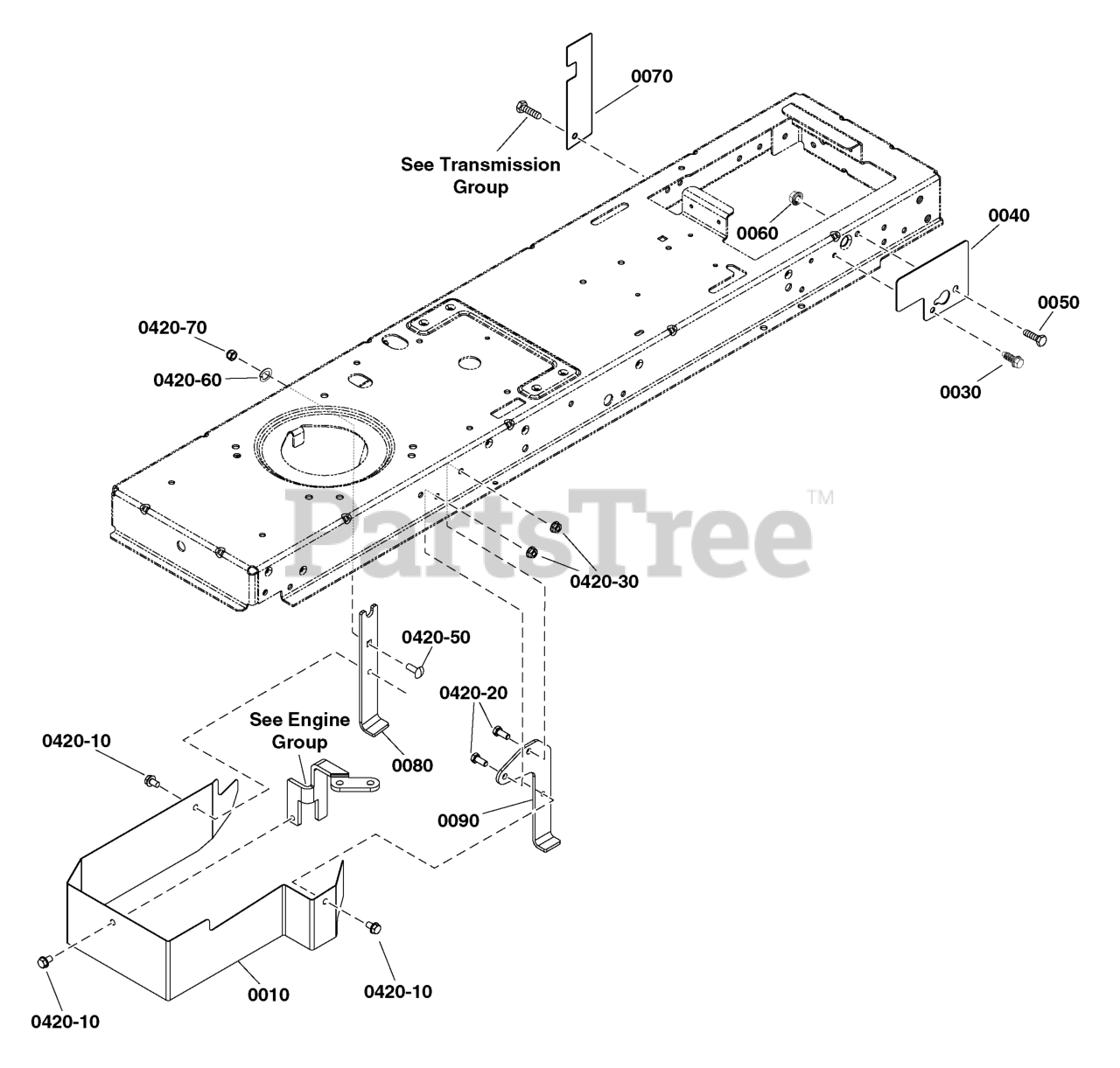

SPX 110 (2692023-00) - Snapper LT150 Series 42"/107cm Lawn Tractor, 17.5hp EU Guard Group Parts Diagram

LT150 Series 42"/107cm Lawn Tractor, 17.5hp

EU Guard Group Parts Diagram

  • Title

0010

Snapper 84002808

GUARD, Pulley

$83.99

$

Usually ships in 2-12 days

0

0030

Snapper 703949

SCREW, Washer Head, 5/16-18 X 5/8

$3.99

$

In Stock, only 3 left!

0

0040

Snapper 1760016CJYP

GUARD, Rear

$18.99

$

Usually ships in 2-12 days

0

0050

Snapper 704287

CAPSCREW, Hex Head, 5/16-18 x 3/4, GR5

$3.99

$

In Stock, Qty 8

0

0060

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0070

Snapper 1736025BMYP

GUARD, Pulley, Rear

$8.49

$

Usually ships in 2-12 days

0

0080

Snapper 84002809

UPSTOP, RH

$12.99

$

Usually ships in 2-12 days

0

0090

Snapper 84002810

UPSTOP, LH

$12.99

$

Usually ships in 2-12 days

0

0420-10

Snapper 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0420-20

Snapper 704287

CAPSCREW, Hex Head, 5/16-18 x 3/4, GR5

$3.99

$

In Stock, Qty 8

0

0420-30

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0420-50

Snapper 704065

BOLT, Carriage, 5/16-18 X 7/8

$4.49

$

In Stock, Qty 6

0

0420-60

Snapper 703116

WASHER, Split Lock, .32 x .58 x .08

$3.49

$

In Stock, Qty 20+

0

0420-70

Snapper 703902

NUT, Hex Nylock, 5/16-18

$3.99

$

In Stock, Qty 20+

0
