SPX 110 (2692023-00) - Snapper LT150 Series 42"/107cm Lawn Tractor, 17.5hp 42" (107cm) Mower Deck - Housing, Arbors & Blades Group Parts Diagram

LT150 Series 42"/107cm Lawn Tractor, 17.5hp

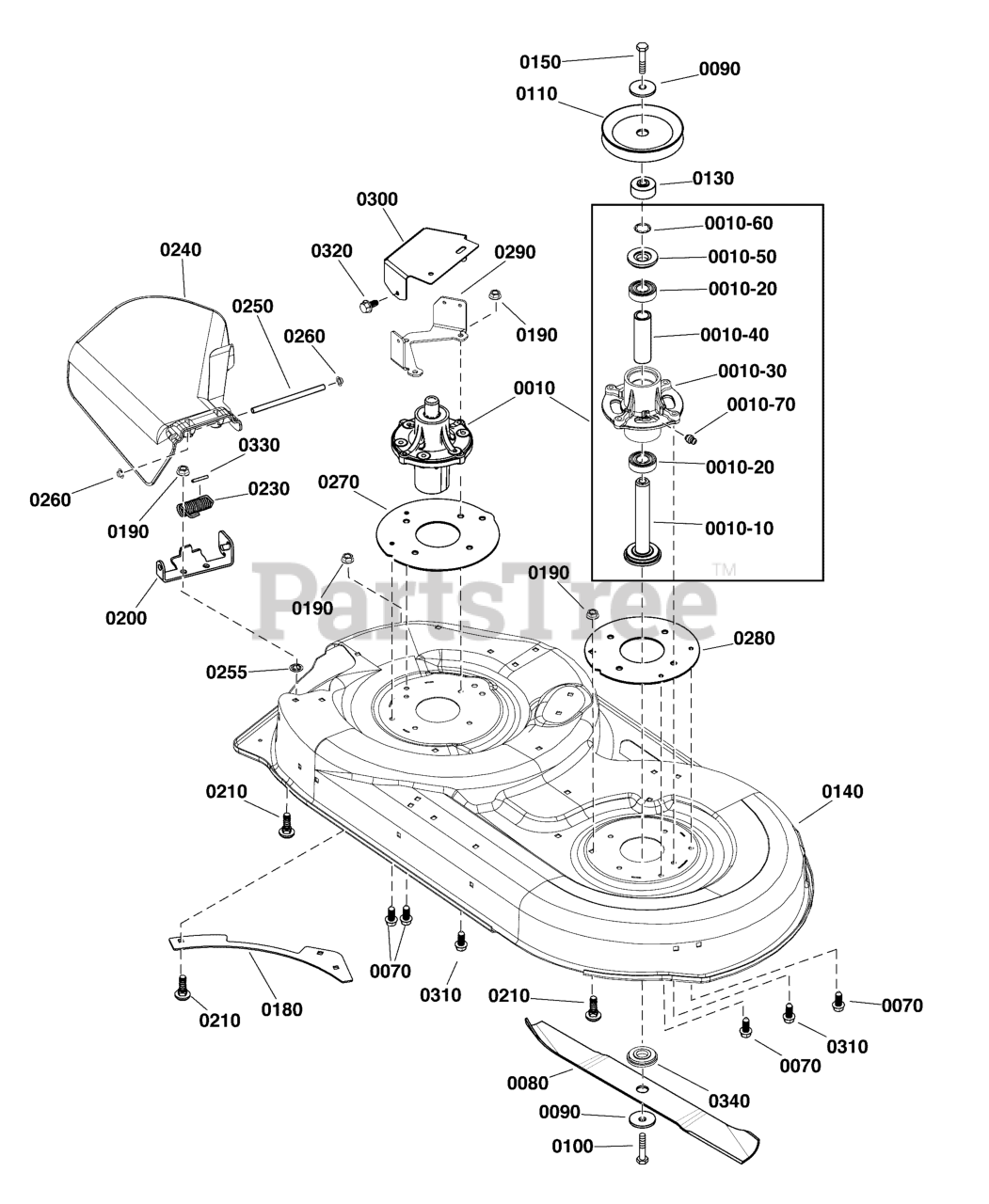

42" (107cm) Mower Deck - Housing, Arbors & Blades Group Parts Diagram

  • Title

0010

Snapper 84003175

ARBOR ASSEMBLY

$100.99

$

In Stock, only 1 left!

0

0010-10

Snapper 84003170

SHAFT, Spindle

$29.99

$

In Stock, only 2 left!

0

0010-20

Snapper 1735399YP

BEARING, Ball, 20mm

$9.99

$

In Stock, Qty 20+

0

0010-30

Snapper 84003654

HOUSING, w/Lube Fittting

$43.99

$

In Stock, Qty 11

0

0010-40

Snapper 84003167

SPACER, Bearing

$6.99

$

In Stock, Qty 7

0

0010-50

Snapper 84003166

SHIELD, Arbor

$6.99

$

In Stock, only 3 left!

0

0010-60

Snapper 1960766YP

RING, Self Locking

$4.49

$

In Stock, Qty 20+

0

0010-70

Snapper 1704314SM

FITTING, Lube, 1/4
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0070

Snapper 704146

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1

$3.99

$

In Stock, Qty 20+

0

0080

Snapper 1752100AYP

BLADE, 42" Mower

$29.99

$

Usually ships in 2-12 days

0

0090

Snapper 1656916SM

WASHER, Spring

$7.49

$

In Stock, Qty 20+

0

0100

Snapper 703579

CAPSCREW, Hex Head, 7/16-14 x 1-1/4, GR8

$4.49

$

In Stock, Qty 20+

0

0110

Snapper 1737835YP

PULLEY, 4.50

$20.99

$

In Stock, only 1 left!

0

0130

Snapper 1737457YP

SPACER, Pulley

$10.99

$

In Stock, only 1 left!

0

0140

Snapper 1687779YP

HOUSING, 42" Mower, Red

$461.99

$

Usually ships in 2-12 days

0

0150

Snapper 703579

CAPSCREW, Hex Head, 7/16-14 x 1-1/4, GR8

$4.49

$

In Stock, Qty 20+

0

0180

Snapper 092426E701MA

PLATE, Rear

$10.99

$

In Stock, only 1 left!

0

0190

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0200

Snapper 094956E701MA

BRACKET, Hinge

$22.99

$

Usually ships in 2-12 days

0

0210

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 20+

0

0230

Snapper 0166X4MA

SPRING, Torsion

$6.49

$

In Stock, Qty 9

0

0240

Snapper 094707MA

DEFLECTOR & SUPPORT ASSEMBLY, Chute

$108.99

$

In Stock, only 3 left!

0

0250

Snapper 094957ZMA

ROD, Deflector

$10.99

$

In Stock, only 1 left!

0

0255

Snapper 703297

RETAINER, 5/16 X 5/8

$3.99

$

In Stock, Qty 20+

0

0260

Snapper 703948

PUSHNUT, 3/8

$4.49

$

In Stock, Qty 20+

0

0270

Snapper 1750457BMYP

PLATE, Spindle, RH

$28.99

$

In Stock, only 1 left!

0

0280

Snapper 1750458BMYP

PLATE, Spindle, LH

$28.99

$

Usually ships in 2-12 days

0

0290

Snapper 1752065BMYP

BRACKET, Guard Mount

$23.99

$

Usually ships in 2-12 days

0

0300

Snapper 1758017BMYP

COVER, MOWER SPINDLE

$29.99

$

Usually ships in 2-12 days

0

0310

Snapper 1930600SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 1-1/2

$4.99

$

In Stock, Qty 19

0

0320

Snapper 26X263MA

CAPSCREW, Hex Head, 1/4-20 x 5/8

$4.99

$

In Stock, only 1 left!

0

0330

Snapper 5023489SM

CAP, Protector

$3.99

$

Usually ships in 2-12 days

0

0340

Snapper 1755892YP

SPACER, Blade Adapter

$36.99

$

Usually ships in 2-12 days

0
