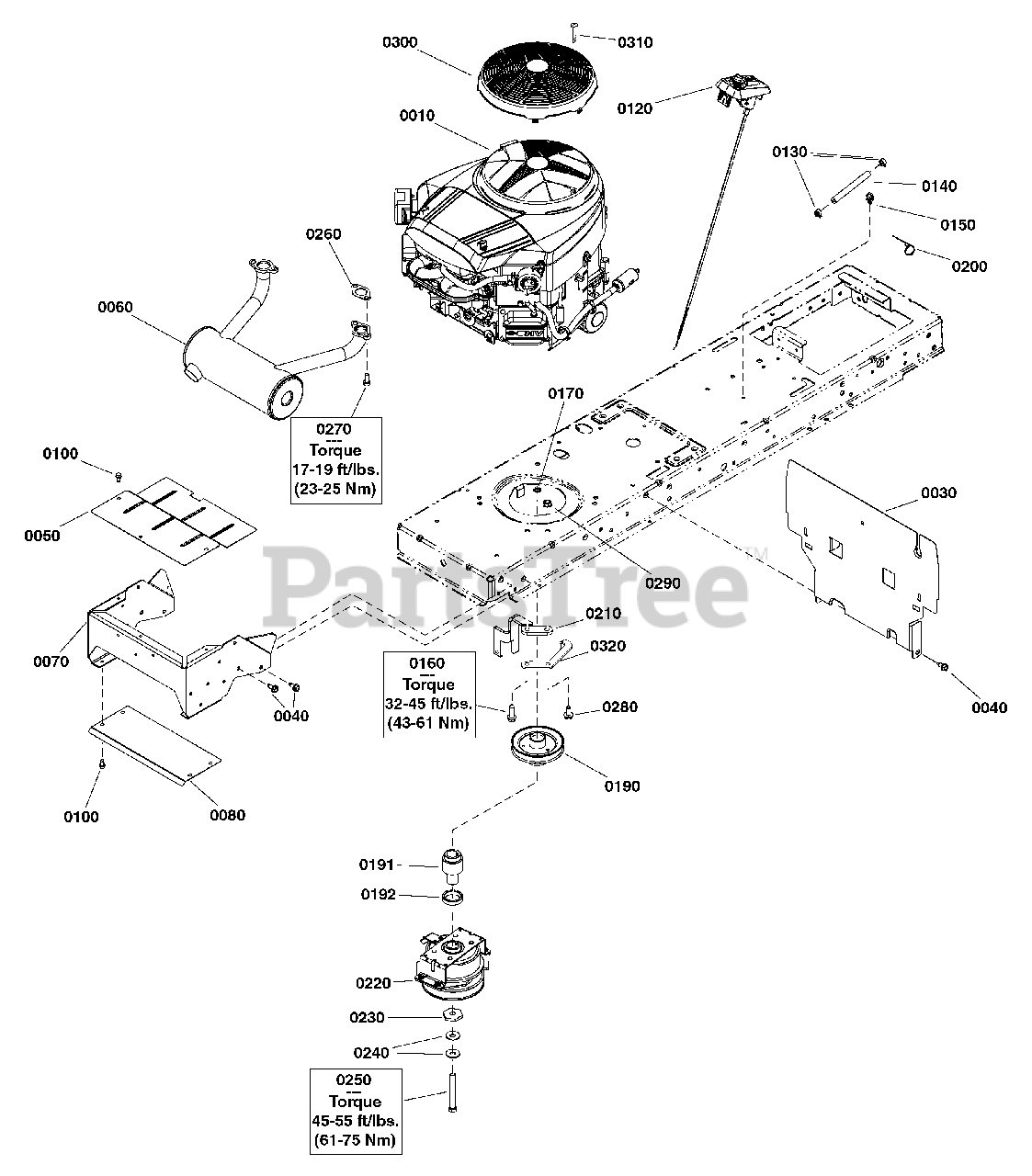

SPX 110 (2691487-01) - Snapper LT150 Series 42"/107cm Lawn Tractor, 17.5hp Engine Group Parts Diagram

LT150 Series 42"/107cm Lawn Tractor, 17.5hp

Engine Group Parts Diagram

  • Title

0010

Snapper 40N777-0028-B1

* ENGINE, 23 Gross HP, Briggs & Stratton Twin, Pro Series, Mod. 40N777-0028-B1

Note: (Engine Model: 40N777-0028-B1)

$

$

Currently unavailable

0030

Snapper 1738380AYP

HEAT SHIELD, Engine

$51.99

$

Usually ships in 2-12 days

0

0040

Snapper 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0050

Snapper 1761064CJYP

HEAT SHIELD

$29.99

$

Usually ships in 2-12 days

0

0060

Snapper 1761127YP

MUFFLER, Twin

$201.99

$

Usually ships in 2-12 days

0

0070

Snapper 1761211CJYP

Support, Muffler

$86.99

$

Usually ships in 2-12 days

0

0080

Snapper 1761063CJYP

HEAT SHIELD, Bottom

$28.99

$

Usually ships in 2-12 days

0

0100

Snapper 704130

SCREW, Hex Head, 1/4-20 X 1/2

$3.99

$

In Stock, Qty 11

0

0120

Snapper 1759240YP

THROTTLE

$65.99

$

Usually ships in 2-12 days

0

0130

Snapper 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 20+

0

0140

Snapper 845503

LINE, Fuel

$35.99

$

Usually ships in 2-12 days

0

0150

Snapper 1730268SM

CLIP, Hose, 1/2 Dia., Push In

$3.99

$

Usually ships in 2-12 days

0

0320

Snapper 84004562

GUIDE, Belt

$16.99

$

In Stock, only 3 left!

0

0160

Snapper 704010

CAPSCREW, Hex Head, Taptite, 3/8-16 x 1-1/2

$4.99

$

Usually ships in 2-12 days

0

0170

Snapper 703864

WASHER, External, 3/8

$4.49

$

Usually ships in 2-12 days

0

0190

Snapper 1732576SM

PULLEY & HUB ASSEMBLY, Engine

$42.99

$

In Stock, only 1 left!

0

0191

Snapper 885679YP

SPACER, Electric Clutch

$13.99

$

Usually ships in 2-12 days

0

0192

Snapper 885810YP

SPACER, Electric Clutch, Lower

$4.49

$

Usually ships in 2-12 days

0

0200

Snapper 703586

TIE, Cable

$4.99

$

Usually ships in 2-12 days

0

0210

Snapper 84001899

ANCHOR

$32.99

$

Usually ships in 2-12 days

0

0220

Snapper 1760986YP

OGURA CLUTCH

Note: (Position clutch as illustrated)

$323.99

$

Usually ships in 2-12 days

0

0230

Snapper 1708264SM

WASHER, Hex

$8.99

$

In Stock, Qty 5

0

0240

Snapper 1960769YP

WASHER, Belleville

$4.99

$

Usually ships in 2-12 days

0

0250

Snapper 771023

CAPSCREW, Hex Head, Loctite, 7/16-20 x 3 1/2

$6.99

$

In Stock, only 2 left!

0

0260

Snapper 690970

GASKET, Exhaust

$4.99

$

In Stock, Qty 20+

0

0270

Snapper 690341

SCREW

$5.99

$

In Stock, only 3 left!

0

0320

Snapper 84004562

GUIDE, Belt

$16.99

$

In Stock, only 3 left!

0

0290

Snapper 703333

NUT, 3/8-16, Flanged Lock, GR5

$4.99

$

In Stock, Qty 20+

0

0300

Snapper 797420YP

GUARD, Debris Screen

$37.99

$

Usually ships in 2-12 days

0

0310

Snapper 95957YP

SCREW, #8-18 X 7/8", Pan Head Hi/Lo Thread Rolling (Not Shown)

$

$

Not available

0320

Snapper 84004562

GUIDE, Belt

$16.99

$

In Stock, only 3 left!

0
