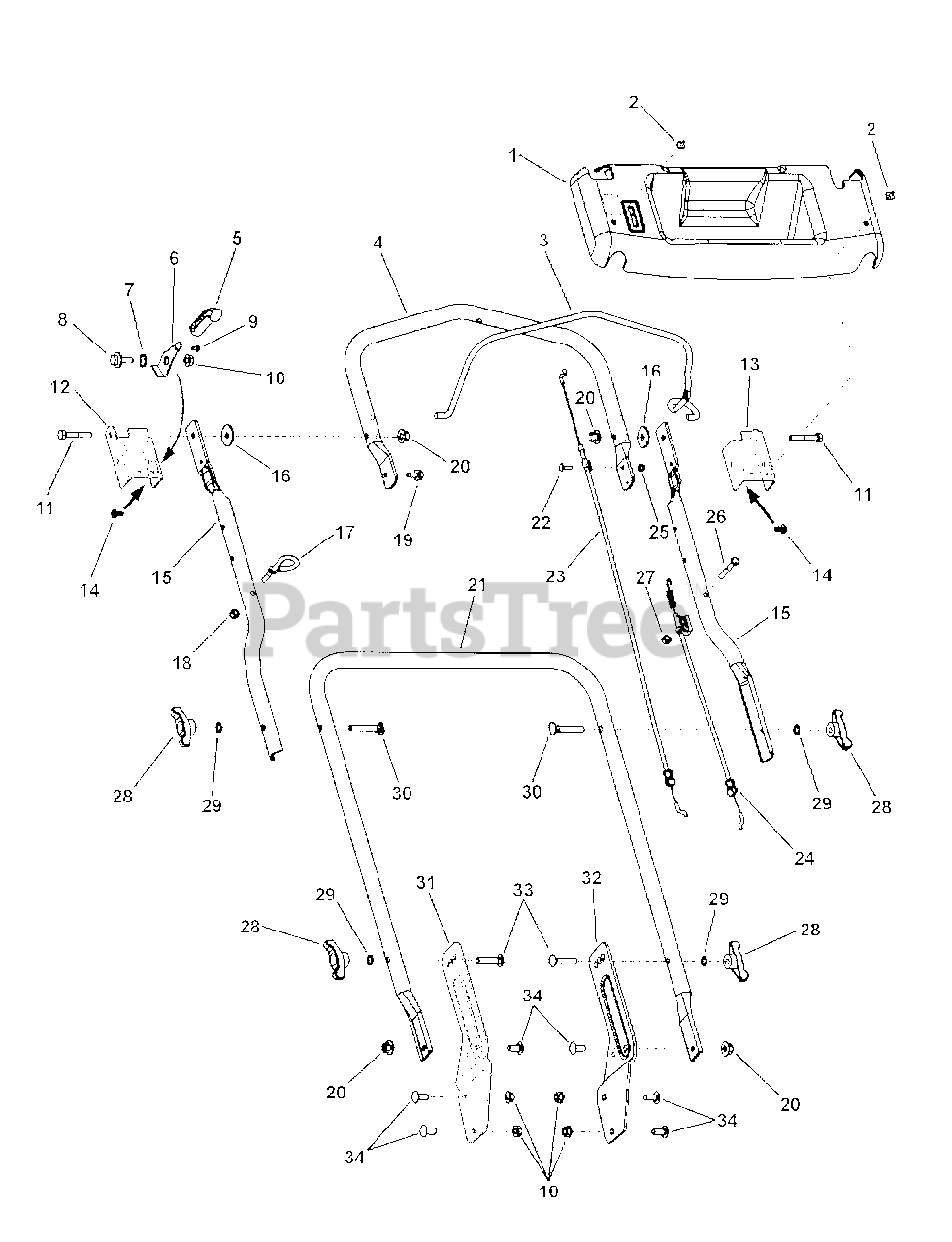

SPVH 2170 (7800594) - Snapper 21" Walk-Behind Mower, 7hp Handles & Controls Parts Diagram

21" Walk-Behind Mower, 7hp

Handles & Controls Parts Diagram

  • Title

1

Snapper 7101068

PANEL, Upper Handle, Snapper 21 WBM
(Superseded to 7101068YP)

$31.99

$

Usually ships in 2-12 days

0

2

Snapper 1960382

POP RIVET, .250 Dia.
(Superseded to 1960382YP)

$3.99

$

Usually ships in 2-12 days

0

3

Snapper 7100844A

BAIL, Pivot Handle
(Superseded to 7100844AYP)

$21.99

$

Usually ships in 2-12 days

0

4

Snapper 7300434A

HANDLE, Pivot
(Superseded to 7300434AYP)

$39.99

$

Usually ships in 2-12 days

0

5

Snapper 7023655

LEVER, Lock Handle
(Superseded to 7023655YP)

$

$

Not available

6

Snapper 7300526A

HANDLE, Lock
(Superseded to 7300526BMYP)

$31.99

$

Usually ships in 2-12 days

0

7

Snapper 7026257

WASHER, .531 x .781 Wave
(Superseded to 7026257MA)

$4.49

$

In Stock, Qty 11

0

8

Snapper 1716654

BOLT, 5/16-18 Shoulder
(Superseded to 1716654SM)

$5.49

$

In Stock, only 1 left!

0

9

Snapper 7071921

RIVET, Plastic Snap
(Superseded to 7071921YP)

$3.49

$

Usually ships in 2-12 days

0

10

Snapper 7091601

NUT, 5/16-18 Flange Lock, YZ
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

11

Snapper 7090669

SCREW, 5/16-18 x 1-3/4" Hex Head Cap, GR 5
(Superseded to 7090669YP)

$4.49

$

In Stock, only 1 left!

0

12

Snapper 7300792A

BRACKET, Rotation Limit, RH
(Superseded to 7301186AYP)

$6.49

$

Usually ships in 2-12 days

0

13

Snapper 7300436A

BRACKET, Rotation Limit, LH
(Superseded to 7301187AYP)

$5.49

$

Usually ships in 2-12 days

0

14

Snapper 7900067

SCREW, 1/4-20 x .55 Torx Self-Tap
(Superseded to 703961)

$4.49

$

In Stock, Qty 20+

0

15

Snapper 7301011A

HANDLE, Upper, Pivot, 21"
(Superseded to 7301011AYP)

$80.99

$

Usually ships in 2-12 days

0

16

Snapper 7023649

WASHER, 5/16 Nylon
(Superseded to 7023649YP)

$4.49

$

In Stock, only 2 left!

0

17

Snapper 7028488

ROPE GUIDE, (1/4-20 thread)
(Superseded to 7028488MA)

$6.49

$

Usually ships in 2-12 days

0

18

Snapper 7076978

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

19

Snapper 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

20

Snapper 7090951

NUT, 5/16-18 Large Head Center Lock, Black
(Superseded to 704001)

$4.49

$

In Stock, Qty 13

0

21

Snapper 7300592A

HANDLE, Lower
(Superseded to 7301182AYP)

$87.99

$

In Stock, only 1 left!

0

22

Snapper 7091085

BOLT, #10-24 x 1/2" Flat Head Square Neck
(Superseded to 7091085YP)

$4.49

$

In Stock, Qty 20+

0

23

Snapper 7102648

CABLE, OPC, Pivot Handle
(Superseded to 7102648YP)

$24.99

$

In Stock, only 2 left!

0

24

Snapper 7102647

CABLE, Drive
(Superseded to 7102647YP)

$31.99

$

In Stock, only 3 left!

0

25

Snapper 7091290

NUT, #10-24 Hex Nyloc
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

26

Snapper 7091003

SCREW, 1/4-20 x 1-3/4, Hex Head Cap, GR 5
(Superseded to 7091003YP)

$3.49

$

Usually ships in 2-12 days

0

27

Snapper 7090372

NUT, 1/4-20 Hex Center Lock
(Superseded to 703954)

$

$

Not available

28

Snapper 7035744

KNOB, 5/16-18 Wing (Black)
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

29

Snapper 7090391

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

30

Snapper 7091189

BOLT, 5/16-18 x 2" Curved Head Square Neck, GR 2
(Superseded to 703059)

$4.49

$

In Stock, Qty 12

0

31

Snapper 7300574A

BRACKET, Lower Handle RH 21" WBM
(Superseded to 7300574AYP)

$20.99

$

Usually ships in 2-12 days

0

32

Snapper 7300573A

BRACKET, Lower Handle, LH 21" WBM
(Superseded to 7300573AYP)

$13.99

$

Usually ships in 2-12 days

0

33

Snapper 7091612

BOLT, 5/16-18 x 1-1/2" Round Head Square Neck
(Superseded to 704210)

$4.99

$

In Stock, Qty 12

0

34

Snapper 7091508

BOLT, 5/16-18 x 3/4" Round Head Short Square Neck, GR5 YZ
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

35

Snapper 7024649

WIRE TIE, 11 Inch Standard Black Nylon
(Superseded to 7024649YP)

Note: not shown

$5.49

$

Usually ships in 2-12 days

0
