SPVH 2170 (7800594) - Snapper 21" Walk-Behind Mower, 7hp Deck Assembly Parts Diagram

21" Walk-Behind Mower, 7hp

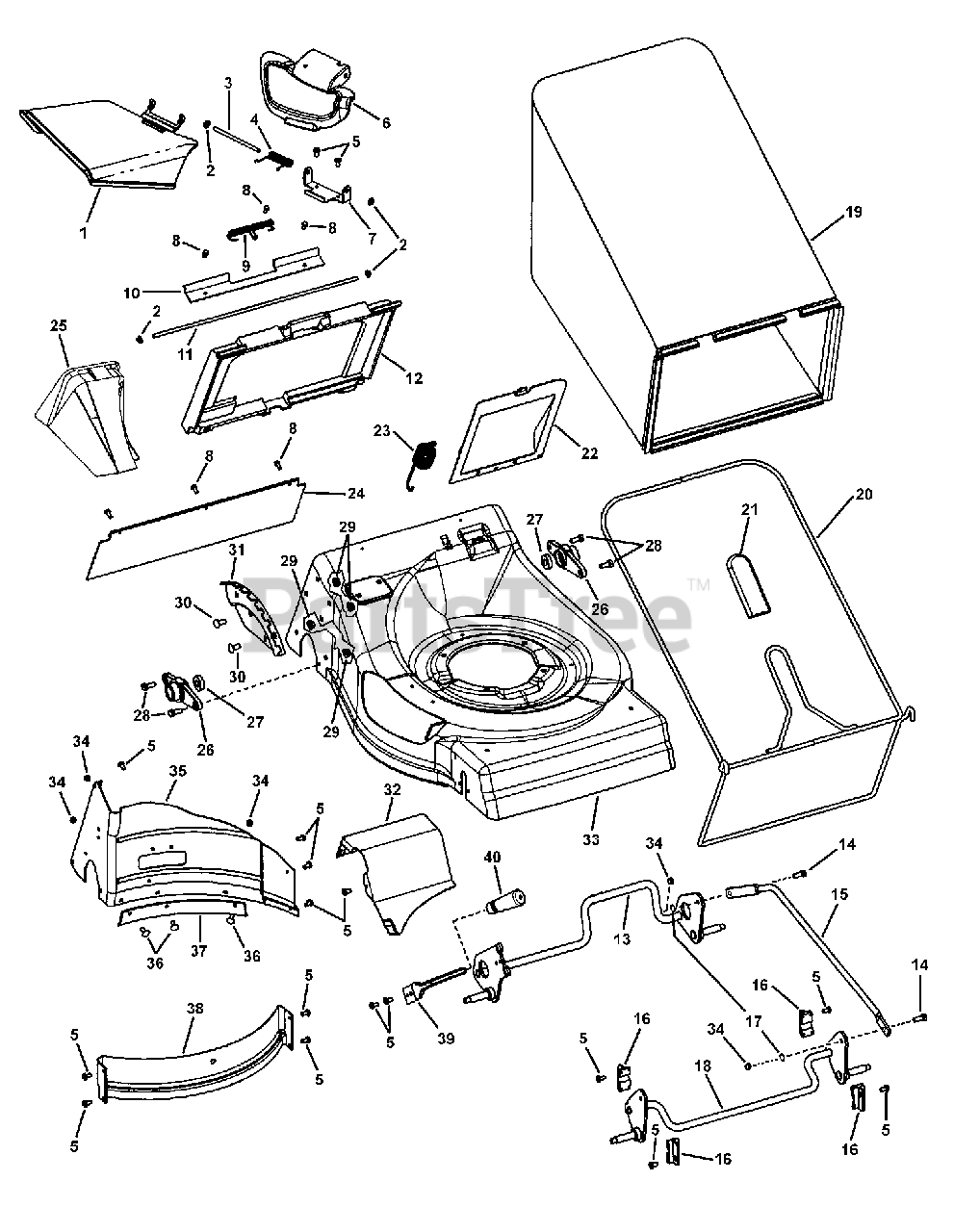

Deck Assembly Parts Diagram

  • Title

1

Snapper 7101490

CHUTE, 21" Side Discharge
(Superseded to 7101490YP)

$43.99

$

In Stock, only 1 left!

0

2

Snapper 7091020

PUSHNUT, 1/4"
(Superseded to 7091020YP)

$4.49

$

In Stock, Qty 20+

0

3

Snapper 7101471

ROD, Pivot, Mulch Cover
(Superseded to 7101471YP)

$4.49

$

Usually ships in 2-12 days

0

4

Snapper 722507

SPRING, Torsion, Chute
(Superseded to 166X38MA)

$4.99

$

In Stock, only 2 left!

0

5

Snapper 7900067

SCREW, 1/4-20 x .550 Pan Head Torx, Self-Tap
(Superseded to 703961)

Note: or 722848

$4.49

$

In Stock, Qty 20+

0

6

Snapper 7101437

COVER, 21" Mulching
(Superseded to 7101437YP)

$20.99

$

Usually ships in 2-12 days

0

7

Snapper 7300590D

BRACKET, Chute Deflector
(Superseded to 7300590DYP)

$6.99

$

In Stock, only 1 left!

0

8

Snapper 7091286

SCREW, #10-24 x 1/2" Hex Washer Self-Tap, SEMS
(Superseded to 7091286YP)

$4.99

$

In Stock, Qty 12

0

9

Snapper 722503

SPRING, Torsion
(Superseded to 166X33MA)

$6.99

$

In Stock, only 1 left!

0

10

Snapper 720735

SPACER, Rear Door, 21"
(Superseded to 071410MA)

$7.99

$

Usually ships in 2-12 days

0

11

Snapper 7101314

ROD, Pivot, Rear Door, 21" RD
(Superseded to 7101314YP)

$6.99

$

In Stock, only 1 left!

0

12

Snapper 727785

DOOR, 21" Black
(Superseded to 071409MA)

$66.99

$

Usually ships in 2-12 days

0

13

Snapper 7400275

WELDMENT, Rear Crossbar 21" WBM, RD, YZ
(Superseded to 7400275YP)

$110.99

$

In Stock, only 1 left!

0

14

Snapper 7101774

BOLT, Shoulder, #10-24 Thread
(Superseded to 7101774YP)

$8.49

$

In Stock, only 2 left!

0

15

Snapper 7101430D

ROD, Lifter Link
(Superseded to 7101430DYP)

$16.99

$

Usually ships in 2-12 days

0

16

Snapper 7101241

BUSHING, Front, 21"
(Superseded to 7101241YP)

$6.99

$

In Stock, only 4 left!

0

17

Snapper 7091892

PUSHNUT, 1/4 Black
(Superseded to 7091892YP)

$3.99

$

Usually ships in 2-12 days

0

18

Snapper 7400276

WELDMENT, Front Crossbar 21" WBM, RD, YZ
(Superseded to 7400276YP)

$152.99

$

Usually ships in 2-12 days

0

19

Snapper 7101304

GRASSBAG, 21" Rear Discharge
(Superseded to 7101304YP)

$119.99

$

In Stock, only 1 left!

0

20

Snapper 7101303A

BAG FRAME, 21" RD WBM
(Superseded to 7101303AYP)

$

$

Not available

21

Snapper 7026421

GRIP, Rectangular (Black)
(Superseded to 7026421YP)

$6.49

$

In Stock, only 2 left!

0

22

Snapper 7300723D

TRANSMISSION COVER, Rear 21"
(Superseded to 7300723DYP)

$30.99

$

Usually ships in 2-12 days

0

23

Snapper 7101434

SPRING, Extension, Height-of-Cut Assist
(Superseded to 7101434YP)

$6.99

$

Usually ships in 2-12 days

0

24

Snapper 7101553

DEFLECTOR, Rear, 21" WBM, RD
(Superseded to 7101553YP)

$

$

Not available

25

Snapper 720723

PLUG, Mulching
(Superseded to 071250MA)

$97.99

$

Usually ships in 2-12 days

0

26

Snapper 7101418

BEARING HOLDER, 21" WBM,RD
(Superseded to 7101418YP)

$15.99

$

In Stock, only 1 left!

0

27

Snapper 7078243

BALL BEARING, Axle
(Superseded to 7078243YP)

$10.99

$

In Stock, Qty 12

0

28

Snapper 7091318

SCREW, 5/16-18 x 3/4" Hex Head Cap, GR 5 YZ
(Superseded to 704287)

$3.99

$

In Stock, Qty 8

0

29

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5, YZ
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

30

Snapper 7091508

BOLT, 5/16-18 x 3/4" Round Head Short Square Neck, GR 5, YZ
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

31

Snapper 7300587D

INDEX PLATE, Height-of-Cut, 21" WBM, RD
(Superseded to 7300587DYP)

$12.99

$

Usually ships in 2-12 days

0

32

Snapper 7300591D

BAFFLE, Right Rear, 21" WBM, RD
(Superseded to 7300591BMYP)

$65.99

$

Usually ships in 2-12 days

0

33

Snapper 7301050D

DECK, 21" Rear Discharge, Non-Electric Start
(Superseded to 7301050DYP)

$199.99

$

Usually ships in 2-12 days

0

34

Snapper 7091290

NUT, #10-24 Hex Nyloc
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

35

Snapper 7300589D

BAFFLE, Left Rear, 21" RD, WBM
(Superseded to 7300589DYP)

$

$

Not available

36

Snapper 7091711

BOLT, #10-24 x 5/8" Flat Head Square Neck, YZ
(Superseded to 7091283YP)

$4.49

$

In Stock, only 1 left!

0

37

Snapper 7101502

BAFFLE, Extension, 21" RD WBM
(Superseded to 7101502YP)

$8.49

$

Usually ships in 2-12 days

0

38

Snapper 7300585D

BAFFLE, Front 21" WBM, RD
(Superseded to 7300585ZMA)

$82.99

$

Usually ships in 2-12 days

0

39

Snapper 724970

LEVER, Spring Height-of-Cut
(Superseded to 672278MA)

$12.99

$

Usually ships in 2-12 days

0

40

Snapper 724887

GRIP, Height-of-Cut
(Superseded to 671297MA)

$6.49

$

In Stock, only 1 left!

0
