SPV 22725HW (7800831) - Snapper 22" Walk-Behind Mower, 7.25hp Handles & Controls Parts Diagram

22" Walk-Behind Mower, 7.25hp

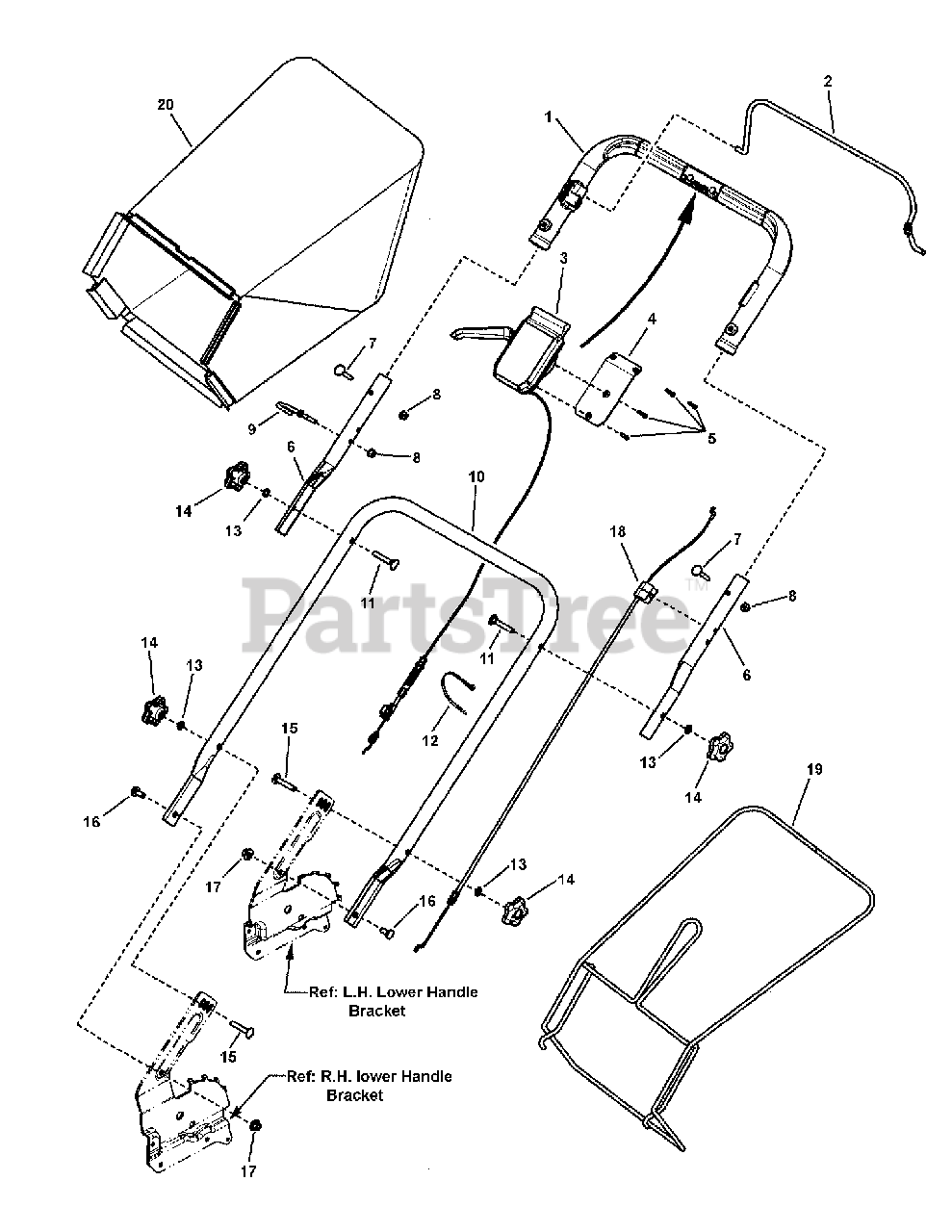

Handles & Controls Parts Diagram

  • Title

1

Snapper 7101312

HANDLE, Plastic Upper, WBM
(Superseded to 7101312YP)

$128.99

$

In Stock, only 1 left!

0

2

Snapper 7101321BH

BAIL, Plastic Handle, WBM
(Superseded to 7101321YP)

$63.99

$

In Stock, only 1 left!

0

3

Snapper 7502147

ASSEMBLY, Control Head, Variable Speed Front-Wheel-Drive
(Superseded to 7103677YP)

Note: (includes cable p/n 7103767)

$62.99

$

In Stock, only 2 left!

0

4

Snapper 7300670A

PLATE, Control Panel- Plastic Handle
(Superseded to 7300670AYP)

$7.99

$

Usually ships in 2-12 days

0

5

Snapper 95050

SCREW, Pan Head, Thread Rolling
(Superseded to 691138)

$3.99

$

In Stock, Qty 18

0

6

Snapper 7300649BH

HANDLE, Connecting 21/22 WBM
(Superseded to 7300649BHYP)

$26.99

$

Usually ships in 2-12 days

0

7

Snapper 7090015

BOLT, 1/4-20 x 1-3/4 Round Head Square Neck, GR 2
(Superseded to 7090015YP)

$3.99

$

Usually ships in 2-12 days

0

8

Snapper 2860694

NUT, 1/4-20, Hex Flange Nyloc, YZ
(Superseded to 703463)

$4.49

$

In Stock, Qty 20+

0

9

Snapper 7104952

GUIDE, Rope (1/4-20 threads)
(Superseded to 7104952YP)

$6.99

$

Usually ships in 2-12 days

0

10

Snapper 7301189BH

HANDLE, Lower, 1", WBM
(Superseded to 7301189BHYP)

$176.99

$

Usually ships in 2-12 days

0

11

Snapper 7091189

BOLT, 5/16-18 x 2 Curved Head Square Neck, GR 2
(Superseded to 703059)

$4.49

$

In Stock, Qty 10

0

12

Snapper 7024649

WIRE TIE,11 Inch Standard Black Nylon
(Superseded to 7024649YP)

$5.49

$

Usually ships in 2-12 days

0

13

Snapper 7090391

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

14

Snapper 7105085

KNOB, Handle, (5/16-18 internal threads) 5-Prong
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

15

Snapper 1931338

BOLT, 5/16-18 x 1-3/4" Round Head Square Neck Carriage
(Superseded to 703175)

$3.99

$

In Stock, only 2 left!

0

16

Snapper 1931333

BOLT, 5/16-18 x 3/4" Round Head Short Square Neck Carriage, GR 5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

17

Snapper 7090951

NUT, 5/16-18 Large Head Center Lock, Black
(Superseded to 704001)

$4.49

$

In Stock, Qty 13

0

18

Snapper 7101395

CABLE, Bail, 22 WBM, (43.10" cable length)
(Superseded to 7101395YP)

$16.99

$

In Stock, only 1 left!

0

19

Snapper 7103305A

BAG FRAME, Rear Discharge (weldment)
(Superseded to 7103305AYP)

$136.99

$

Usually ships in 2-12 days

0

20

Snapper 7103375

GRASS BAG, 22" Rear Discharge
(Superseded to 7103375YP)

$76.99

$

Usually ships in 2-12 days

0
