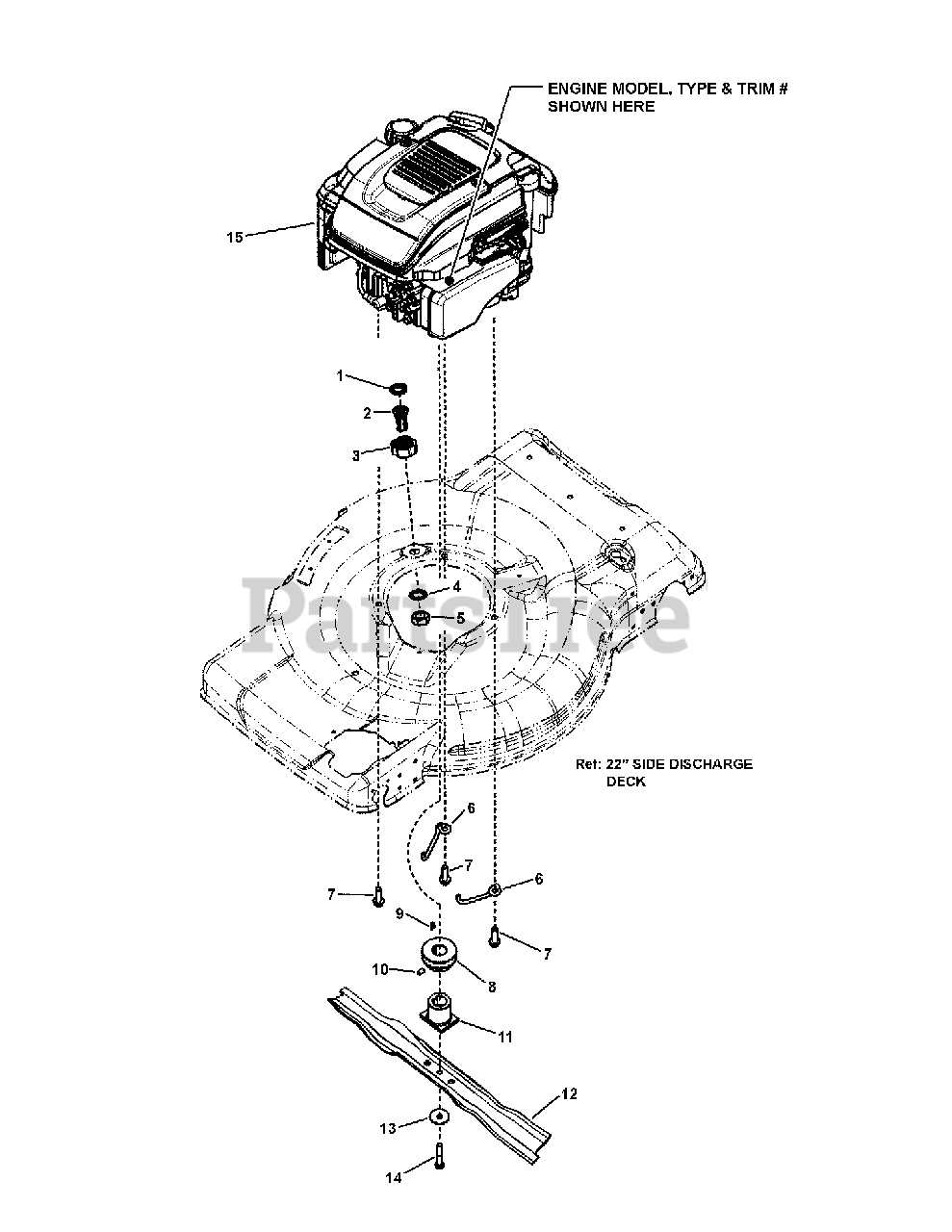

SPV 22725HW (7800831) - Snapper 22" Walk-Behind Mower, 7.25hp Engine Group Parts Diagram

22" Walk-Behind Mower, 7.25hp

Engine Group Parts Diagram

  • Title

1

Snapper 7103957

WASHER, Hose
(Superseded to 7103957YP)

$3.99

$

Usually ships in 2-12 days

0

2

Snapper 7103804

ADAPTOR, Washout Port, WBM
(Superseded to 7103804YP)

$6.49

$

Usually ships in 2-12 days

0

3

Snapper 7103919

COUPLING, Hose
(Superseded to 7103919YP)

$4.49

$

Usually ships in 2-12 days

0

4

Snapper 7090880

WASHER, 5/8" Internal Tooth Lock
(Superseded to 1960547SM)

$4.49

$

In Stock, only 3 left!

0

5

Snapper 1960716

NUT, 5/8-11 NC-2B Hex Jam
(Superseded to 1960716SM)

$3.49

$

Usually ships in 2-12 days

0

6

Snapper 7103517

BELT GUIDE, Engine, Front Wheel Drive
(Superseded to 7103517YP)

$3.49

$

Usually ships in 2-12 days

0

7

Snapper 7900072

SCREW, 3/8-16 X 1-1/4" Hex Washer Self-Tap
(Superseded to 7900072YP)

$3.99

$

Usually ships in 2-12 days

0

8

Snapper 7105122

PULLEY, Engine PM, WBM
(Superseded to 7105122YP)

$40.99

$

In Stock, only 1 left!

0

9

Snapper 7091214

KEY, #HP-506 Hi-Pro
(Superseded to 7091214YP)

$4.99

$

In Stock, only 1 left!

0

10

Snapper 7092086

SET SCREW 5/16-18 x 1/2 Hex Recess
(Superseded to 7092086YP)

$4.99

$

Usually ships in 2-12 days

0

11

Snapper 7101414

BLADE HUB
(Superseded to 7101414YP)

$16.99

$

In Stock, only 1 left!

0

12

Snapper 7103288

BLADE, Wave, Steel Deck
(Superseded to 7103288YP)

$29.99

$

In Stock, Qty 8

0

13

Snapper 7012063

WASHER, Cone 13/32 x 1-13/32" Dia.
(Superseded to 703963)

$6.99

$

In Stock, only 2 left!

0

14

Snapper 7090167

SCREW, 3/8-24 x 2" Hex Head Cap, GR 5
(Superseded to 7090167SM)

$3.99

$

Usually ships in 2-12 days

0

15

Snapper 128M02-0115-F1

* ENGINE, B&S, 725 Series, X-Spec

$

$

Not available
