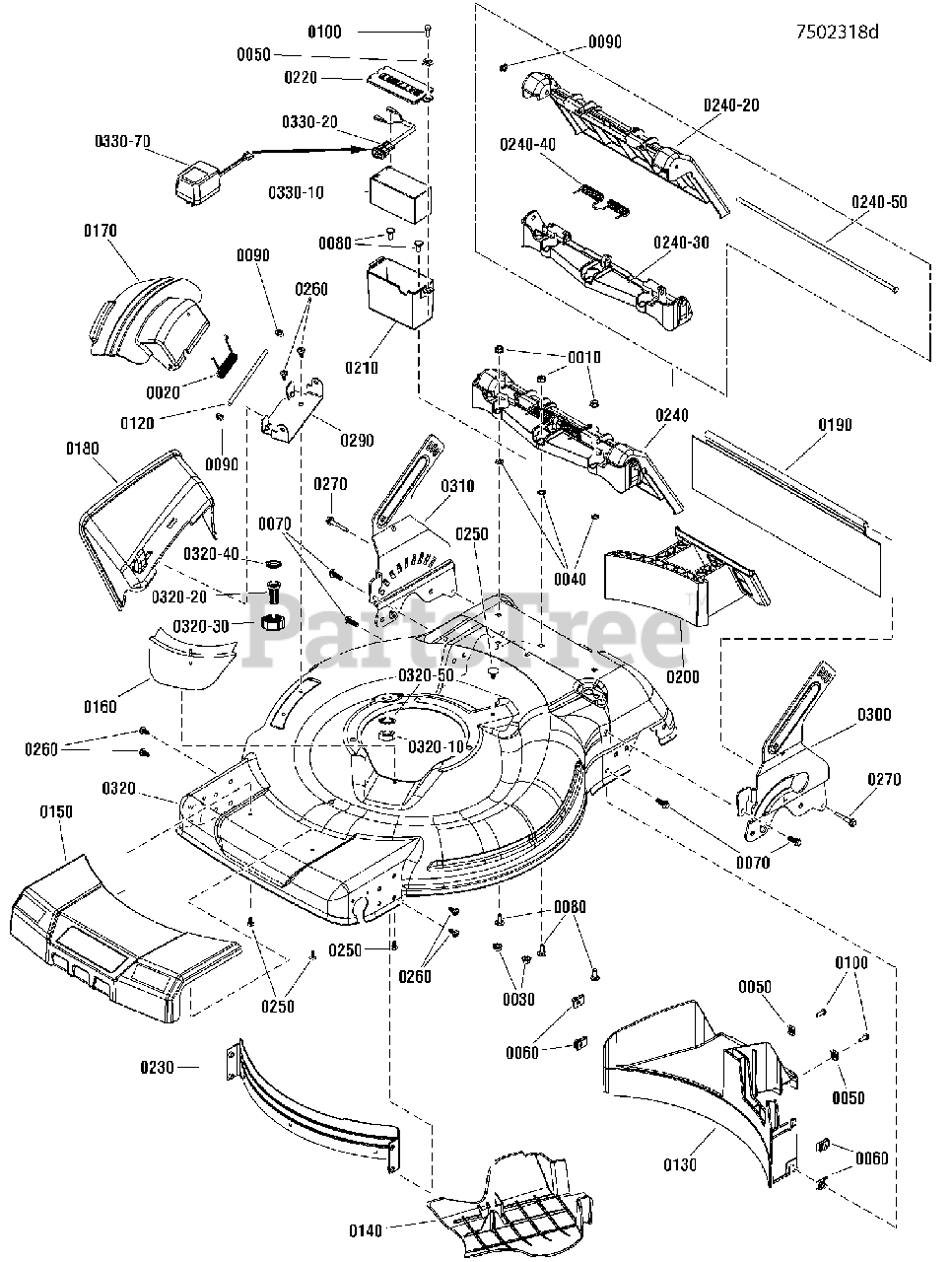

SPV 22725E (7800897) - Snapper 22" Walk-Behind Mower, 7.25hp Deck Group, 22" RWD ES Parts Diagram

22" Walk-Behind Mower, 7.25hp

Deck Group, 22" RWD ES Parts Diagram

  • Title

0010

Snapper 722398

NUT, 1/4-20 Hex Flange Lock
(Superseded to 7001278MA)

$

$

Not available

0020

Snapper 722507

SPRING, Chute (Torsion)
(Superseded to 166X38MA)

$4.99

$

In Stock, only 2 left!

0

0030

Snapper 725891

NUT, 1/4-20 Hex Flange Whiz Lock
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0

0040

Snapper 1960518

RETAINER, 1/4" Bolt
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

0050

Snapper 1960593

SPEED NUT, #10-24 Retainer w/Extrusion
(Superseded to 1960593SM)

$4.99

$

Usually ships in 2-12 days

0

0060

Snapper 7023295

U-NUT, 1/4-20
(Superseded to 705876)

$4.49

$

In Stock, Qty 20+

0

0070

Snapper 7090699

BOLT, 1/4-20 x 3/4" Hex Flange Lock, GR 5
(Superseded to 1935450SM)

$4.49

$

Usually ships in 2-12 days

0

0080

Snapper 7090803

BOLT, 1/4-20 x 5/8" Flat Head Square Neck, GR 5
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

0090

Snapper 7091020

PUSHNUT, 1/4"
(Superseded to 7091020YP)

$4.49

$

In Stock, Qty 20+

0

0100

Snapper 7091075

SCREW, #10-24 x 5/8" Hex Washer Face Self-Tap, GR 5
(Superseded to 7091075SM)

$4.49

$

In Stock, Qty 5

0

0120

Snapper 7101067

ROD, Pivot
(Superseded to 7101067YP)

$6.99

$

Usually ships in 2-12 days

0

0130

Snapper 7103293

REAR BAFFLE, Rear Wheel Drive WBM
(Superseded to 7103293YP)

$64.99

$

Usually ships in 2-12 days

0

0140

Snapper 7104819

COVER, Belt Drive, Rear
(Superseded to 7104819YP)

$34.99

$

Usually ships in 2-12 days

0

0150

Snapper 7103295

COVER, Nose
(Superseded to 7600191YP)

$37.99

$

Usually ships in 2-12 days

0

0160

Snapper 7103296

FRONT SHIELD, Debris
(Superseded to 7103296YP)

$8.99

$

In Stock, only 2 left!

0

0170

Snapper 7103298

COVER, Mulching
(Superseded to 7103298YP)

$

$

Not available

0180

Snapper 7103299

CHUTE, Side Discharge, 22" WBM
(Superseded to 7103299YP)

$35.99

$

In Stock, only 1 left!

0

0190

Snapper 7103323

GUARD, Rear 22"
(Superseded to 7103323YP)

$9.49

$

In Stock, only 1 left!

0

0200

Snapper 7103453

PLUG, Mulching, 22" Deck
(Superseded to 7103453YP)

$32.99

$

In Stock, only 3 left!

0

0210

Snapper 7103457

BOTTOM, Battery Box, Miniature
(Superseded to 7103457YP)

$12.99

$

Usually ships in 2-12 days

0

0220

Snapper 7103458

TOP, Battery Box, Miniature
(Superseded to 7103458YP)

$5.49

$

Usually ships in 2-12 days

0

0230

Snapper 7301020

BAFFLE, Front
(Superseded to 7301020YP)

$50.99

$

In Stock, only 1 left!

0

0240

Snapper 7501541

DOOR ASSY, 22" Walk-Behind-Mower
(Superseded to 7501541YP)

Note: (incl. next 5 items)

$45.99

$

Usually ships in 2-12 days

0

0240-20

Snapper 7103291

DOOR, Rear Discharge
(Superseded to 7501541YP)

$45.99

$

Usually ships in 2-12 days

0

0240-30

Snapper 7103292

DOOR HINGE, Rear Discharge
(Superseded to 7103292YP)

$19.99

$

In Stock, only 1 left!

0

0240-40

Snapper 7103309

SPRING, Rear Door (Torsion)
(Superseded to 7103309YP)

$5.49

$

In Stock, only 1 left!

0

0240-50

Snapper 7103322

ROD, Pivot, Rear Door
(Superseded to 7103322YP)

$3.99

$

Usually ships in 2-12 days

0

0250

Snapper 7900018

SCREW, 4.8 x 1.59 x 13mm, Round Washer Head Hi-Lo (Torx)
(Superseded to 703834)

$4.49

$

In Stock, only 4 left!

0

0260

Snapper 7900067

SCREW, 1/4-20 x .550 Pan Head Torx (T-30)
(Superseded to 703961)

$4.49

$

In Stock, Qty 20+

0

0270

Snapper 7900073

BOLT, Drag Shield, 1/4-20 x 1-1/2"
(Superseded to 7900073YP)

$3.49

$

Usually ships in 2-12 days

0

0290

Snapper 7300855BM

BRACKET, Chute
(Superseded to 7300855BMYP)

$9.99

$

Usually ships in 2-12 days

0

0300

Snapper 7300885BH

BRACKET, Rear Wheel, LH, Quick Adjust
(Superseded to 7300885BHYP)

$26.99

$

Usually ships in 2-12 days

0

0310

Snapper 7300915BH

BRACKET, Rear Wheel, RH, Quick Adjust
(Superseded to 7300915BHYP)

$26.99

$

Usually ships in 2-12 days

0

0320

Snapper 7301203D

DECK, 22" RWD, ES

$

$

Currently unavailable

0320-10

Snapper 1960716

NUT, 5/8-11 NC-2B Hex Jam
(Superseded to 1960716SM)

$3.49

$

Usually ships in 2-12 days

0

0320-20

Snapper 7103804

ADAPTOR, Washout Port, WBM
(Superseded to 7103804YP)

$6.49

$

Usually ships in 2-12 days

0

0320-30

Snapper 7103919

COUPLING, Hose
(Superseded to 7103919YP)

$4.49

$

Usually ships in 2-12 days

0

0320-40

Snapper 7103957

WASHER, Hose
(Superseded to 7103957YP)

$3.99

$

Usually ships in 2-12 days

0

0320-50

Snapper 7090880

WASHER, 5/8" Internal Tooth Lock
(Superseded to 1960547SM)

$4.49

$

In Stock, only 4 left!

0

0330-10

Snapper 7102931

BATTERY, 12V, 1.3 A/HR, Type G Terminals
(Superseded to 707495)

$64.99

$

In Stock, only 2 left!

0

0330-20

Snapper 7102968

HARNESS, Battery, 1.3 A/HR
(Superseded to 7102968YP)

$5.99

$

Usually ships in 2-12 days

0

0330-70

Snapper 7103988

CHARGER, Battery, 14V 260MA
(Superseded to 770625)

$59.99

$

In Stock, only 2 left!

0
