SPV 22725 (7800896) - Snapper 22" Walk-Behind Mower, 7.25hp Handles & Controls Group Parts Diagram

22" Walk-Behind Mower, 7.25hp

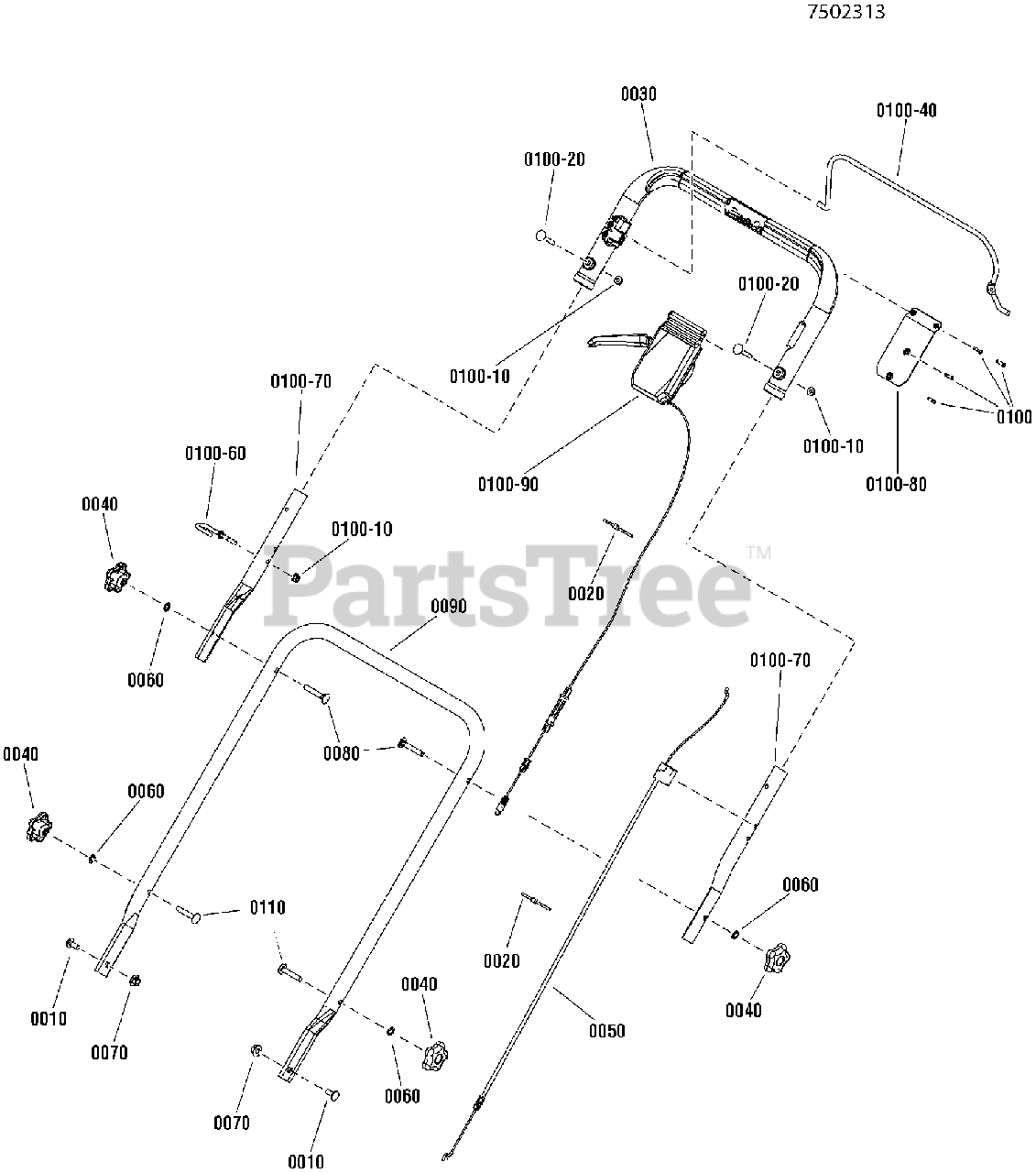

Handles & Controls Group Parts Diagram

  • Title

0010

Snapper 1931333

BOLT, 5/16-18 x 3/4" Round Head Short Square Neck Carriage, GR 5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

0020

Snapper 7024649

WIRE TIE, 11"
(Superseded to 7024649YP)

$5.49

$

Usually ships in 2-12 days

0

0030

Snapper 7101312

HANDLE, Upper, Plastic, WBM
(Superseded to 7101312YP)

$128.99

$

In Stock, only 1 left!

0

0040

Snapper 7105085

KNOB, Handle, 5-Prong (5/16-18 internal threads)
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

0050

Snapper 7101395

CABLE, Bail, 22" Walk-Behind Mower
(Superseded to 7101395YP)

$16.99

$

In Stock, only 1 left!

0

0060

Snapper 7090391

WASHER, 5/16 Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

0070

Snapper 7090951

NUT, 5/16-18 Large Flange Center Lock
(Superseded to 704001)

$4.49

$

In Stock, Qty 13

0

0080

Snapper 7091189

BOLT, 5/16-18 x 2 Curved Head Square Neck, GR 2
(Superseded to 703059)

$4.49

$

In Stock, Qty 12

0

0090

Snapper 7301189BH

HANDLE, Lower, 1", WBM
(Superseded to 7301189BHYP)

$176.99

$

Usually ships in 2-12 days

0

0100

Snapper 95050

SCREW, Pan Head Thread Rolling
(Superseded to 691138)

$3.99

$

In Stock, Qty 18

0

0100-10

Snapper 2860694

NUT, 1/4-20 Hex Flange, Nyloc, YZ
(Superseded to 703463)

$4.49

$

In Stock, Qty 20+

0

0100-20

Snapper 7090015

BOLT, 1/4-20 x 1-3/4 Round Head Square Neck, GR 2
(Superseded to 7090015YP)

$3.99

$

Usually ships in 2-12 days

0

0100-40

Snapper 7101321BH

BAIL, Plastic Handle, WBM
(Superseded to 7101321YP)

$63.99

$

In Stock, only 1 left!

0

0100-60

Snapper 7104952

GUIDE, Rope (1/4-20 threads)
(Superseded to 7104952YP)

$6.99

$

Usually ships in 2-12 days

0

0100-70

Snapper 7300649BH

HANDLE, Connecting, 21" / 22" WBM
(Superseded to 7300649BHYP)

$26.99

$

Usually ships in 2-12 days

0

0100-80

Snapper 7300670A

PLATE, Control Panel, Plastic Handle
(Superseded to 7300670AYP)

$

$

Not available

0100-90

Snapper 7104768

ASSEMBLY, Control Head, 22" WBM Variable Speed Rear Wheel Drive
(Superseded to 7104768YP)

$

$

Not available

0110

Snapper 1931338

BOLT, 5/16-18 x 1-3/4" Round Head Square Neck Carriage
(Superseded to 703175)

$3.99

$

In Stock, only 2 left!

0
