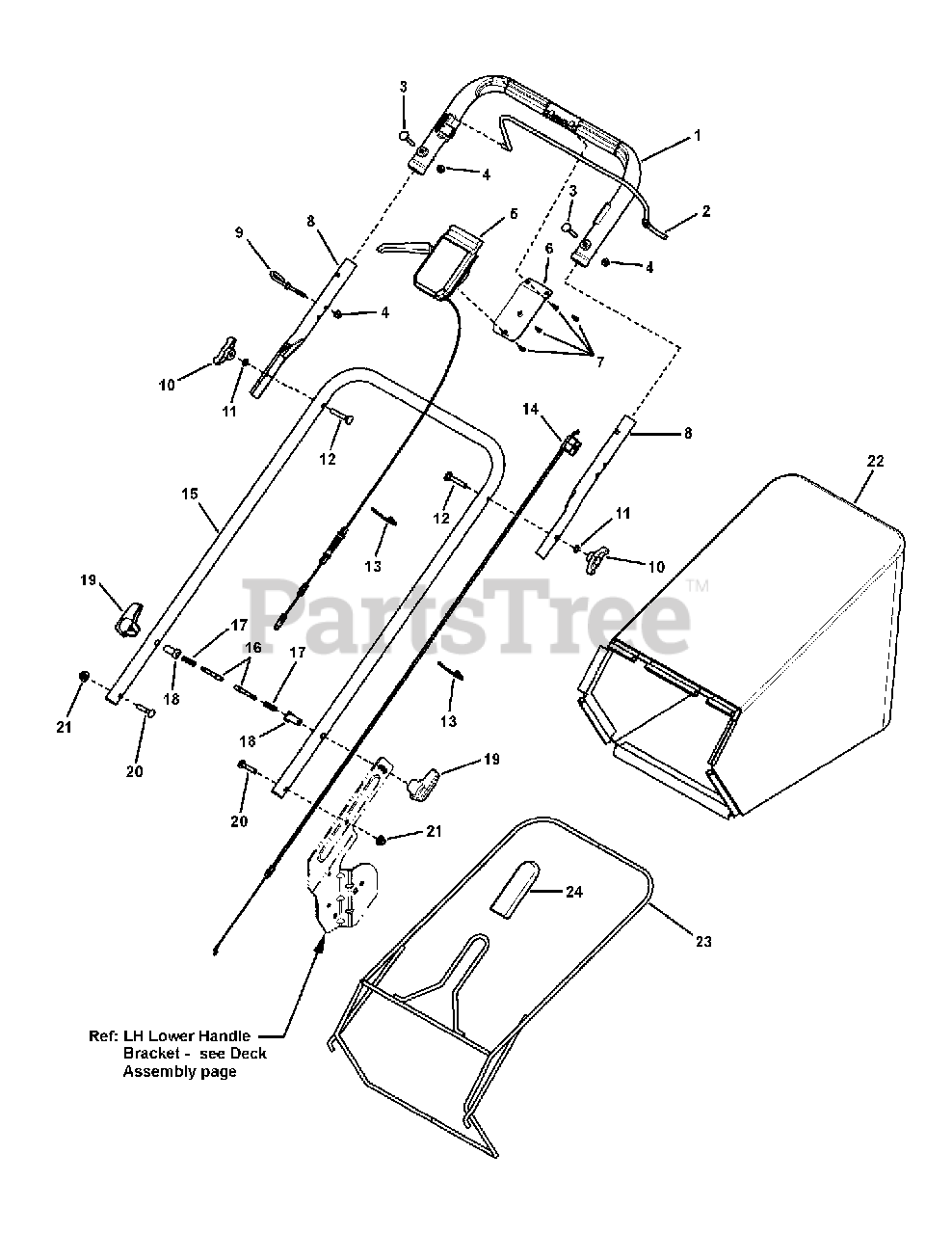

SPV 2270HW (7800585) - Snapper 22" Walk-Behind Mower, 7hp Handles & Controls Parts Diagram

22" Walk-Behind Mower, 7hp

Handles & Controls Parts Diagram

  • Title

1

Snapper 7101312

HANDLE, Plastic Upper, WBM
(Superseded to 7101312YP)

$128.99

$

In Stock, only 1 left!

0

2

Snapper 7101321BH

BAIL, Plastic Handle, WBM
(Superseded to 7101321YP)

$63.99

$

In Stock, only 1 left!

0

3

Snapper 7090015

BOLT, 1/4-20 x 1-3/4 Round Head Square Neck, GR 2
(Superseded to 7090015YP)

$3.99

$

Usually ships in 2-12 days

0

4

Snapper 2860694

NUT, 1/4-20, Hex Flange Nyloc, YZ
(Superseded to 703463)

$4.49

$

In Stock, Qty 20+

0

5

Snapper 7101415

ASSEMBLY, Control Head, 22 WBM, VS, HW (incl. cable & lever)
(Superseded to 7101415YP)

$

$

Not available

6

Snapper 7300670A

PLATE, Control Panel- Plastic Handle
(Superseded to 7300670AYP)

$

$

Not available

7

Snapper 7100225

SCREW, #8-16 Torxplus Recessed Pan Head, Twin Helix
(Superseded to 704209)

$3.99

$

Usually ships in 2-12 days

0

8

Snapper 7300649BH

HANDLE, Connecting 21/22 WBM
(Superseded to 7300649BHYP)

$26.99

$

Usually ships in 2-12 days

0

9

Snapper 7101410

ROPE GUIDE (1/4-20 thread)
(Superseded to 7101410YP)

$6.49

$

In Stock, only 1 left!

0

10

Snapper 7035744

KNOB, 5/16-18 Wing (Black)
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

11

Snapper 7090391

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

12

Snapper 7091189

BOLT, 5/16-18 x 2 Curved Head Square Neck, GR 2
(Superseded to 703059)

$4.49

$

In Stock, Qty 15

0

13

Snapper 7024649

WIRE TIE,11 Inch Standard Black Nylon
(Superseded to 7024649YP)

$5.49

$

Usually ships in 2-12 days

0

14

Snapper 7101395

CABLE, Bail, 22 WBM
(Superseded to 7101395YP)

Note: (43.10" cable length)

$16.99

$

In Stock, only 1 left!

0

15

Snapper 7300667BH

HANDLE, Lower, 22 WBM, Hi-Wheel
(Superseded to 7300667BHYP)

$52.99

$

Usually ships in 2-12 days

0

16

Snapper 7101198

PIN, Handle Adjust
(Superseded to 7101198YP)

$5.49

$

Usually ships in 2-12 days

0

17

Snapper 7101200

SPRING, Compression
(Superseded to 7101200YP)

$4.49

$

Usually ships in 2-12 days

0

18

Snapper 7101199

BUSHING, Handle Pin
(Superseded to 7101199YP)

$6.99

$

Usually ships in 2-12 days

0

19

Snapper 7101202

KNOB, Quick Release
(Superseded to 7101202YP)

$6.99

$

Usually ships in 2-12 days

0

20

Snapper 7090958

BOLT, 5/16-18 x 1-1/2" Round Head Short Square Neck, GR 5
(Superseded to 704210)

$4.99

$

In Stock, Qty 12

0

21

Snapper 7090951

NUT, 5/16-18 Large Head Center Lock, Black
(Superseded to 704001)

$4.49

$

In Stock, Qty 13

0

22

Snapper 7101246

GRASS BAG, 22" Rear Discharge
(Superseded to 7102573YP)

$128.99

$

Usually ships in 2-12 days

0

23

Snapper 7101230A

BAG FRAME, 22" WBM (Weldment)
(Superseded to 7101230AYP)

$222.99

$

Usually ships in 2-12 days

0

24

Snapper 7026421

GRIP, Rectangular (Black)
(Superseded to 7026421YP)

$6.49

$

In Stock, only 2 left!

0
