SPV 2270E (7800778) - Snapper 22" Walk-Behind Mower, 7hp Transmission & Wheels Group Parts Diagram

22" Walk-Behind Mower, 7hp

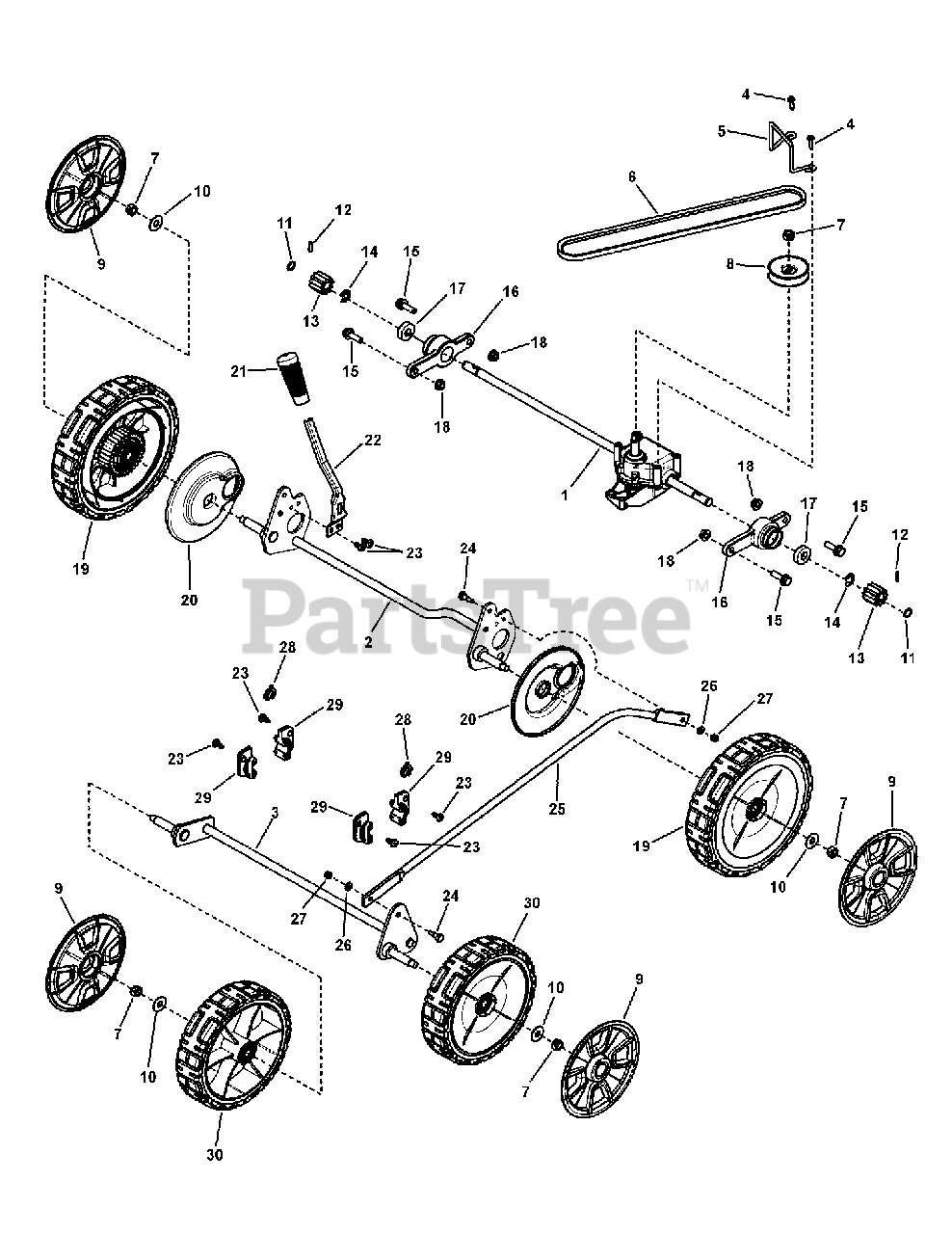

Transmission & Wheels Group Parts Diagram

  • Title

1

Snapper 7103312

TRANSMISSION, Variable Speed, Rear Wheel Drive
(Superseded to 7105127YP)

$137.99

$

Usually ships in 2-12 days

0

2

Snapper 7400259

WELDMENT, Rear Crossbar, RWD
(Superseded to 7400259YP)

$152.99

$

In Stock, only 1 left!

0

3

Snapper 7400306

WELDMENT, Front Axle
(Superseded to 7400306YP)

$60.99

$

In Stock, only 1 left!

0

4

Snapper 7091195

SCREW, #10-16 x 3/4" Pan Head Self-Tap, Combo
(Superseded to 7091195SM)

$4.49

$

In Stock, only 1 left!

0

5

Snapper 7100863

BELT GUIDE, Transmission
(Superseded to 7100863YP)

$6.49

$

Usually ships in 2-12 days

0

6

Snapper 7103364

BELT, 3L, Traction Drive, 22" WBM, RWD
(Superseded to 7103364YP)

Note: (3L Sect., 33.83" Effective Length)

$21.99

$

Usually ships in 2-12 days

0

7

Snapper 7091585

NUT, 3/8-16 Hex Center Lock, YZ
(Superseded to 703347)

$4.99

$

In Stock, only 4 left!

0

8

Snapper 7100240

PULLEY, Transmission Variable Speed, LC WBM
(Superseded to 7100240YP)

$23.99

$

Usually ships in 2-12 days

0

9

Snapper 7101350

HUBCAP, 8" & 9" Spoked Wheel, Snapper Cool Gray
(Superseded to 7101350YP)

$10.99

$

In Stock, Qty 20+

0

10

Snapper 722604

WASHER, 1" OD x .387 ID, Flat
(Superseded to 703966)

$4.49

$

In Stock, only 2 left!

0

11

Snapper 7027999

RETAINING RING, .452 - .463 ID (Waldes Truarc 5100-50 or equivalent)
(Superseded to 7027999YP)

$4.49

$

In Stock, only 4 left!

0

12

Snapper 7100861

PIN, Axle
(Superseded to 7100861YP)

$4.99

$

In Stock, only 1 left!

0

13

Snapper 7100820

GEAR, Pinion
(Superseded to 7100820YP)

$

$

Not available

14

Snapper 7014341

RETAINING RING (Waldes 5133-50 or equivalent)
(Superseded to 703976)

$4.49

$

In Stock, Qty 11

0

15

Snapper 7091591

BOLT, 5/16-18 x 1" Hex Flange Lock, GR 5
(Superseded to 7091591SM)

$4.49

$

In Stock, only 2 left!

0

16

Snapper 7103290

HOLDER, Bearing, Rear Wheel Drive
(Superseded to 7103290YP)

$13.99

$

Usually ships in 2-12 days

0

17

Snapper 7078243

BALL BEARING, Axle
(Superseded to 7078243YP)

$10.99

$

In Stock, Qty 18

0

18

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

19

Snapper 7500539

WHEEL ASSEMBLY, 9 x 2 Drive, Snapper Tread, w/Ext Gear
(Superseded to 7600174YP)

Note: (includes ball bearings #7101380, gear #7100914, & screws #7091196)

$56.99

$

Usually ships in 2-12 days

0

20

Snapper 7101367

SHIELD, Dust, 21" WBM, RD
(Superseded to 7101367YP)

$7.49

$

In Stock, only 2 left!

0

21

Snapper 724887

GRIP, Height-Of-Cut
(Superseded to 671297MA)

$6.49

$

In Stock, only 1 left!

0

22

Snapper 7103289

LEVER, Spring, Height-Of-Cut
(Superseded to 7103289YP)

$11.99

$

In Stock, only 2 left!

0

23

Snapper 7900067

SCREW, 1/4-20 x .550 Pan Head Torx (T-30)
(Superseded to 703961)

$4.49

$

In Stock, Qty 20+

0

24

Snapper 7101774

SHOULDER BOLT, #10-24
(Superseded to 7101774YP)

$8.49

$

In Stock, only 2 left!

0

25

Snapper 7103306D

ROD, Lifter Link, WBM
(Superseded to 7103306DYP)

$40.99

$

Usually ships in 2-12 days

0

26

Snapper 7091552

WASHER, .219 x .500 x .049 Flat
(Superseded to 7091552SM)

$3.99

$

In Stock, Qty 16

0

27

Snapper 7091290

NUT, #10-24 UNC-2B Nyloc
(Superseded to 703412)

$4.49

$

In Stock, only 4 left!

0

28

Snapper 7104525

SPACER, Shaft, 1/2"
(Superseded to 7104525YP)

$4.49

$

In Stock, only 2 left!

0

29

Snapper 7104518

BUSHING, Bearing, Rear Wheel Drive
(Superseded to 7104518YP)

$4.49

$

In Stock, Qty 20+

0

30

Snapper 7500540

WHEEL ASSEMBLY, 8 x 2 Idle, Snapper Tread, BB, Charcoal Gray
(Superseded to 7500540YP)

Note: (includes two ball bearings, p/n 7101380)

$40.99

$

In Stock, only 2 left!

0
