SPV 22675HWFC (7800264) - Snapper 22" Walk-Behind Mower, 6.75hp Transmission (22") Parts Diagram

22" Walk-Behind Mower, 6.75hp

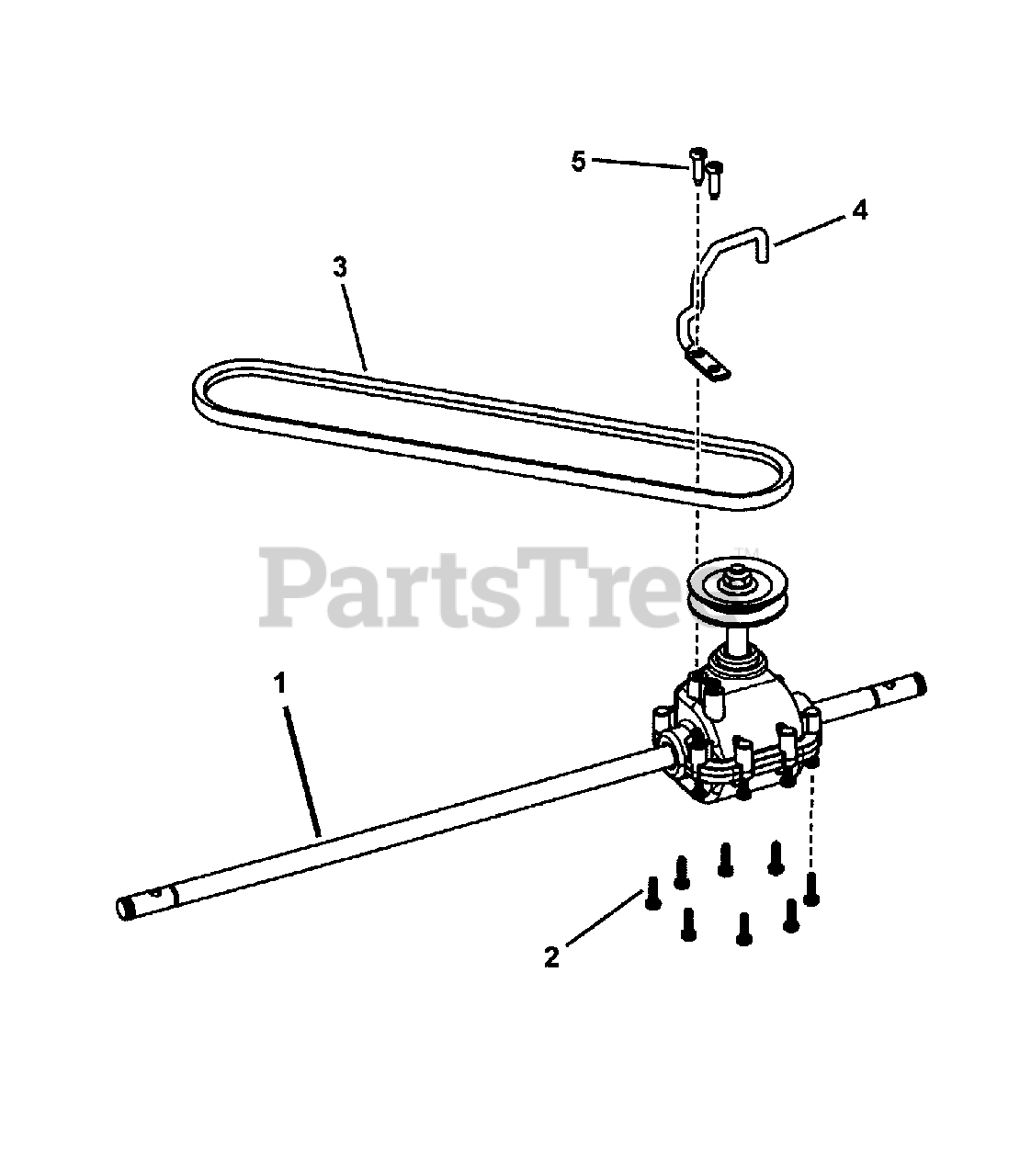

Transmission (22") Parts Diagram

  • Title
1

Snapper 7100857

TRANSMISSION, Rocker, 22" WBM HW, VS
(Superseded to 7100857YP)

$114.99

$

Usually ships in 2-12 days

0

2

Snapper 7900032

SCREW, 7mm x 1 x .550 AB Point
(Superseded to 7900032YP)

$4.49

$

In Stock, only 1 left!

0

3

Snapper 7100913

BELT, Traction Drive, 22" Pivot Handle
(Superseded to 7100913YP)

Note: 3L Section; 31.94 effective length

$13.99

$

In Stock, only 1 left!

0

4

Snapper 7101009

BELT GUIDE, Transmission, 22" WBM
(Superseded to 7101009YP)

$13.99

$

Usually ships in 2-12 days

0

5

Snapper 7091195

SCREW, #10-16 x 3/4" Pan Head Self-Tap, Combo
(Superseded to 7091195SM)

$4.49

$

In Stock, only 1 left!

0
