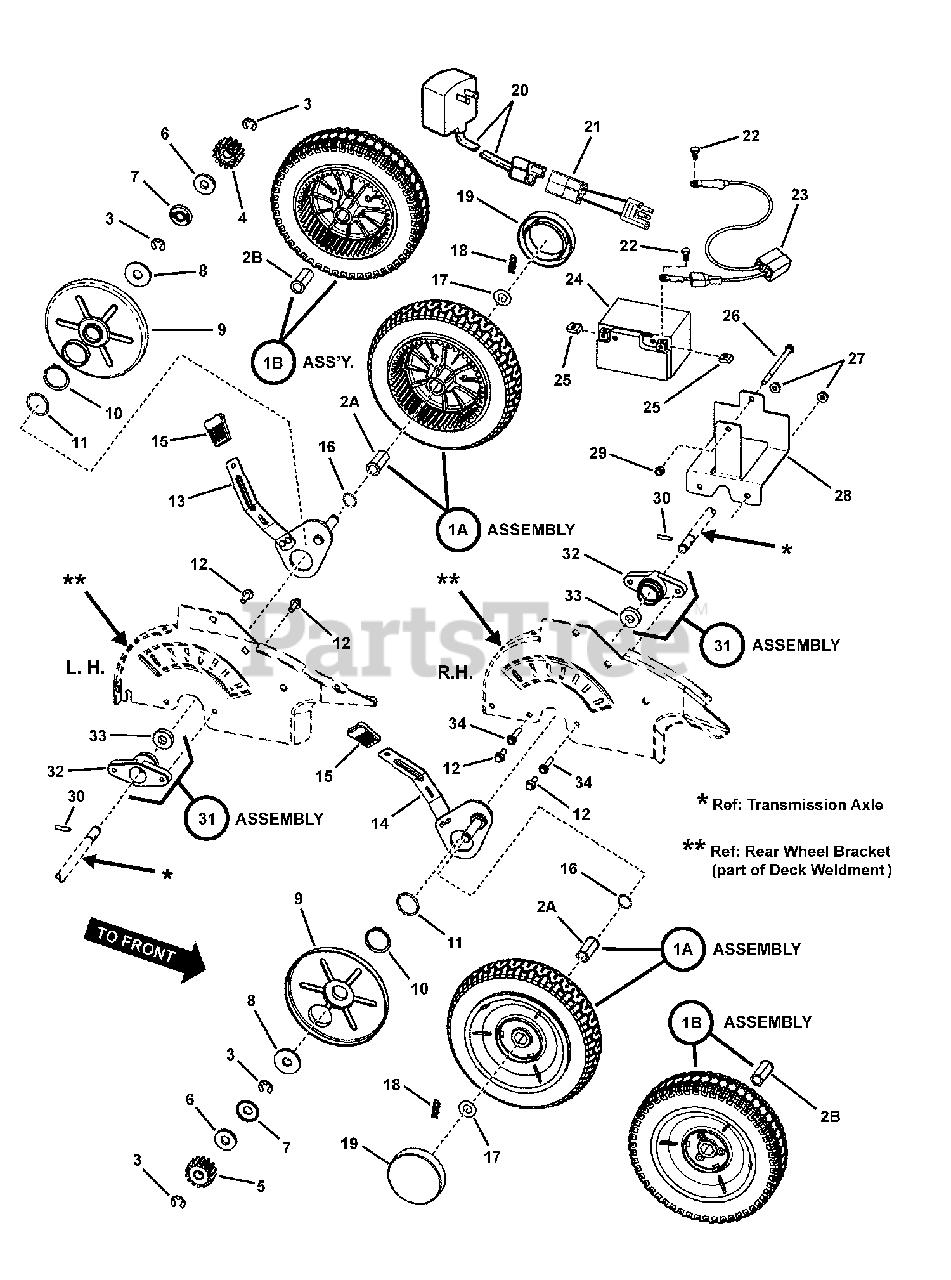

SPV 21E1 (7800093) - Snapper 21" Walk-Behind Mower, 6.5hp REAR WHEELS (Self-Propelled) Parts Diagram

21" Walk-Behind Mower, 6.5hp

REAR WHEELS (Self-Propelled) Parts Diagram

  • Title

1A

Snapper 7100184

ASSEMBLY, 9" x 2" Gear Wheel, LS Tread
(Superseded to 7104781YP)

Note: w/powdered metal bushing

$40.99

$

In Stock, only 1 left!

0

1A

Snapper 7100175

ASSEMBLY, 9" x 2" Gear Wheel, LS Tread
(Superseded to 7104781YP)

Note: w/nylon bushing

$40.99

$

In Stock, only 1 left!

0

1B

Snapper 7101104

ASSEMBLY, 9" x 2" Gear Wheel, Double Bar II Tread
(Superseded to 7104781YP)

Note: w/nylon bushing

$40.99

$

In Stock, only 1 left!

0

2A

Snapper 7073618

BUSHING, Wheel (powdered metal)
(Superseded to 7073618YP)

Note: part of item 7100184

$7.99

$

In Stock, only 1 left!

0

2B

Snapper 7024541

BUSHING, Wheel (nylon)
(Superseded to 7073618YP)

Note: part of item 7100175

$7.99

$

In Stock, only 1 left!

0

3

Snapper 7014341

RETAINING RING
(Superseded to 703976)

Note: Waldes 5133-50

$4.49

$

In Stock, Qty 10

0

4

Snapper 7024550

PINION, LH Drive
(Superseded to 7024550YP)

$8.99

$

In Stock, only 1 left!

0

5

Snapper 7024549

PINION, RH Drive
(Superseded to 7024549YP)

$8.49

$

Usually ships in 2-12 days

0

6

Snapper 7026479

SEAL, Pinion (Felt)
(Superseded to 7026479YP)

$4.49

$

Usually ships in 2-12 days

0

7

Snapper 7026478

RETAINER, Pinion Seal
(Superseded to 7026478YP)

$3.99

$

Usually ships in 2-12 days

0

8

Snapper 7100644

WASHER, .531 x 1.25 x .06 thick
(Superseded to 7100644YP)

Note: replaces 7091194

$3.99

$

Usually ships in 2-12 days

0

9

Snapper 7078269

SHIELD, Dust
(Superseded to 7078269YP)

$6.99

$

Usually ships in 2-12 days

0

10

Snapper 7900010

SNAP RING, 1-3/8"
(Superseded to 7900010YP)

Note: Truarc 5100-137

$4.49

$

Usually ships in 2-12 days

0

11

Snapper 7100626

O-RING, Buna N, 124
(Superseded to 7100626YP)

$3.99

$

Usually ships in 2-12 days

0

12

Snapper 7090699

BOLT, 1/4-20 x 3/4" Hex Flange Lock
(Superseded to 1935450SM)

$4.49

$

Usually ships in 2-12 days

0

13

Snapper 7078235

ASSEMBLY, Axle Arm, Left Rear
(Superseded to 7078235YP)

$84.99

$

Usually ships in 2-12 days

0

14

Snapper 7078236

ASSEMBLY, Axle Arm, Right Rear
(Superseded to 7078236YP)

$65.99

$

In Stock, only 1 left!

0

15

Snapper 7100633

GRIP, Height Latch - Black (1.3" Wide)
(Superseded to 7103793YP)

Note: replaces 7027702 (voided)

$4.49

$

In Stock, Qty 9

0

16

Snapper 7100627

O-RING, Buna N, 018
(Superseded to 7100627YP)

$3.49

$

Usually ships in 2-12 days

0

17

Snapper 7091192

WASHER, 1/2" Flat
(Superseded to 7091192SM)

$3.99

$

Usually ships in 2-12 days

0

18

Snapper 7091193

COTTER, Hairpin
(Superseded to 7091193YP)

$5.99

$

Usually ships in 2-12 days

0

19

Snapper 7100114

HUB CAP, 3-1/4" Diameter (black)
(Superseded to 7100114YP)

$3.49

$

Usually ships in 2-12 days

0

20

Snapper 7103988

* CHARGER, Battery 120V/12V
(Superseded to 770625)

Note: (Was 206838 or 7018834)

$59.99

$

In Stock, only 2 left!

0

21

Snapper 7100794

* ADAPTER, Charger
(Superseded to 7100794YP)

$11.99

$

Usually ships in 2-12 days

0

22

Snapper 7043977

* SCREW, #10-24 x 1/2" Pan Head Machine
(Superseded to 7043977YP)

Note: included with battery

$

$

Not available

23

Snapper 7015488

* WIRING HARNESS, Battery
(Superseded to 7015488YP)

Note: included with battery

$14.99

$

In Stock, only 1 left!

0

24

Snapper 7100204

* BATTERY, 12V Sealed Lead Acid
(Superseded to 7067012YP)

Note: includes 7015488, battery harness

$93.99

$

Usually ships in 2-12 days

0

25

Snapper 7090932

* NUT, #10-24 Square
(Superseded to 7090932YP)

Note: included with battery

$6.49

$

Usually ships in 2-12 days

0

26

Snapper 7900011

* SCREW 1/4-20 x 4" Hex Head Cap, GR 5
(Superseded to 7900011MA)

$4.99

$

Usually ships in 2-12 days

0

27

Snapper 7091584

* NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0

28

Snapper 7300131

* BRACKET, Battery
(Superseded to 7300131YP)

$21.99

$

Usually ships in 2-12 days

0

29

Snapper 7076978

* NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

30

Snapper 7024749

PAWL, 3/16" O.D.
(Superseded to 7024749YP)

$19.99

$

Usually ships in 2-12 days

0

31

Snapper 7500041

ASSEMBLY, Axle Bearing
(Superseded to 7600184YP)

Note: includes items 32 & 33

$24.99

$

Usually ships in 2-12 days

0

32

Snapper 7078214

HOUSING, Axle Bearing
(Superseded to 7078214YP)

$

$

Not available

33

Snapper 7078243

BALL BEARING, Axle
(Superseded to 7078243YP)

Note: .50 I.D. x 1.125 O.D. x .3125 thick

$10.99

$

In Stock, Qty 18

0

34

Snapper 7092016

* SCREW, 1/4-20 x 1-1/2" Hex Washer Self Tap
(Superseded to 7092016YP)

$3.99

$

Usually ships in 2-12 days

0
