SPV 21E1 (7800093) - Snapper 21" Walk-Behind Mower, 6.5hp REAR DECK BRACKETS & IDLER ARM Parts Diagram

21" Walk-Behind Mower, 6.5hp

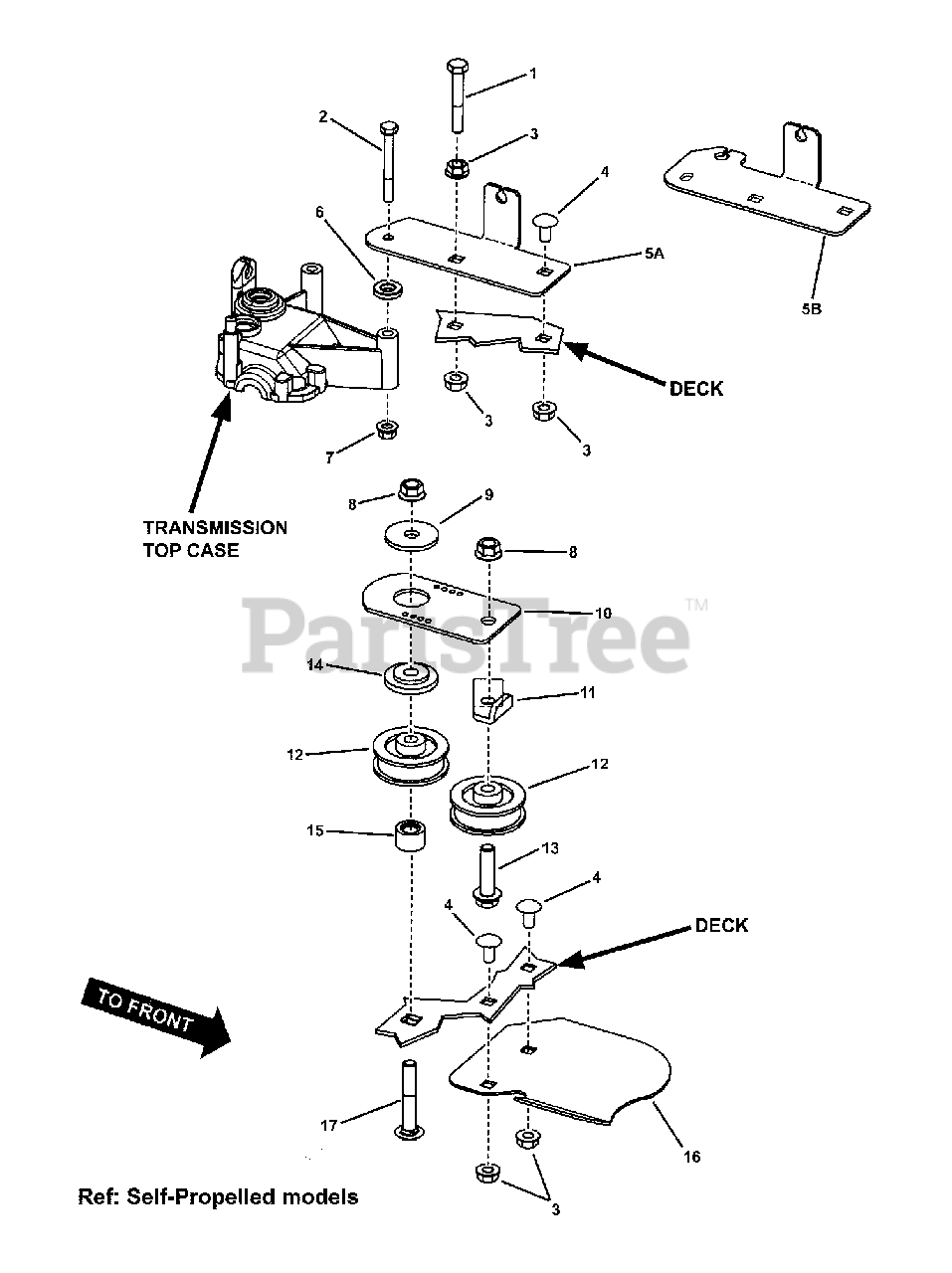

REAR DECK BRACKETS & IDLER ARM Parts Diagram

  • Title
1

Snapper 7027174

SCREW, 5/16-18 x 2" Hex Head Cap, GR 5
(Superseded to 703867)

$4.99

$

In Stock, only 4 left!

0

2

Snapper 7091256

SCREW, 1/4-20 x 2-1/4" Hex Head Cap, GR 5
(Superseded to 704291)

$5.49

$

Usually ships in 2-12 days

0

3

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

4

Snapper 7090799

BOLT, 5/16-18 x 5/8" Round Head Short Square Neck Carriage
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

5A

Snapper 7300047

BRACKET, Transmission Mounting
(Superseded to 7300047YP)

$25.99

$

Usually ships in 2-12 days

0

5B

Snapper 7300494

BRACKET, Transmission Mounting
(Superseded to 7300494AYP)

$8.49

$

Usually ships in 2-12 days

0

6

Snapper 7100122

SPACER, 3/8 x 13/16 x 5/32
(Superseded to 7100122YP)

$3.49

$

Usually ships in 2-12 days

0

7

Snapper 7091545

NUT, 1/4-20 Hex Top Lock Flange
(Superseded to 703916)

$4.99

$

In Stock, only 2 left!

0

8

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

9

Snapper 7091331

WASHER, 13/32 x 1-1/2 x 1/8" Flat
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

10

Snapper 7300020

IDLER ARM, Belt Drive
(Superseded to 7300020YP)

$18.99

$

Usually ships in 2-12 days

0

11

Snapper 7300196

BELT GUIDE, Idler
(Superseded to 7300196YP)

$20.99

$

Usually ships in 2-12 days

0

12

Snapper 7100856

PULLEY, Flat Idler, Plastic
(Superseded to 7100856YP)

Note: replaces 7078245

$

$

Not available

13

Snapper 7090614

BOLT, 3/8-16 X 1-1/2" Hex Flange Lock, GR 5
(Superseded to 7090614YP)

$3.49

$

Usually ships in 2-12 days

0

14

Snapper 7100062

SPACER, Pivot, Belt Idler
(Superseded to 7100062YP)

$4.49

$

Usually ships in 2-12 days

0

15

Snapper 7100063

SPACER, Idler
(Superseded to 7100063YP)

$4.49

$

Usually ships in 2-12 days

0

16

Snapper 7300013

SHIELD, Debris
(Superseded to 7300013AYP)

$7.99

$

Usually ships in 2-12 days

0

17

Snapper 7900009

BOLT, 3/8-16 x 2-1/4" Short Square Neck Carriage, GR 5
(Superseded to 7900009SM)

$3.99

$

In Stock, only 1 left!

0
