SPS 322T (80630) - Snapper Sprayer, 3hp Pressure Relief Valve Parts Diagram

Sprayer, 3hp

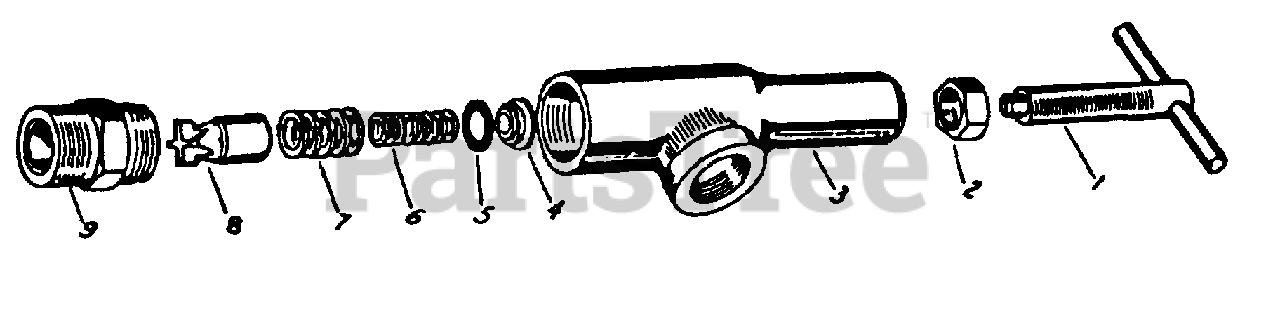

Pressure Relief Valve Parts Diagram

  • Title
1

Snapper 0800700

Adj. Screw Assy. 5896 Brass

$

$

Currently unavailable

2

Snapper 0800701

Locknut 5898 Brass

$

$

Currently unavailable

3

Snapper 0800702

Body 68 18-1/2 Brass

$

$

Currently unavailable

4

Snapper 0800703

Spring Retainer 6545 Brass

$

$

Currently unavailable

5

Snapper 0800704

Gasket 5899-BU Buna N

$

$

Currently unavailable

6

Snapper 0800705

Inside Spring 6547-SS

$

$

Currently unavailable

7

Snapper 0800706

Outside Spring 6546-SS

$

$

Currently unavailable

8

Snapper 0800707

Guide Seat 9897 Brass

$

$

Currently unavailable

9

Snapper 0800708

Inlet Adapter 6789 Brass

$

$

Currently unavailable

Snapper 0800763

Relief Valve Repair Kit

Note: (Includes items 4-9)

$

$

Currently unavailable

Snapper 1000094

Pressure Relief Valve

$

$

Currently unavailable
