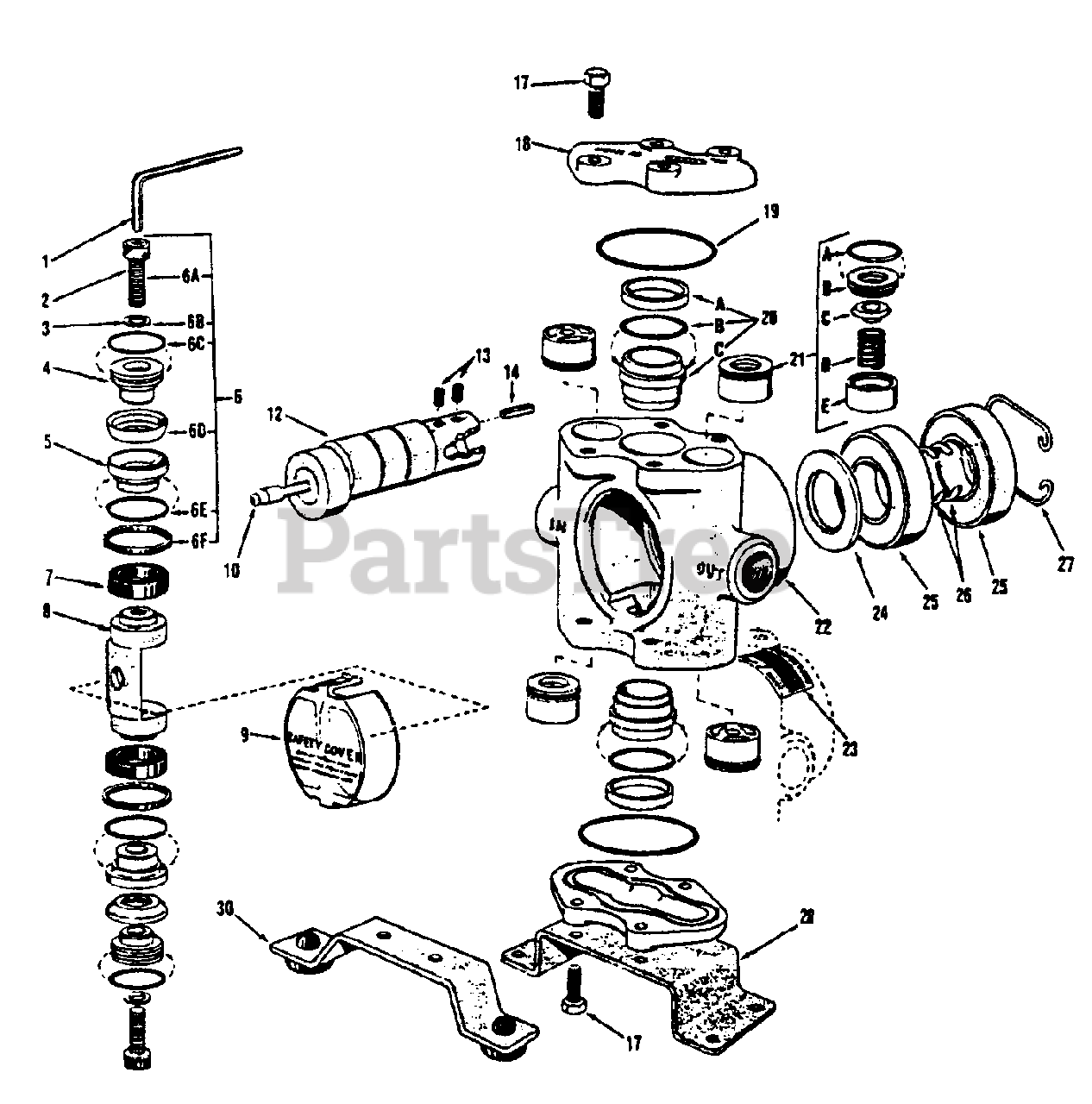

SPS 322T (80630) - Snapper Sprayer, 3hp Hydro Pump Parts Diagram

Sprayer, 3hp

Hydro Pump Parts Diagram

  • Title
1

Snapper 0800800

Wrench 3020-0001

$

$

Currently unavailable

2

Snapper 0800801

Piston Cap Screw 2220-0012

$

$

Currently unavailable

3

Snapper 0800802

Washer 2270-0011

$

$

Currently unavailable

4

Snapper 0800804

Piston cap Spreader 1830-0017

$

$

Currently unavailable

5

Snapper 0800805

Cup Backing Plate 1410-0030

$

$

Currently unavailable

6

Snapper 0800803

* Piston Kit Leather Cups 3430-0007

$

$

Currently unavailable

7

Snapper 0800806

Piston Guide 1440-0004

$

$

Currently unavailable

8

Snapper 0800807

Connecting Rod 0502-5300

$

$

Currently unavailable

9

Snapper 0800808

Safety Cover 0608-5300

$

$

Currently unavailable

10

Snapper 0800813

Grease Fitting 2405-0006

$

$

Currently unavailable

11

Snapper 0800811

Crankpin Retainer 1600-0014 (Not shown)

$

$

Currently unavailable

12

Snapper 5500-5330

** Crankshaft Hollow Shaft Pump

Note: (Consists of items #10-14 & 24-26)

$

$

Currently unavailable

13

Snapper 0800050

Set Screw 2230-0017 Hollow Shaft Pump

$

$

Currently unavailable

14

Snapper 0800815

Spline Key 1610-0011 Hollow Shaft Pump

$

$

Currently unavailable

17

Snapper 0800872

Cylinder Head Bolts 2210-0062

$

$

Currently unavailable

18

Snapper 0800871

Cylinder Head 0204-5300C

$

$

Currently unavailable

19

Snapper 0800818

O-Ring Cylinder Head 1720-0038

$

$

Currently unavailable

20

Snapper 0800867

Cylinder Sleeve Assy 3430-0209

$

$

Currently unavailable

20A

Snapper 0800820

Cylinder Sleeve Assy 3550-0019

$

$

Currently unavailable

20B

Snapper 0800819

Cylinder Sleeve Ring 1720-0079

$

$

Currently unavailable

20C

Snapper 0800820

Cylinder Sleeve Assy 3550-0019

$

$

Currently unavailable

21

Snapper 0800868

Unitized Valve Assy 3430-0197

$

$

Currently unavailable

22

Snapper 0800823

Body 0100-5300C

$

$

Currently unavailable

23

Snapper 0800830

Decal 6031-0009

$

$

Currently unavailable

24

Snapper 0800824

Bearing Shield 2130-0007

$

$

Currently unavailable

25

Snapper 0800826

Main Ball Bearing 2008-0001

$

$

Currently unavailable

26

Snapper 0800827

Bearing Ret. Ring (Shaft) 1810-0013

$

$

Currently unavailable

27

Snapper 0800869

Bearing Ret. Ring (Housing) 1820-0025

$

$

Currently unavailable

28

Snapper 0800829

Mounting Base 1510-0020

$

$

Currently unavailable

30

Snapper 1080068

Torque Arm 2820-0028

$

$

Currently unavailable

Snapper 0800832

Note: * Leather Cup & Guide Kit 3430-0008

Note: (Consists of items #6 and 2 of #7)

$

$

Currently unavailable

Snapper 0800866

Note: ** Crankshaft Sub-Assembly 5501-5330

Note: (Consists of items #10-14)

$

$

Currently unavailable
