SPS 322T (80630) - Snapper Sprayer, 3.5hp Wand Parts Diagram

Sprayer, 3.5hp

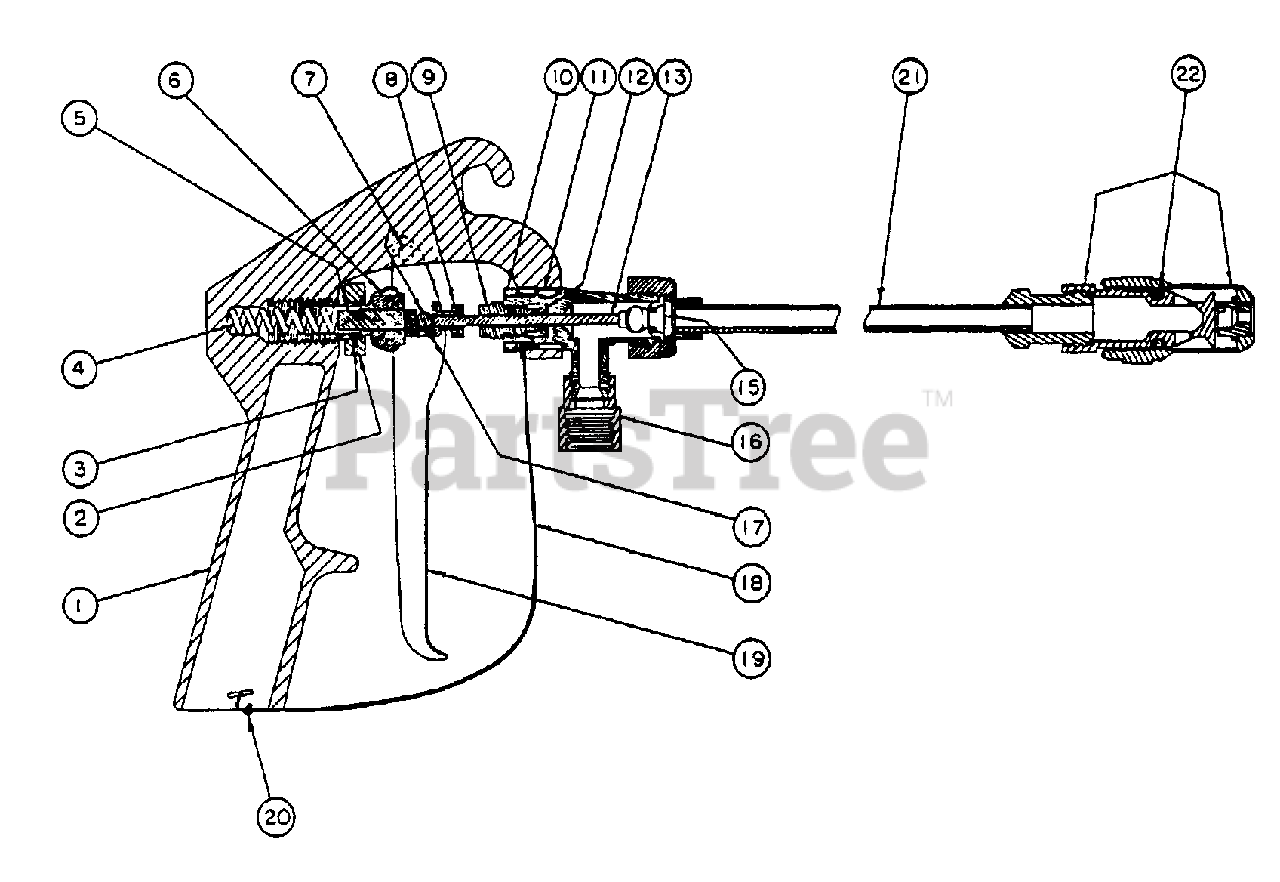

Wand Parts Diagram

  • Title
1

Snapper 0800747

Body Alum. 16054-I-AL

$

$

Currently unavailable

2

Snapper 0800748

Safety Lock Cam 9422-AL

$

$

Currently unavailable

3

Snapper 0800749

Socket Hd. Set Scw. 9423-L

$

$

Currently unavailable

4

Snapper 0800750

Main Spring 16053-2-SS

Note: (Included in Spare Parts Kit)

$

$

Currently unavailable

5

Snapper 0800731

Spring Stud 7591-ALEF

$

$

Currently unavailable

6

Snapper 0800751

Safety Lock Scw. 9421-INP

$

$

Currently unavailable

7

Snapper 0800752

Rivet 8038-ICP

$

$

Currently unavailable

8

Snapper 0800735

Stem Nut 7484-INP

$

$

Currently unavailable

9

Snapper 0800753

Packing Scw. 16071-NP

$

$

Currently unavailable

10

Snapper 0800736

Lock Nut 7486-ICP

$

$

Currently unavailable

11

Snapper 0800739

Key Steel 7892-ICP

$

$

Currently unavailable

12

Snapper 0800754

Cup Packing 14255-I-BU

Note: (Included in Spare Parts Kit)

$

$

Currently unavailable

13

Snapper 0800755

Main Stem ASB. 7482-I

Note: (Included in Spare Parts Kit)

$

$

Currently unavailable

14

Snapper 0800756

Cap 7890-NP

Note: (Not Shown)

$

$

Currently unavailable

15

Snapper 0800757

Valve Seat 7490-CTEF

Note: (Included in Spare Parts Kit)

$

$

Currently unavailable

16

Snapper 0800758

Inlet Body 16052-NP

$

$

Currently unavailable

17

Snapper 0800732

Trigger Guide 7481-INP

$

$

Currently unavailable

18

Snapper 0800759

Trigger Guard 9539-INP

$

$

Currently unavailable

19

Snapper 0800760

Trigger 14252-INP

$

$

Currently unavailable

20

Snapper 0800761

Pan Hd. Scw. 9697-INP

$

$

Currently unavailable

21

Snapper 1000102

Brass Extension 4671-24

$

$

Currently unavailable

22

Snapper 1000104

Adjustable Conejet 5780

$

$

Currently unavailable

Snapper 1000125

Spare Parts Kit

Note: (Incl. items #4, 12, 13, 15)

$

$

Currently unavailable
