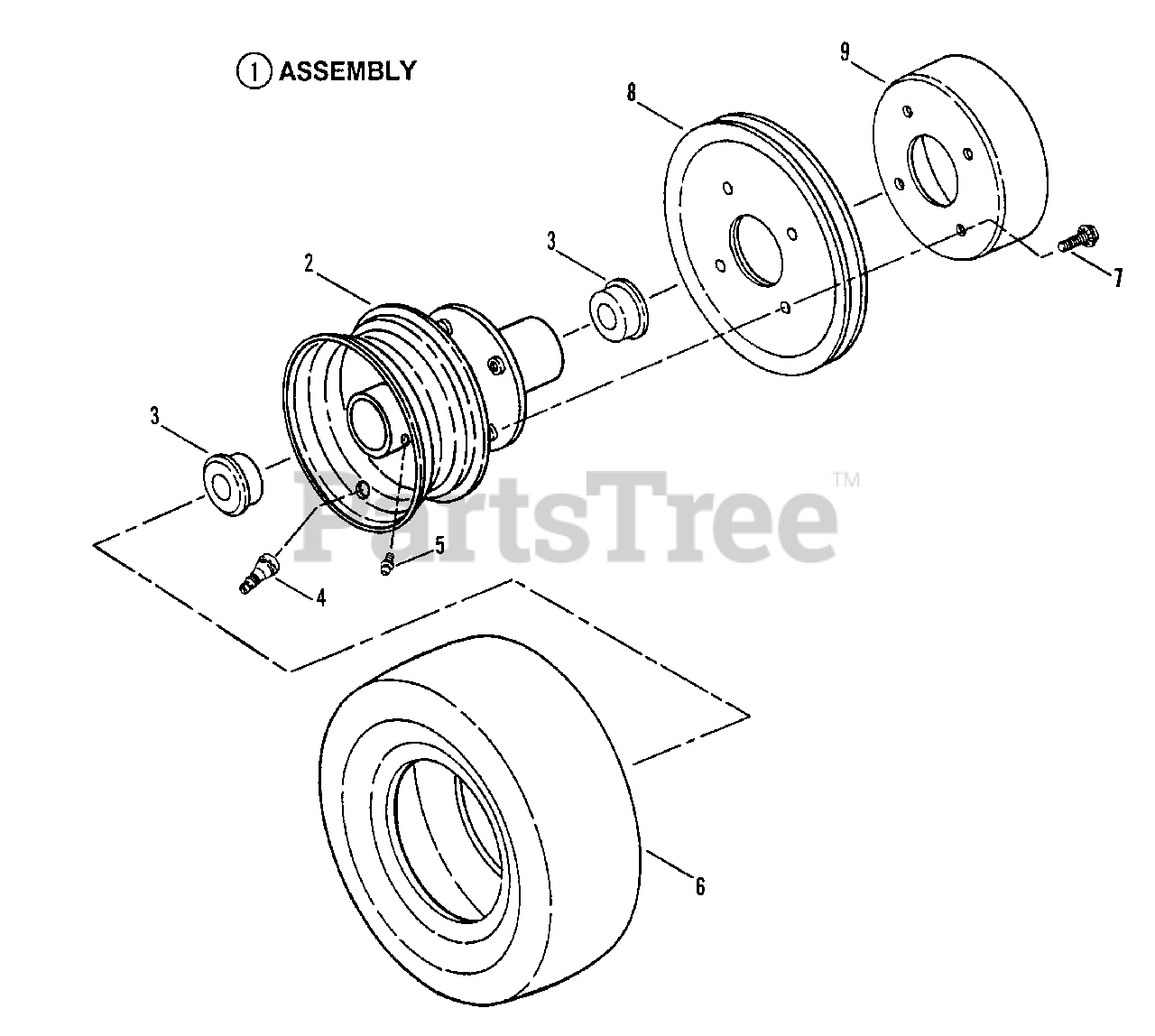

SPP 90KW (80893) - Snapper Walk-Behind Mower, 9hp Traction, Rear Wheel Assembly Parts Diagram

Walk-Behind Mower, 9hp

Traction, Rear Wheel Assembly Parts Diagram

  • Title
1

Snapper 7028902

ASSEMBLY, Tire & Hub

Note: (Includes items 2 thru 6)

$

$

Currently unavailable

2

Snapper 7035413

HUB, Weldment
(Superseded to 7035413YP)

$119.99

$

Usually ships in 2-12 days

0

3

Snapper 7019169

BEARING, Wheel
(Superseded to 7019169YP)

$35.99

$

In Stock, only 4 left!

0

4

Snapper 7027231

VALVE, Air (Snap-In)
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

5

Snapper 7076998

FITTING, Lube
(Superseded to 703153)

$3.99

$

In Stock, Qty 12

0

6

Snapper 7035412

TIRE, 4.10/3.50 x 6" Tubeless

$

$

Not available

7

Snapper 7091591

BOLT, 5/16-18 x 1" Hex Flange Lock, Grade 5
(Superseded to 7091591SM)

$4.49

$

In Stock, only 2 left!

0

8

Snapper 7017531

PULLEY, 8"
(Superseded to 7017531YP)

$41.99

$

Usually ships in 2-12 days

0

9

Snapper 7023516

DRUM, Brake, 6"
(Superseded to 7023516YP)

$39.99

$

Usually ships in 2-12 days

0
