SPLH 221KHE (84398) - Snapper Walk-Behind Mower, 22hp 52" DECK IDLER ASSEMBLY Parts Diagram

Walk-Behind Mower, 22hp

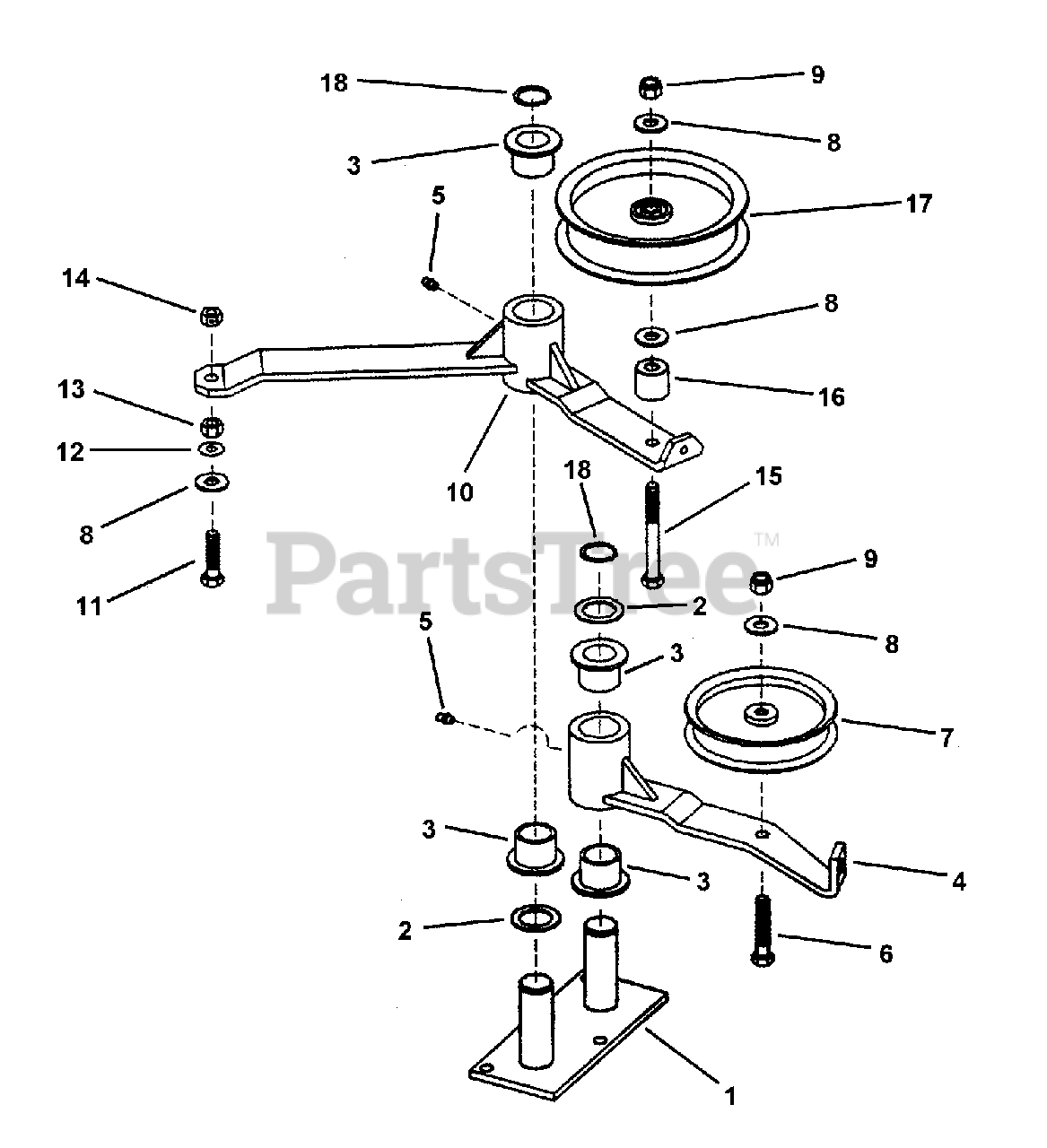

52" DECK IDLER ASSEMBLY Parts Diagram

  • Title

1

Snapper 7042465

WELDMENT, Idler Pivot
(Superseded to 7042465YP)

$99.99

$

Usually ships in 2-12 days

0

2

Snapper 7023747

BUSHING, Machine
(Superseded to 7023747YP)

$5.49

$

In Stock, Qty 20+

0

3

Snapper 7046626

BUSHING, Flange
(Superseded to 7023556YP)

$8.49

$

In Stock, Qty 20+

0

4

Snapper 7042452

WELDMENT, Secondary Idler Arm
(Superseded to 7042452YP)

$158.99

$

Usually ships in 2-12 days

0

5

Snapper 7076998

LUBE FITTING, 1/4-28 Straight
(Superseded to 703153)

$3.99

$

In Stock, Qty 12

0

6

Snapper 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, only 1 left!

0

7

Snapper 7029273

PULLEY, Idler
(Superseded to 7029273YP)

$

$

Not available

8

Snapper 7091300

WASHER, .44 x 1.0 x .08 Flat
(Superseded to 7090517SM)

$4.49

$

In Stock, Qty 8

0

9

Snapper 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

10

Snapper 7042775

WELDMENT, Primary Idler Arm, SPA521
(Superseded to 7042775YP)

$192.99

$

Usually ships in 2-12 days

0

11

Snapper 7091497

SCREW, 3/8-16 x 1-1/2" Hex Head Cap, GR 5
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

12

Snapper 7013847

RETAINER, 3/8" Bolt
(Superseded to 703986)

$4.49

$

Usually ships in 2-12 days

0

13

Snapper 7091302

NUT, 3/8-16 Hex, GR 5
(Superseded to 7091302SM)

$4.49

$

Usually ships in 2-12 days

0

14

Snapper 7091585

NUT, 3/8-16 Hex Center lock
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

15

Snapper 7027220

BOLT, 3/8-16 x 3-1/4" Hex Head, GR 5
(Superseded to 703874)

$4.49

$

In Stock, Qty 11

0

16

Snapper 7035657

SPACER, Idler Pulley
(Superseded to 7035657YP)

$53.99

$

Usually ships in 2-12 days

0

17

Snapper 7034422

PULLEY, Idler (5.00 O. D.)
(Superseded to 7034422SM)

$38.99

$

In Stock, Qty 20+

0

18

Snapper 7012709

RING, 1" External Retaining
(Superseded to 703993)

$3.49

$

In Stock, Qty 13

0
