SPLH 220KHE (84282) - Snapper Walk-Behind Mower, 22hp Loop Handle & Control Assemblies Parts Diagram

Walk-Behind Mower, 22hp

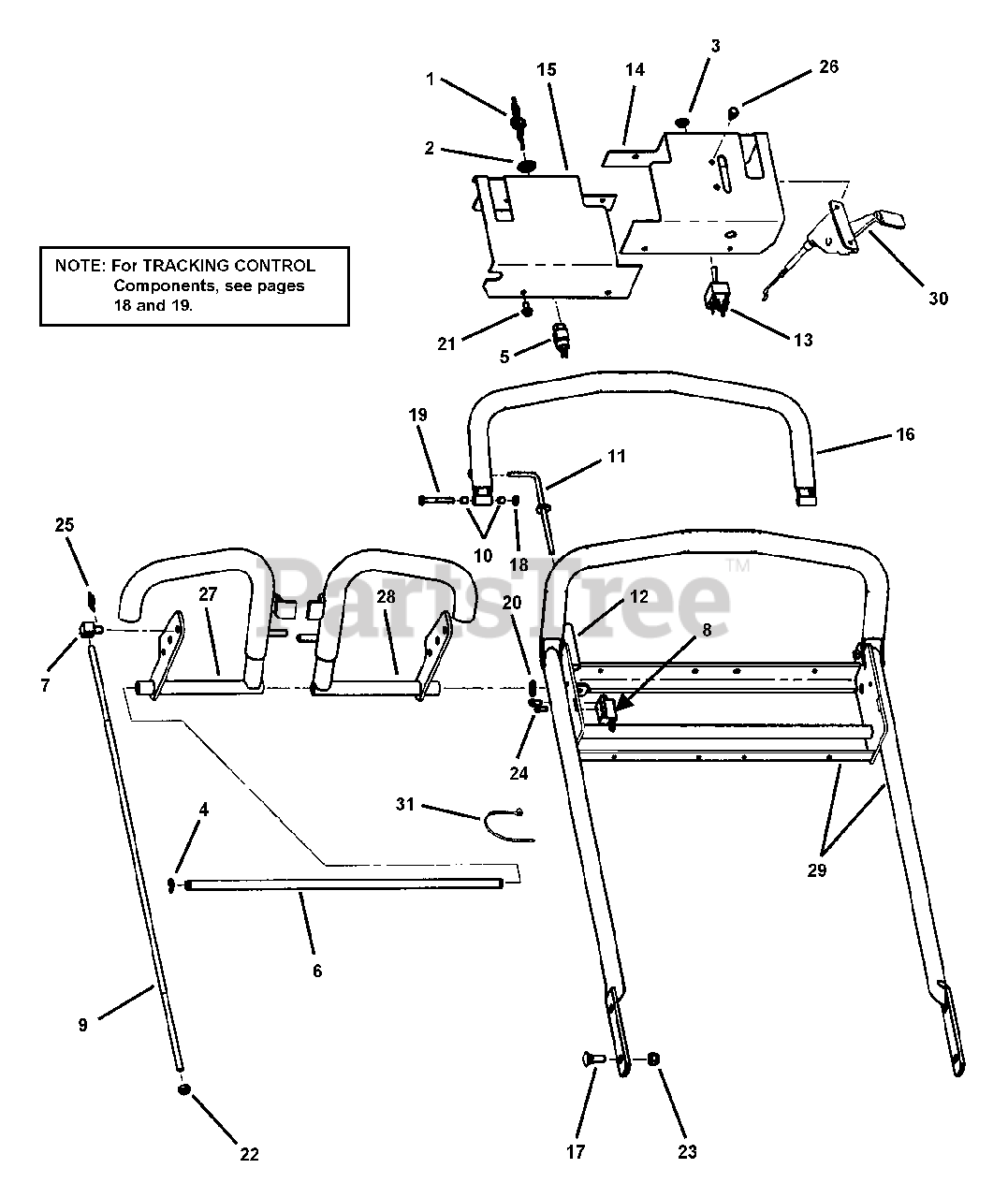

Loop Handle & Control Assemblies Parts Diagram

  • Title
1

Snapper 7011138

KEY, Ignition (pair)
(Superseded to 7011138YP)

$7.49

$

In Stock, Qty 7

0

2

Snapper 7012685

NUT, 5/8-32 Hex (Special)
(Superseded to 7012685YP)

$3.99

$

Usually ships in 2-12 days

0

3

Snapper 7012686

NUT, 1/2-27 (Special)
(Superseded to 7012686YP)

$5.49

$

Usually ships in 2-12 days

0

4

Snapper 7014341

E-RING, 1/2"
(Superseded to 703976)

$4.49

$

In Stock, Qty 9

0

5

Snapper 7017817

SWITCH, ON-OFF
(Superseded to 7017817YP)

Note: (Except Kohler 18HP)

$31.99

$

In Stock, only 1 left!

0

Snapper 7027698

SWITCH, Ignition
(Superseded to 7027698YP)

Note: (Kohler 18HP)

$32.99

$

In Stock, Qty 9

0

6

Snapper 7022166

ROD, Pivot
(Superseded to 7022166YP)

$31.99

$

Usually ships in 2-12 days

0

7

Snapper 7027141

SWIVEL
(Superseded to 7027141YP)

$18.99

$

Usually ships in 2-12 days

0

8

Snapper 7027225

SWITCH, OPC
(Superseded to 7027225YP)

Note: (Loop Handle except for Kohler 18HP)

$

$

Not available

Snapper 7023355

SWITCH, OPC
(Superseded to 7023355YP)

Note: (Kohler 18HP)

$17.99

$

In Stock, Qty 20+

0

9

Snapper 7028856

ROD, Traction
(Superseded to 7028856YP)

$18.99

$

In Stock, only 1 left!

0

10

Snapper 7028857

BEARING
(Superseded to 7028857YP)

$9.49

$

Usually ships in 2-12 days

0

11

Snapper 7028861

ROD, OPC
(Superseded to 7074648YP)

$12.99

$

Usually ships in 2-12 days

0

12

Snapper 7029139

SPRING
(Superseded to 7029139YP)

$7.49

$

Usually ships in 2-12 days

0

13

Snapper 7029715

SWITCH, Toggle
(Superseded to 7029715YP)

$59.99

$

In Stock, only 2 left!

0

14

Snapper 7034827

PANEL, Left
(Superseded to 7034827YP)

$37.99

$

Usually ships in 2-12 days

0

15

Snapper 7034828

PANEL, Right
(Superseded to 7034828YP)

$37.99

$

Usually ships in 2-12 days

0

16

Snapper 7041748

BAIL, OPC (Weldment)
(Superseded to 7041748YP)

$143.99

$

Usually ships in 2-12 days

0

17

Snapper 7091640

BOLT, 3/8-16 x 1" Carriage, Grade 2
(Superseded to 703814)

Note: Was 90747

$4.49

$

In Stock, only 4 left!

0

18

Snapper 7090977

NUT, 1/4-20 Hex Jam
(Superseded to 7090977YP)

$2.99

$

In Stock, only 2 left!

0

19

Snapper 5025010X14

BOLT, 1/4-20 X 1-3/4" GD5 YZ
(Superseded to 5025010X14SM)

Note: Was 91003

$3.99

$

In Stock, only 1 left!

0

20

Snapper 7091030

BUSHING, 1/2" Machine
(Superseded to 7091030YP)

$2.99

$

Usually ships in 2-12 days

0

21

Snapper 7091122

SCREW, 1/4-20 x 1/2" Hex Washer Self-tap
(Superseded to 7091122SM)

$3.99

$

In Stock, only 1 left!

0

22

Snapper 7091297

NUT, 5/16-24 Grade 5
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

23

Snapper 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

24

Snapper 7091312

SCREW, #12-14 x 1/2" Hex Washer Head, Self-tap, Grade 5

$

$

Currently unavailable

25

Snapper 7091594

COTTER-PIN, 1/2" Self-Locking
(Superseded to 7091594SM)

$2.99

$

In Stock, only 2 left!

0

26

Snapper 7090290

SCREW, 1/4-20 x 3/4" Hex Washer Self-tap
(Superseded to 703466)

Note: Was 91686

$3.99

$

In Stock, Qty 10

0

27

Snapper 7034820

LEVER, Traction (Right Hand) (Weldment)

$

$

Not available

28

Snapper 7034821

LEVER, Traction (Left Hand) (Weldment)

$

$

Not available

29

Snapper 7043869

HANDLE, Loop (Weldment)

Note: Was 41762

$

$

Not available

30

Snapper 7029043

CONTROL, Throttle (Briggs)

$

$

Not available

Snapper 7029100

CONTROL, Throttle
(Superseded to 7029100YP)

Note: (Kawasaki & Kohler 14HP)

$29.99

$

Usually ships in 2-12 days

0

Snapper 7072597

CONTROL, Throttle
(Superseded to 7072597YP)

Note: (Kawasaki 17HP)

$

$

Not available

Snapper 7036431

CONTROL, Throttle
(Superseded to 7036431YP)

Note: (Kohler 18HP)

$29.99

$

Usually ships in 2-12 days

0

31

Snapper 7012080

CABLE TIE, 7"
(Superseded to 7012080SM)

$4.99

$

Usually ships in 2-12 days

0

32

Snapper 7028889

WIRE HARNESS
(Superseded to 7028889YP)

Note: (Loop Handle except for Kohler 18HP); For illustration of wiring harness see "Electrical Component".

$115.99

$

Usually ships in 2-12 days

0

Snapper 7029070

WIRE HARNESS

Note: (Kohler 18HP)

$

$

Not available
