SPLH 173KW (82436) - Snapper Walk-Behind Mower, 17hp LH PUMP ASSEMBLY Parts Diagram

Walk-Behind Mower, 17hp

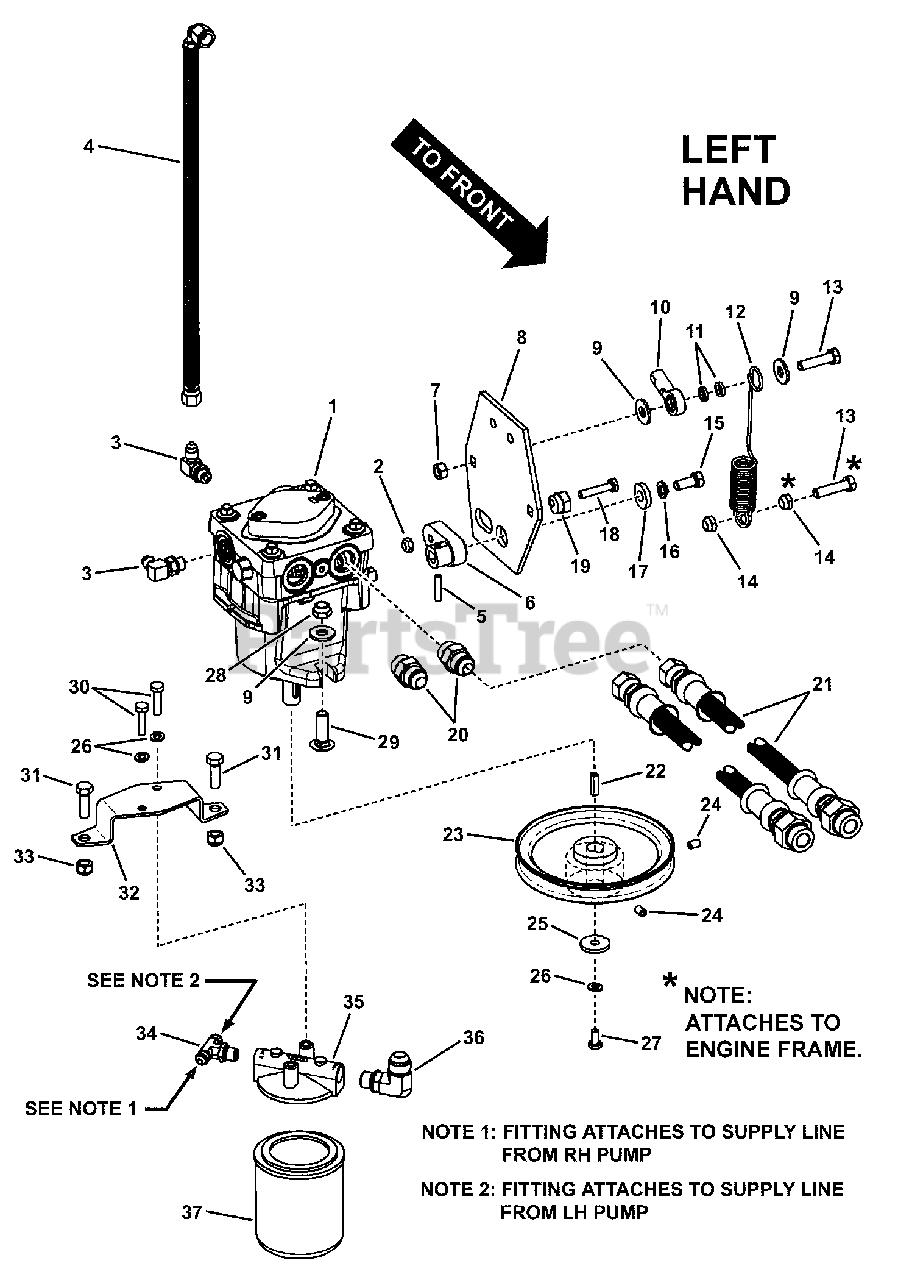

LH PUMP ASSEMBLY Parts Diagram

  • Title

1

Snapper 7011222

PUMP, Hydraulic, LH, HG, Pro Ser. 3

$

$

Currently unavailable

2

Snapper 7091705

NUT, 1/4-20 Hex Top Lock, GR B
(Superseded to 704319)

$3.49

$

Usually ships in 2-12 days

0

3

Snapper 7027111

FITTING, 90 Degree- "O"-Ring Boss

$

$

Not available

4

Snapper 7078030

HOSE ASSEMBLY, Pro Hydro Series 3 (13.5" hose length)
(Superseded to 7078030YP)

Note: filter to pump

$61.99

$

In Stock, only 1 left!

0

5

Snapper 7091721

ROLL PIN, 5mm x 25mm
(Superseded to 7091721YP)

$2.99

$

Usually ships in 2-12 days

0

6

Snapper 7028863

ARM, Pump
(Superseded to 7028863YP)

$18.99

$

Usually ships in 2-12 days

0

7

Snapper 7091575

NUT, 5/16-18 Hex Center Lock, GR 5 or B
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

8

Snapper 7072893

SHIFT ARM, Pump
(Superseded to 7072893YP)

$32.99

$

Usually ships in 2-12 days

0

9

Snapper 7091528

WASHER, 3/8" I.D. x 7/8" O.D. x 1/16" Flat
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

10

Snapper 7027139

ROD END, Pump Control Linkage (5/16-24 thread)
(Superseded to 7027139YP)

$18.99

$

Usually ships in 2-12 days

0

11

Snapper 7028907

BUSHING, Spring
(Superseded to 7028907YP)

$4.49

$

Usually ships in 2-12 days

0

12

Snapper 7072579

SPRING, Hydro
(Superseded to 7072579YP)

$14.99

$

Usually ships in 2-12 days

0

13

Snapper 5025011X10

BOLT, 5/16-18 X 1-1/4 GD5 YZ
(Superseded to 5025055X10YP)

$3.49

$

Usually ships in 2-12 days

0

14

Snapper 7091706

NUT, 5/16-18 Hex Top Lock, GR B
(Superseded to 7091706SM)

$3.99

$

Usually ships in 2-12 days

0

15

Snapper 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 7

0

16

Snapper 7091315

WASHER, .32 x .58 x .08 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

17

Snapper 7029000

SPACER, Blade Hub
(Superseded to 7029000YP)

$15.99

$

Usually ships in 2-12 days

0

18

Snapper 7090825

SCREW, 1/4-20 x 1-1/4, Hex Head Cap, GR 5
(Superseded to 7090825YP)

$4.49

$

Usually ships in 2-12 days

0

19

Snapper 7028862

ECCENTRIC
(Superseded to 7028862YP)

$7.49

$

Usually ships in 2-12 days

0

20

Snapper 7034926

FITTING, Hydraulic, Straight 3/4-16 UNF
(Superseded to 7034926YP)

$8.49

$

Usually ships in 2-12 days

0

21

Snapper 7029058

HOSE, Pump/Motor, High Pressure 21-1/2"
(Superseded to 7029058YP)

$127.99

$

Usually ships in 2-12 days

0

22

Snapper 7027199

KEY, M5 x M20
(Superseded to 7027199YP)

$3.49

$

In Stock, Qty 5

0

23

Snapper 7027131

PULLEY, 5.5 w/Set Screws
(Superseded to 7027131YP)

Note: Includes two 1/4-20 set screws

$134.99

$

Usually ships in 2-12 days

0

24

Snapper 5025283X3

SET SCREW, 1/4-20 X 3/8" CONE

$2.49

$

Usually ships in 2-12 days

0

25

Snapper 7091627

WASHER, 1/4" Flat
(Superseded to 7091627YP)

$4.99

$

In Stock, Qty 11

0

26

Snapper 7027223

WASHER, 1/4" I.D. Split Lock
(Superseded to 7027223SM)

$3.99

$

Usually ships in 2-12 days

0

27

Snapper 7091835

SCREW, M6 1.0X12MM, Hex Head, CZ
(Superseded to 7091835YP)

$3.49

$

Usually ships in 2-12 days

0

28

Snapper 5025046

NUT, 3/8-16, HEX TOP LOCK
(Superseded to 5025046SM)

$3.49

$

In Stock, Qty 6

0

29

Snapper 7027181

BOLT, 3/8-16 x 1-1/4" Short Neck Carriage, GR 5

$

$

Not available

30

Snapper 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 2 left!

0

31

Snapper 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

32

Snapper 7075919

BRACKET, Filter
(Superseded to 7075919YP)

$21.99

$

Usually ships in 2-12 days

0

33

Snapper 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

34

Snapper 7078028

FITTING, Tee, 4-4-6 w/37 Degree Flare
(Superseded to 7078028YP)

Note: Parker p/n 4-4-6 S50X-S

$62.99

$

Usually ships in 2-12 days

0

35

Snapper 5023096

FILTER HEAD
(Superseded to 5023096SM)

$52.99

$

Usually ships in 2-12 days

0

36

Snapper 7078027

FITTING, 90 Degree w/37 Degree Flare
(Superseded to 7078027YP)

Note: Parker p/n 8-6 C50X-S

$19.99

$

Usually ships in 2-12 days

0

37

Snapper 1719168

FILTER, OIL
(Superseded to 1719168X1)

$26.99

$

In Stock, Qty 20+

0
