SPLH 173KW (82436) - Snapper Walk-Behind Mower, 17hp FUEL TANK ASSEMBLY Parts Diagram

Walk-Behind Mower, 17hp

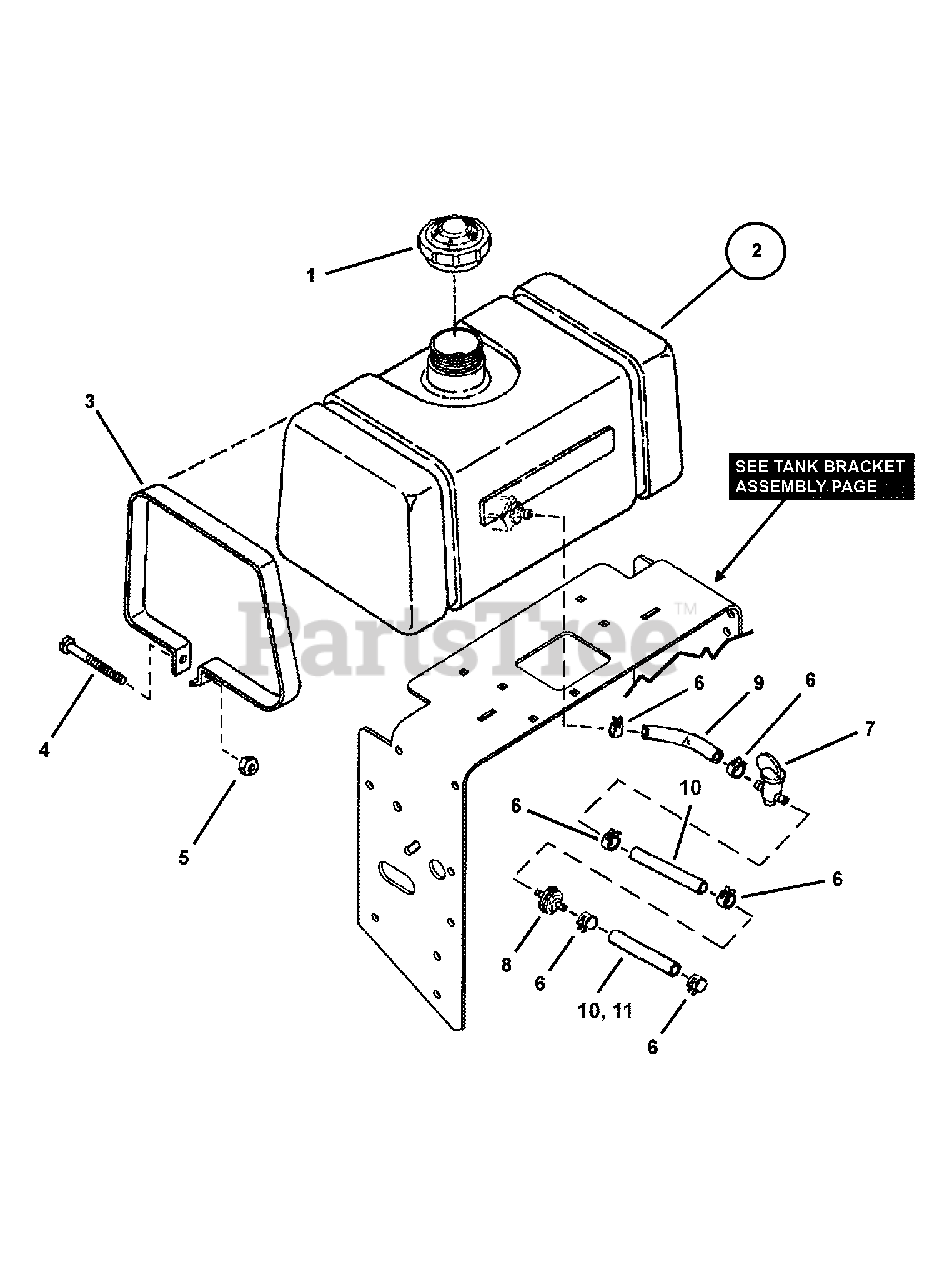

FUEL TANK ASSEMBLY Parts Diagram

  • Title

1

Snapper 7028903

CAP, Fuel Tank
(Superseded to 5101651SM)

Note: Kelch # 200972

$30.99

$

In Stock, Qty 20+

0

2

Snapper 7044639

FUEL TANK

Note: includes item 1

$

$

Not available

3

Snapper 7034923

STRAP, Tank
(Superseded to 7034923YP)

$37.99

$

Usually ships in 2-12 days

0

4

Snapper 7091207

SCREW, #10-24 x 2-1/2" Pan Head Machine
(Superseded to 7091207YP)

$2.99

$

In Stock, Qty 12

0

5

Snapper 7091290

NUT, #10-24 Hex Nyloc
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

6

Snapper 7012222

CLAMP, Fuel Hose
(Superseded to 791850)

Note: or 29900

$3.49

$

In Stock, Qty 20+

0

7

Snapper 7016325

VALVE, Fuel
(Superseded to 7016325SM)

$19.99

$

In Stock, Qty 11

0

8

Snapper 7014359

FILTER, In-Line
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0

9

Snapper 7032956

*HOSE, Fuel (1/4" I.D. x 10" Long)
(Superseded to 7032956YP)

$

$

Not available

10

Snapper 7024055

*HOSE, Fuel (1/4" I.D. x 6-1/2" Long)
(Superseded to 7024055YP)

$5.49

$

Usually ships in 2-12 days

0

11

Snapper 7076272

*HOSE, Fuel (1/4" I. D. x " 8-1/2 Long)
(Superseded to 791766)

$7.99

$

In Stock, Qty 20+

0
