SPLH 173KW (82436) - Snapper Walk-Behind Mower, 17hp DECAL GROUP Parts Diagram

Walk-Behind Mower, 17hp

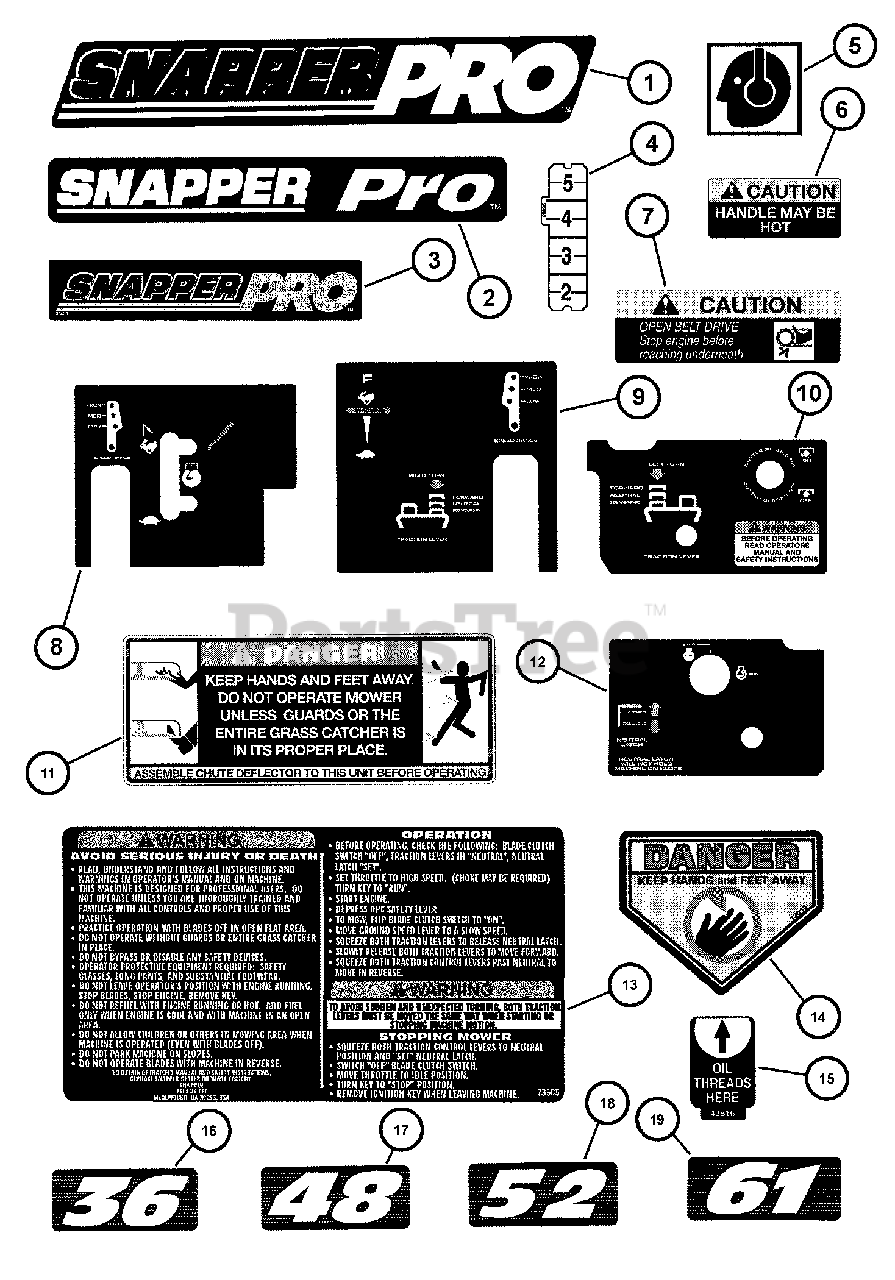

DECAL GROUP Parts Diagram

  • Title

1

Snapper 7074862

DECAL, Snapper Pro (silver, 16-1/2" long)

$

$

Not available

2

Snapper 7046580

DECAL, Snapper Pro w/Trademark (white letters, 13-3/16" long)

$

$

Currently unavailable

3

Snapper 7036481

DECAL, Small Snapper Pro (silver, 8" long)
(Superseded to 7036481YP)

$7.99

$

Usually ships in 2-12 days

0

4

Snapper 7029295

DECAL, Height of Cut

$

$

Not available

5

Snapper 7027733

DECAL, Ear Protection
(Superseded to 7027733YP)

$6.49

$

Usually ships in 2-12 days

0

6

Snapper 7073593

DECAL, Adjustment Handle
(Superseded to 7073593YP)

$7.49

$

Usually ships in 2-12 days

0

7

Snapper 7073594

DECAL, Caution, Open Belt Drive

$

$

Not available

8

Snapper 7075755

DECAL, Left Panel, Throttle w/Choke (Hydro)
(Superseded to 7075755YP)

$16.99

$

Usually ships in 2-12 days

0

9

Snapper 7075758

DECAL, Right Panel, Instructions

$

$

Currently unavailable

10

Snapper 7075757

DECAL, Left Panel, Switch
(Superseded to 7075757YP)

$11.99

$

Usually ships in 2-12 days

0

11

Snapper 7073647

DECAL, Danger Guard/Catcher
(Superseded to 7073647YP)

$7.99

$

Usually ships in 2-12 days

0

12

Snapper 7029044

DECAL, Right Panel, Switch
(Superseded to 7029044YP)

$11.99

$

Usually ships in 2-12 days

0

13

Snapper 7073605

DECAL, Caution Pro Hydro
(Superseded to 7073605YP)

$10.99

$

Usually ships in 2-12 days

0

14

Snapper 7013010

DECAL, Danger (CPSC) Cut Finger
(Superseded to 7013010SM)

$9.49

$

In Stock, Qty 11

0

15

Snapper 7043816

DECAL, Oil Threads Here (Adjustable Decks only)

$

$

Not available

16

Snapper 7075564

DECAL, 36" Deck Commercial
(Superseded to 7075564YP)

Note: silver numbers

$3.99

$

Usually ships in 2-12 days

0

17

Snapper 7044792

DECAL, 48" Deck Commercial
(Superseded to 7044792YP)

Note: white numbers

$9.49

$

Usually ships in 2-12 days

0

17

Snapper 7075565

DECAL, 48" Deck Commercial
(Superseded to 7075565YP)

Note: silver numbers

$9.99

$

In Stock, only 1 left!

0

18

Snapper 7075566

DECAL, 52" Deck Commercial

Note: silver numbers

$

$

Not available

19

Snapper 7044794

DECAL, 61" Deck Commercial
(Superseded to 7044794YP)

Note: white numbers

$13.99

$

Usually ships in 2-12 days

0
