SPLH 171KW (7084397) - Snapper Walk-Behind Mower, 17hp FUEL TANK ASSEMBLY Parts Diagram

Walk-Behind Mower, 17hp

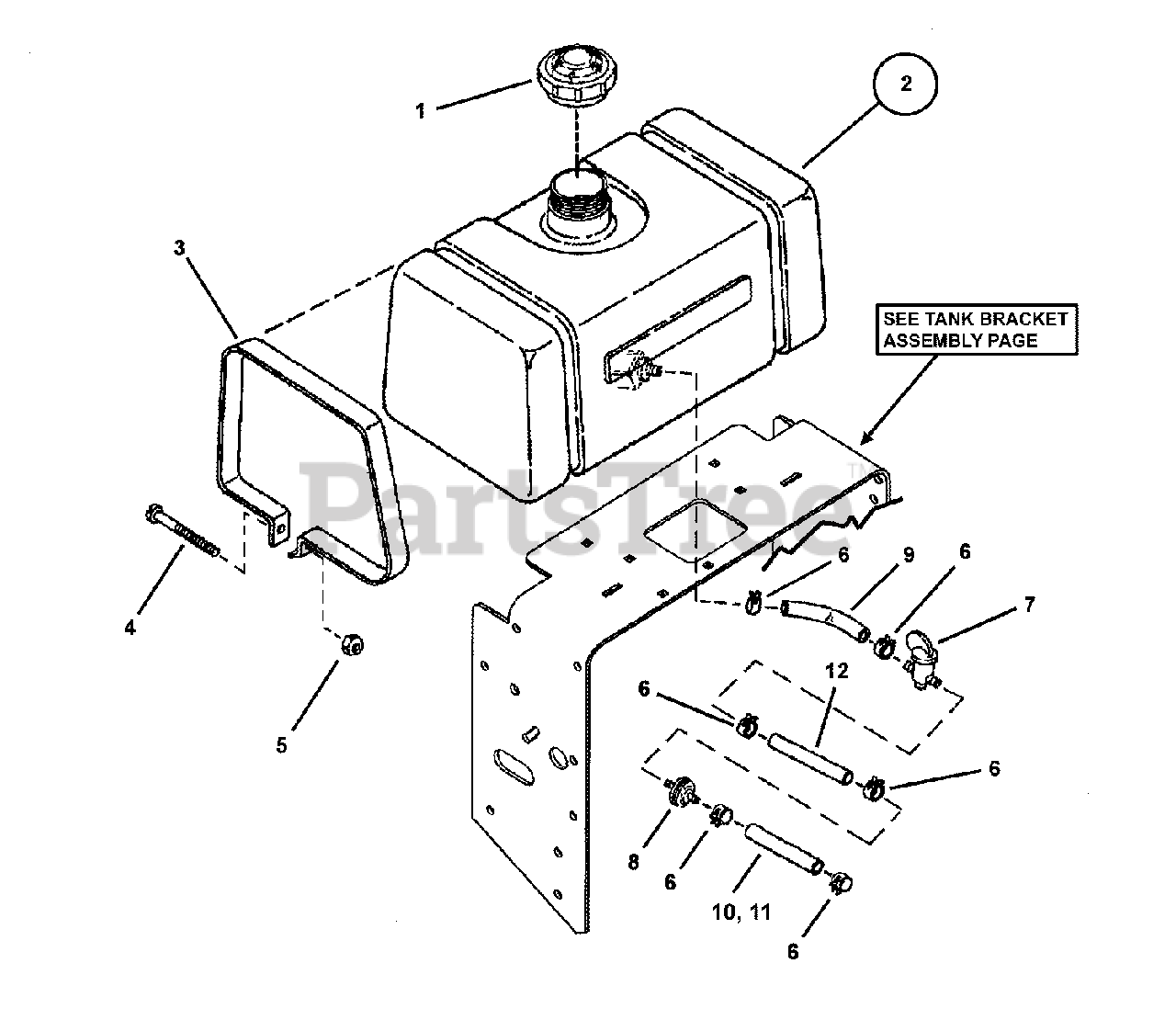

FUEL TANK ASSEMBLY Parts Diagram

  • Title

1

Snapper Pro 7028903

CAP, Fuel Tank
(Superseded to 5101651SM)

$30.99

$

In Stock, Qty 20+

0

2

Snapper Pro 7044639

FUEL TANK

Note: includes item 1

$

$

Not available

3

Snapper Pro 7034923

STRAP, Tank
(Superseded to 7034923YP)

$37.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 7091207

SCREW, #10-24 x 2-1/2" Pan Head Machine

$2.99

$

In Stock, Qty 12

0

5

Snapper Pro 7091290

NUT, #10-24 Hex Nyloc
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

6

Snapper Pro 7029900

CLAMP, Fuel Hose
(Superseded to 791850)

Note: replaces 7012222 clamp

$3.49

$

In Stock, Qty 20+

0

7

Snapper Pro 7016325

VALVE, Fuel
(Superseded to 7016325SM)

$19.99

$

In Stock, Qty 12

0

8

Snapper Pro 7014359

FILTER, In-Line
(Superseded to 394358S)

Note: used on Kawasaki models only

$5.99

$

In Stock, Qty 20+

0

9

Snapper Pro 7032956

* LINE, Fuel (1/4" I.D. x 10" Long)

$

$

Not available

10

Snapper Pro 7024055

* HOSE, Fuel (1/4" I.D. x 6-1/2" Long)
(Superseded to 7024055YP)

$5.49

$

Usually ships in 2-12 days

0

11

Snapper Pro 7076272

* HOSE, Fuel (1/4" I. D. x " 8-1/2 Long)
(Superseded to 791766)

Note: not shown

$7.99

$

In Stock, Qty 20+

0

12

Snapper Pro 7073240

* HOSE, Fuel (1/4" I. D. x 5" Long)
(Superseded to 7073240SM)

$24.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 7077351

* HOSE, Fuel (1/4" I.D. x 3-1/2" Long)
(Superseded to 791766)

Note: not shown

$7.99

$

In Stock, Qty 20+

0
