SPLH 171KW (7084397) - Snapper Walk-Behind Mower, 17hp CASTER, WHEEL & TIRE ASSEMBLY Parts Diagram

Walk-Behind Mower, 17hp

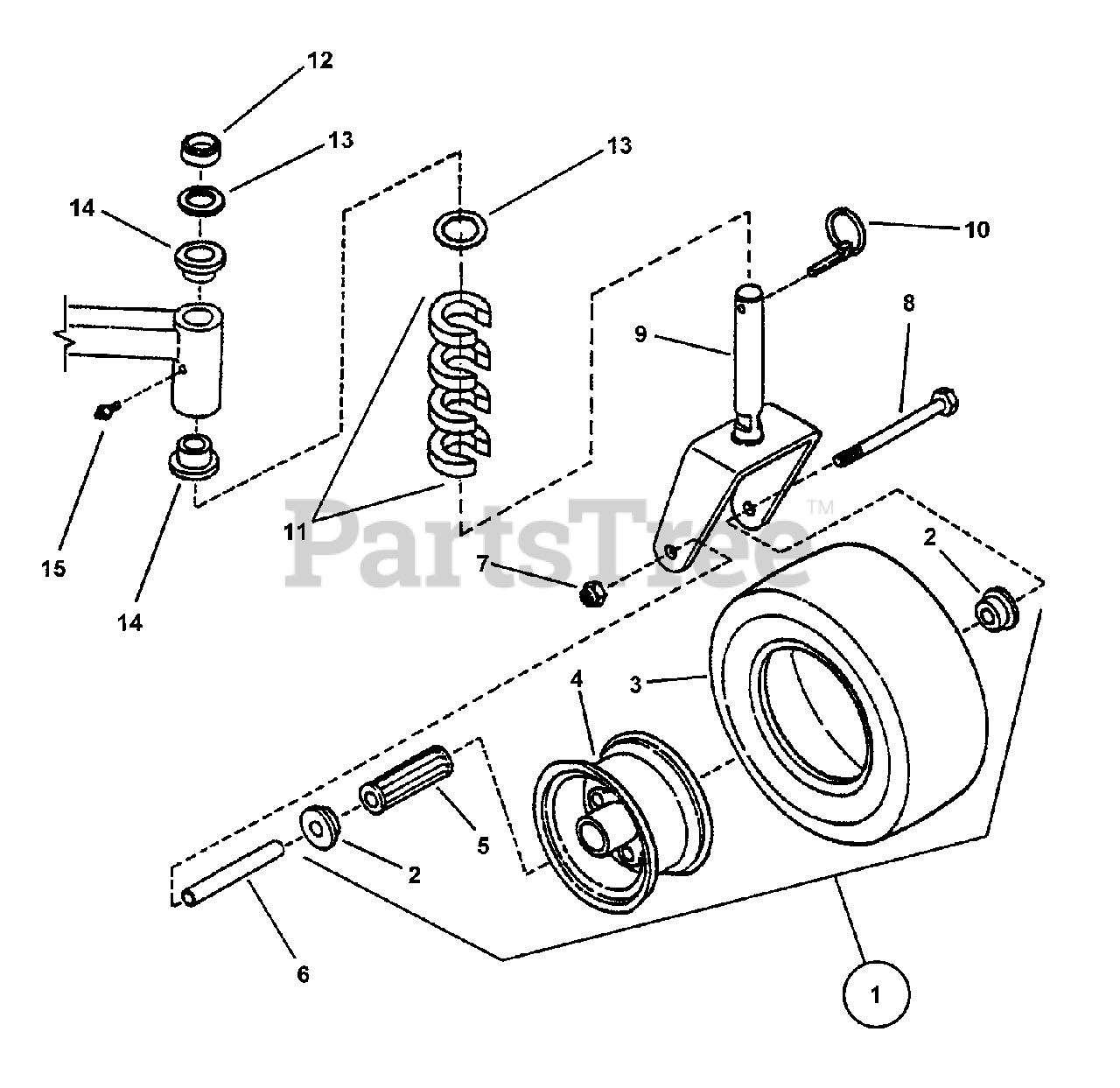

CASTER, WHEEL & TIRE ASSEMBLY Parts Diagram

  • Title
1

Snapper Pro 7029869

* ASSEMBLY, Wheel & Tire (White Rim); incl. items 2 thru 5
(Superseded to 7058167YP)

$120.99

$

Usually ships in 2-12 days

0

1

Snapper Pro 7057711

* ASSEMBLY, Wheel & Tire (Gray Rim); incl. items 2 thru 5
(Superseded to 7058167YP)

Note: or 7058167

$120.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 7022394

RETAINER, Flanged
(Superseded to 7022394YP)

$8.99

$

In Stock, Qty 11

0

3

Snapper Pro 7029870

TIRE, 9 x 3.50-4
(Superseded to 7029870YP)

$57.99

$

In Stock, only 2 left!

0

4

Snapper Pro 7029871

RIM, One-Piece Steel (White)
(Superseded to 7057737YP)

Note: includes Items 2 & 5

$85.99

$

In Stock, only 1 left!

0

4

Snapper Pro 7057737

RIM, One-Piece Steel (Gray)
(Superseded to 7057737YP)

Note: includes Items 2 & 5

$85.99

$

In Stock, only 1 left!

0

5

Snapper Pro 7022395

BEARING, Roller
(Superseded to 7022395YP)

$18.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 7022151

SLEEVE, Axle
(Superseded to 7022151YP)

$43.99

$

In Stock, only 1 left!

0

7

Snapper Pro 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0

8

Snapper Pro 5025017X44

BOLT, 1/2-13 X 5-1/2" GD5 YZ
(Superseded to 5025017X44SM)

$7.99

$

In Stock, only 3 left!

0

9

Snapper Pro 7042780

WELDMENT, Yoke Caster
(Superseded to 7054464BMYP)

$222.99

$

In Stock, only 2 left!

0

10

Snapper Pro 7017711

LYNCH PIN, 7/16" Heavy Duty
(Superseded to 5020655SM)

$10.99

$

In Stock, only 2 left!

0

11

Snapper Pro 7019152

SPACER
(Superseded to 7019152YP)

$7.49

$

In Stock, only 1 left!

0

12

Snapper Pro 7021960

SPACER, PM
(Superseded to 7028641YP)

$

$

Not available

13

Snapper Pro 7023747

BUSHING, 1"
(Superseded to 7023747YP)

$5.49

$

In Stock, Qty 20+

0

14

Snapper Pro 7046626

BUSHING, Caster
(Superseded to 7023556YP)

$8.49

$

In Stock, Qty 20+

0

15

Snapper Pro 7076998

LUBE FITTING, 1/4-28 Straight
(Superseded to 703153)

$3.99

$

In Stock, Qty 12
