SPLH 160BV (7080914) - Snapper Walk-Behind Mower, 16hp Wiring Schematics (Part 2) Parts Diagram

Walk-Behind Mower, 16hp

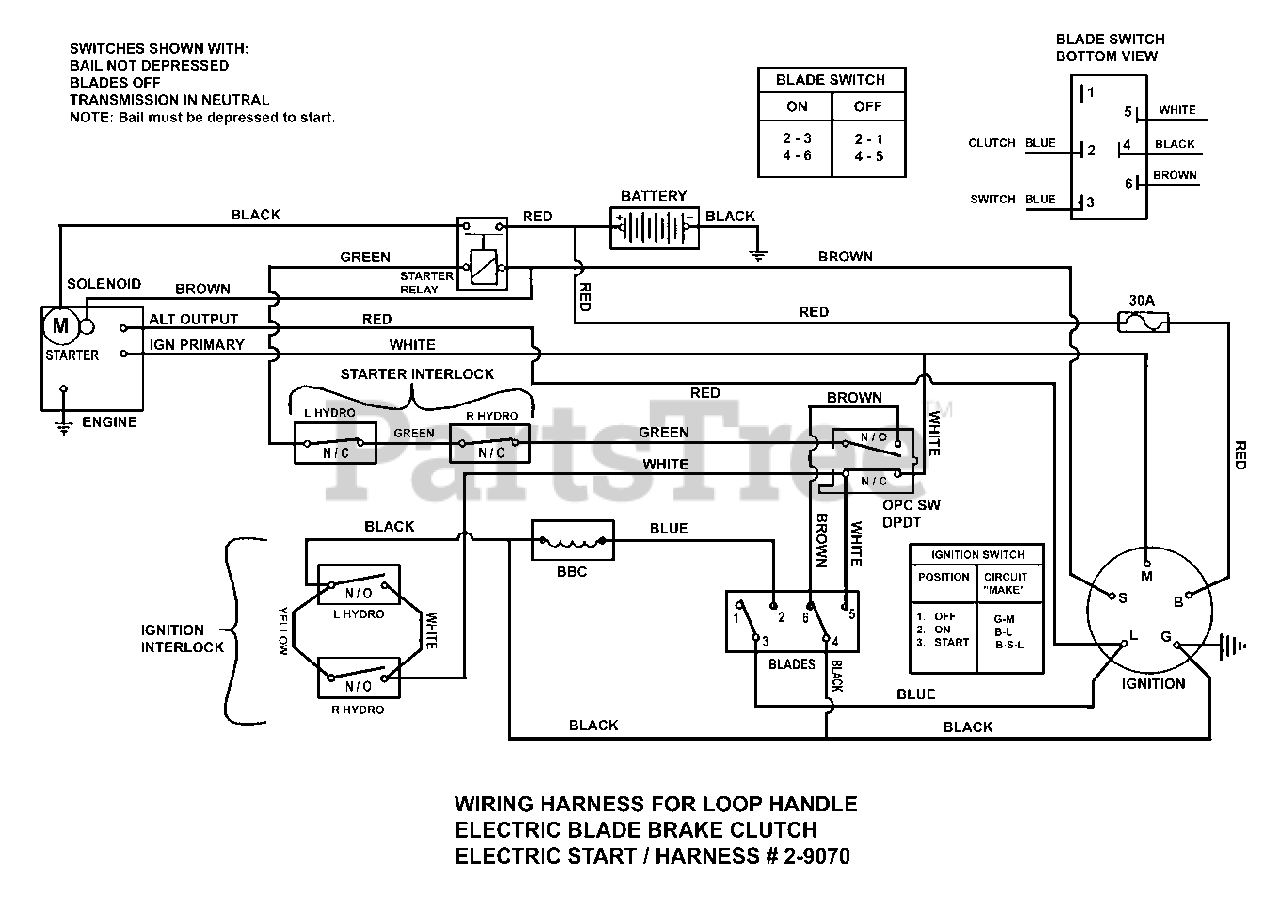

Wiring Schematics (Part 2) Parts Diagram

  • Title

29070

Snapper Pro 7029070

Wiring Harness

Note: For Loop Handle

$

$

Not available
