SPLH 153KW (84235) - Snapper Walk-Behind Mower, 15hp TRACTION, REAR WHEEL ASSEMBLY Parts Diagram

Walk-Behind Mower, 15hp

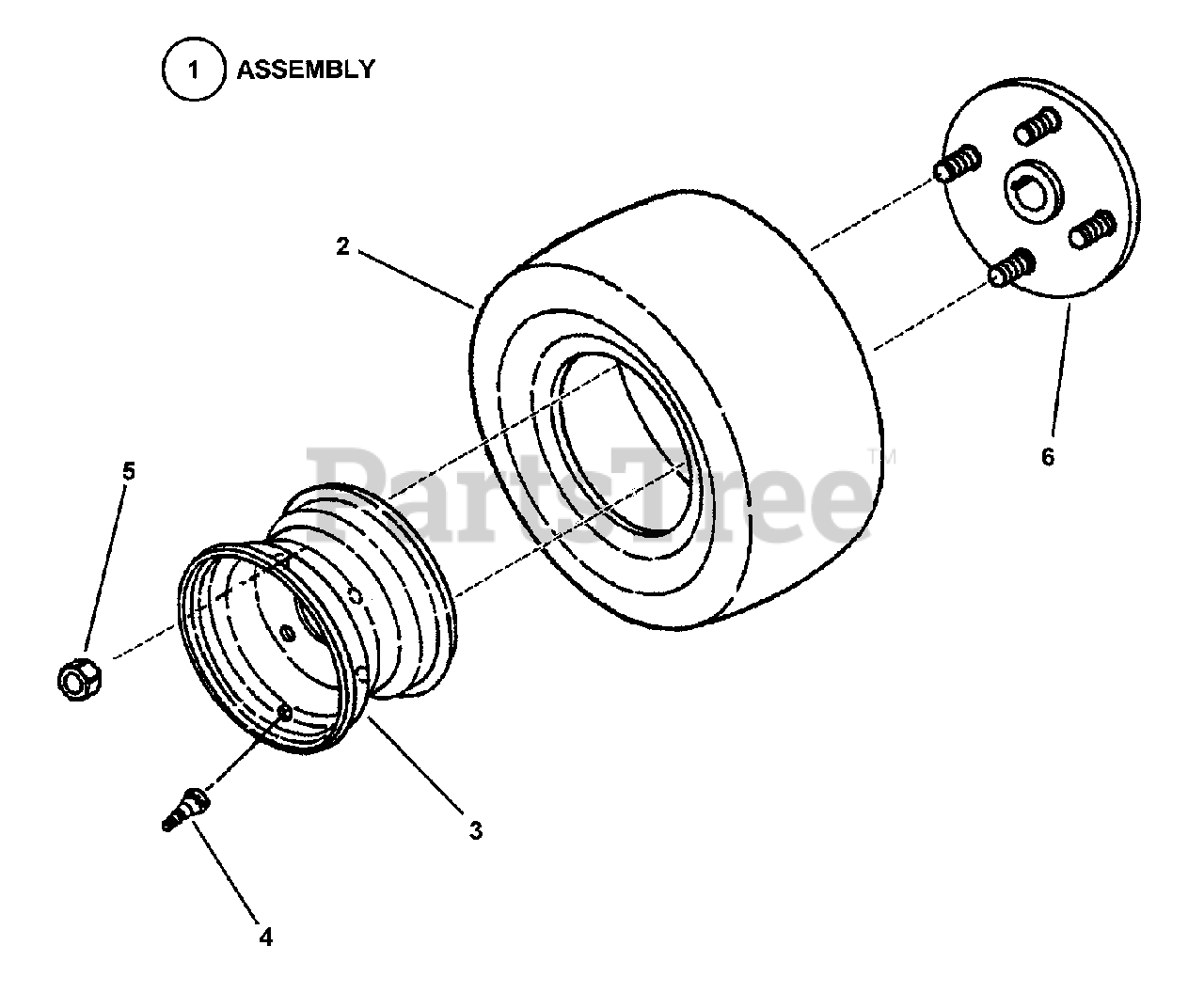

TRACTION, REAR WHEEL ASSEMBLY Parts Diagram

  • Title

1

Snapper 7058425

ASSEMBLY, Rear Tire & Rim, Turf Saver, Gray

Note: Includes item 2, 3 & 6

$

$

Currently unavailable

2

Snapper 7073526

TIRE, 16 x 6.50-8, 4 Ply (Carlisle "Turf Saver")
(Superseded to 7073584YP)

$170.99

$

Usually ships in 2-12 days

0

3

Snapper 7075729

RIM (Gray)

$

$

Currently unavailable

4

Snapper 7012234

AIR VALVE, Snap-In
(Superseded to 7012234SM)

Note: Goodyear p/n TR-412

$6.49

$

Usually ships in 2-12 days

0

5

Snapper 7092097

LUG-NUT, 1/2-20 Tapered Seat

Note: was 7027192

$

$

Not available

6

Snapper 7075303

WHEEL HUB, w/4 threaded studs

$

$

Not available
