SPLH 141KH - Snapper Walk-Behind Mower, 14hp OIL TANK ASSEMBLY (All Except SPLH231KHE) Parts Diagram

Walk-Behind Mower, 14hp

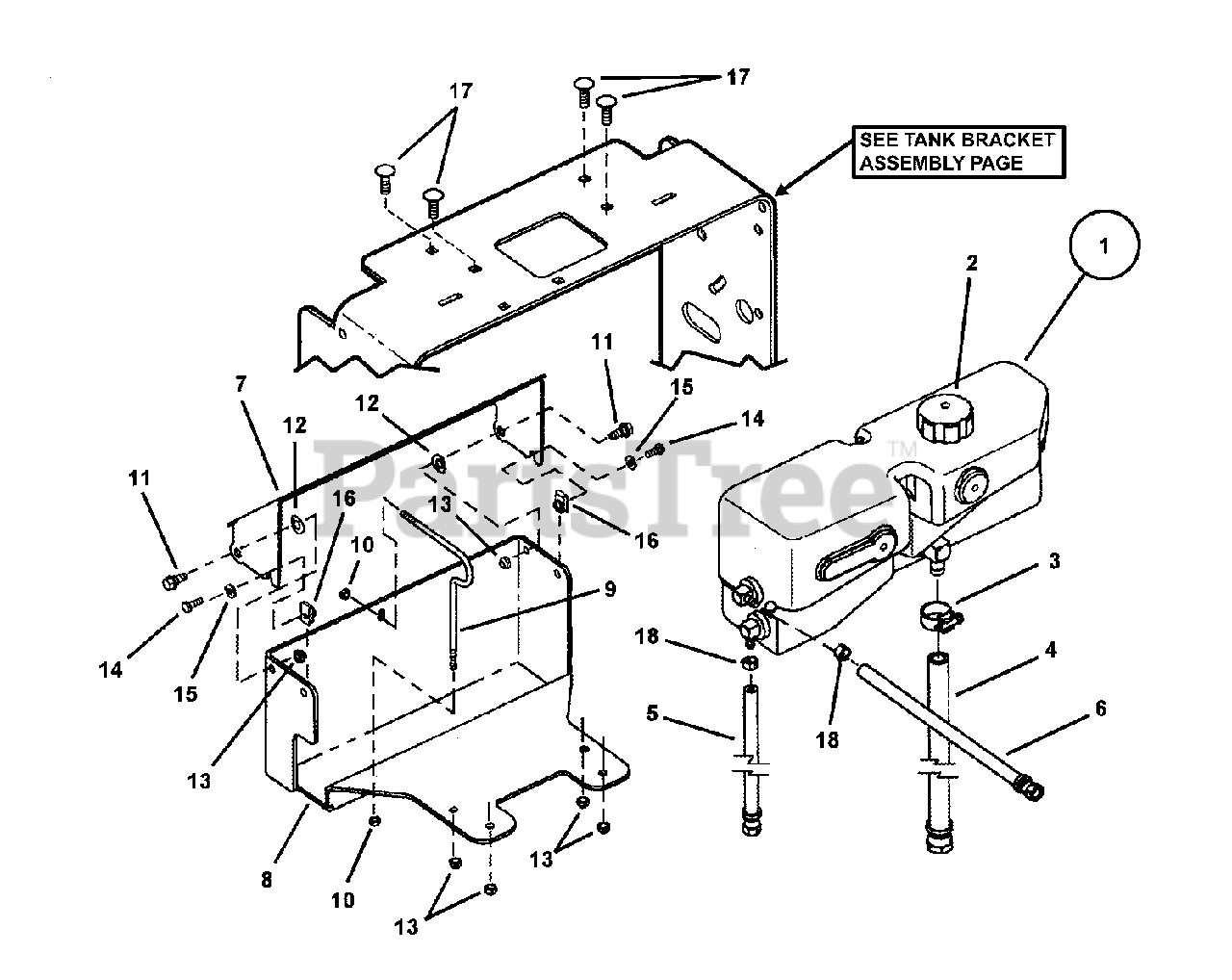

OIL TANK ASSEMBLY (All Except SPLH231KHE) Parts Diagram

  • Title
1

Snapper 7058610

OIL TANK (Includes Item 2)
(Superseded to 7058610YP)

$324.99

$

Usually ships in 2-12 days

0

2

Snapper 7035512

CAP, Oil Tank, Vented

$

$

Not available

3

Snapper 7016130

CLAMP, 13/16" Hose
(Superseded to 7016130YP)

$3.49

$

In Stock, only 1 left!

0

4

Snapper 7072897

HOSE, 1/2 x 19-1/2" Supply (3/4-16 Fitting on One End)
(Superseded to 7072897YP)

$33.99

$

Usually ships in 2-12 days

0

5

Snapper 7072898

HOSE, 1/2 x 24-1/2" Return (7/16-20 Fitting on One End)

$

$

Not available

6

Snapper 7072910

HOSE, Return, 10-1/2" (7/16-20 Fitting on One End)

$

$

Not available

7

Snapper 7072899

COVER, Oil Tank Bracket
(Superseded to 7072899YP)

$38.99

$

Usually ships in 2-12 days

0

8

Snapper 7072895

BRACKET, Reservoir, Hydro
(Superseded to 7072895YP)

$216.99

$

Usually ships in 2-12 days

0

9

Snapper 7072896

RETAINING ROD, Reservoir (1/4-20 threads)
(Superseded to 7072896YP)

$19.99

$

Usually ships in 2-12 days

0

10

Snapper 7091705

NUT, 1/4-20 Hex Top Lock, GR B
(Superseded to 704319)

$3.49

$

Usually ships in 2-12 days

0

11

Snapper 7015761

SHOULDER BOLT, 5/16-18
(Superseded to 703839)

$5.49

$

In Stock, only 3 left!

0

12

Snapper 7011079

WASHER, 3/8" Curved
(Superseded to 7011079YP)

$4.99

$

In Stock, Qty 20+

0

13

Snapper 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

14

Snapper 7091495

SCREW, 1/4-20 x 3/4" Hex Head Cap, GR 5
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

15

Snapper 7091294

SHOULDER BOLT, 3/8-16 x 2-7/16"
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

16

Snapper 7023295

U-NUT 1/4-20
(Superseded to 705876)

$4.49

$

In Stock, Qty 20+

0

17

Snapper 7091303

BOLT, 5/16-18 x 1" Short Neck Carriage, GR 5
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

18

Snapper 7029900

CLAMP, Fuel Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0
