SPLH 140KH (80898) - Snapper Walk-Behind Mower, 14hp Hose Assembly Parts Diagram

Walk-Behind Mower, 14hp

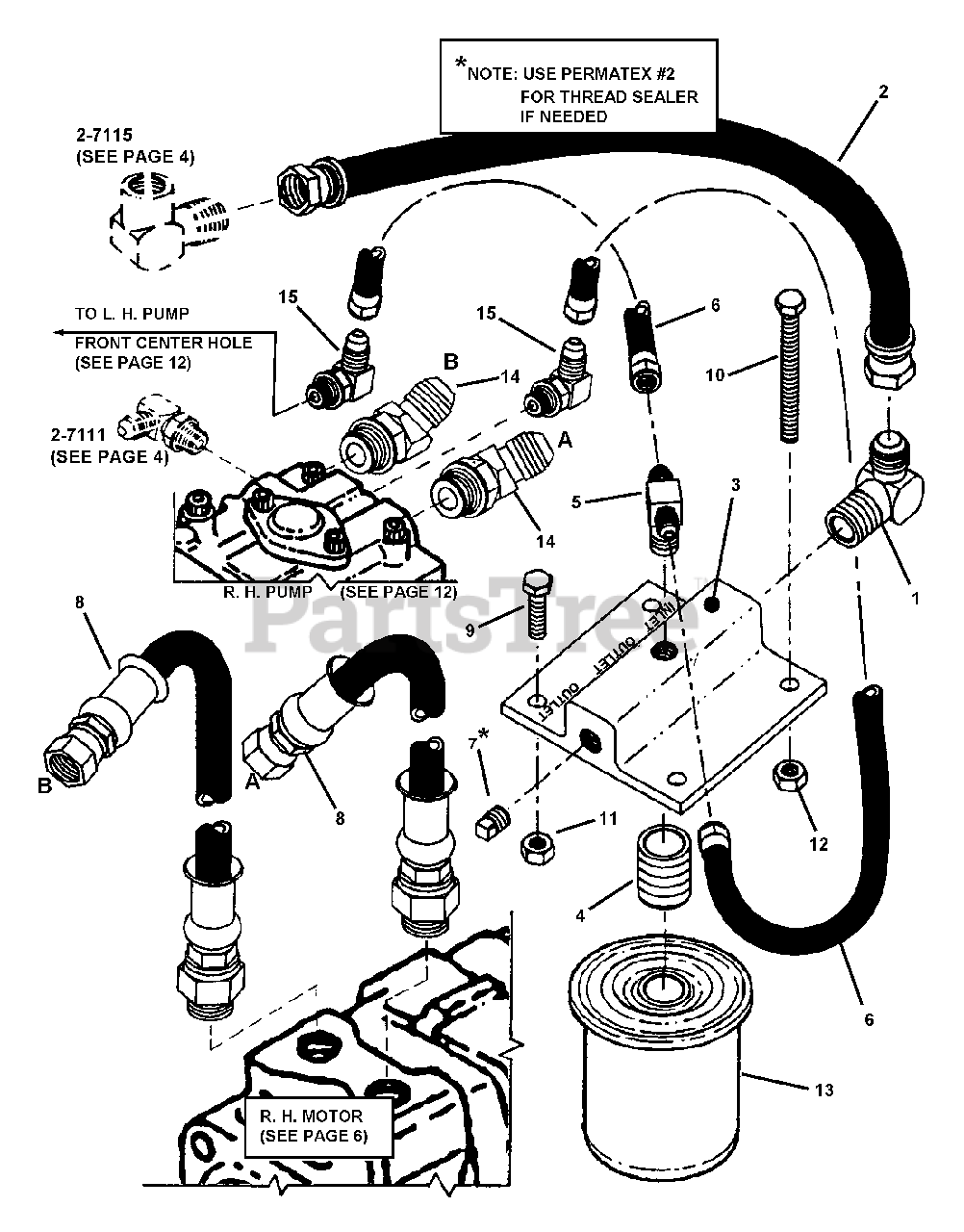

Hose Assembly Parts Diagram

  • Title

1

Snapper 7027106

FITTING, External 90 degree w/37 degree Flare
(Superseded to 7027106YP)

$20.99

$

Usually ships in 2-12 days

0

2

Snapper 7027118

HOSE, 1/2 x 16-1/2" Long

$

$

Not available

3

Snapper 7027123

MOUNT, Oil Filter
(Superseded to 7027123YP)

Note: Was 27165

$107.99

$

Usually ships in 2-12 days

0

4

Snapper 7027200

FITTING, Straight 1-12 UNF Thread

$

$

Currently unavailable

5

Snapper 7028855

TEE
(Superseded to 7028855YP)

$21.99

$

Usually ships in 2-12 days

0

6

Snapper 7028912

HOSE, 10-1/2"
(Superseded to 7028912YP)

$23.99

$

Usually ships in 2-12 days

0

7

Snapper 7029039

PLUG, 1/4 NPTM Pipe
(Superseded to 7029039YP)

$3.99

$

Usually ships in 2-12 days

0

8

Snapper 7029058

HOSE, Pump/Motor, High Pressure 21-1/2"
(Superseded to 7029058YP)

$127.99

$

Usually ships in 2-12 days

0

9

Snapper 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

10

Snapper 7027221

SCREW, 3/8-16 x 3-1/2" Hex Head Cap, Grade 5
(Superseded to 7027221YP)

$3.99

$

Usually ships in 2-12 days

0

11

Snapper 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

Note: Was 90717

$3.99

$

Usually ships in 2-12 days

0

12

Snapper 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0

13

Snapper 7027164

FILTER, Oil
(Superseded to 7027164YP)

Note: Nelson P/N 85437-D

$

$

Not available

14

Snapper 7027113

FITTING, 45 degree w/"O"-Ring Boss
(Superseded to 7027113YP)

$28.99

$

In Stock, only 1 left!

0

15

Snapper 7027110

FITTING, 90 degree - "O"-Ring Boss
(Superseded to 7027110YP)

$11.99

$

Usually ships in 2-12 days

0
