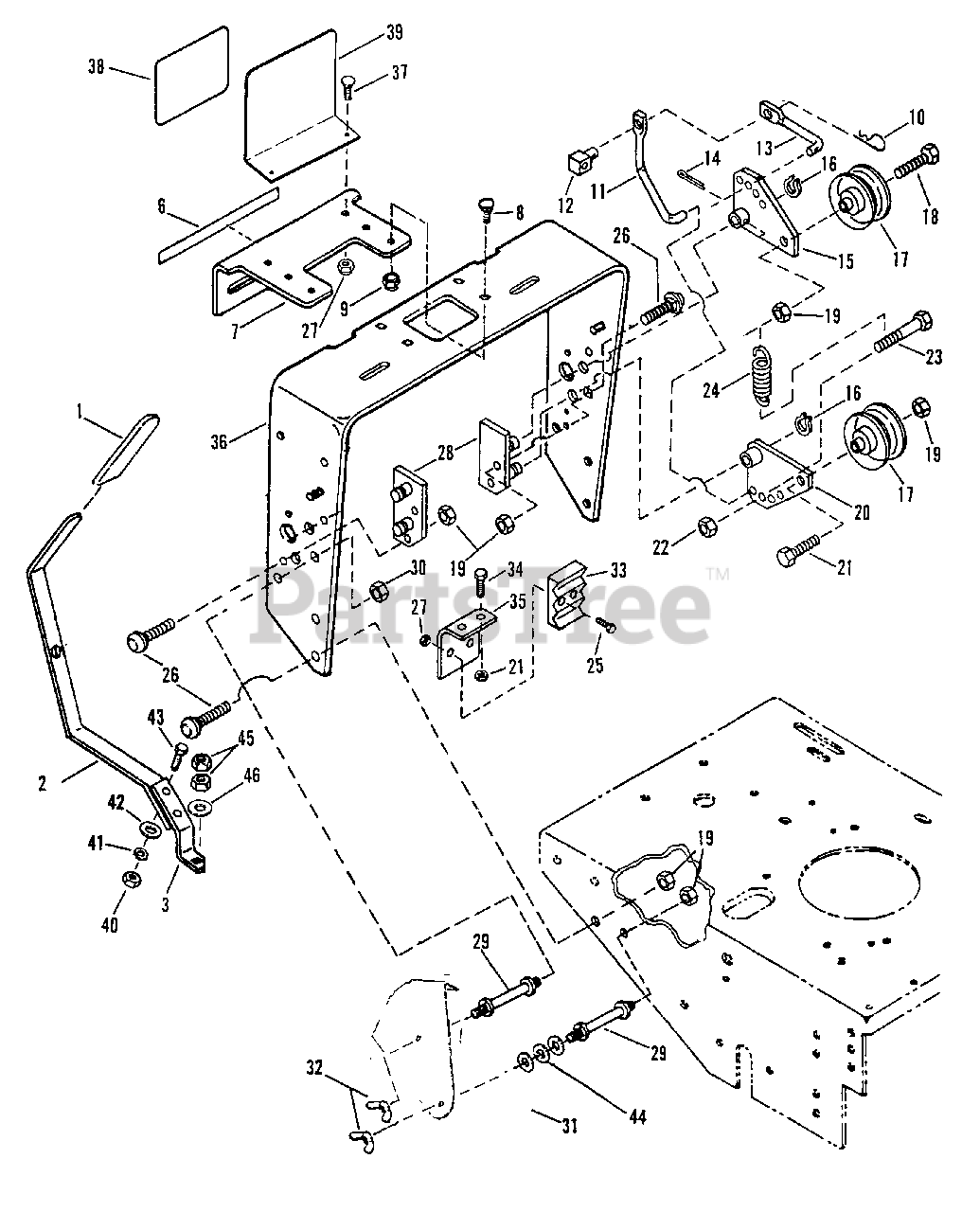

SPL 140KH (7082358) - Snapper Walk-Behind Mower, 14hp Tank Bracket Assembly Parts Diagram

Walk-Behind Mower, 14hp

Tank Bracket Assembly Parts Diagram

  • Title

1

Snapper Pro 7076526

GRIP, Shift Lever

$3.99

$

In Stock, only 1 left!

0

2

Snapper Pro 7034429

LEVER, Upper Shifter
(Superseded to 7034429YP)

$85.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 7034809

LEVER, Lower Shifter
(Superseded to 7034809YP)

$95.99

$

Usually ships in 2-12 days

0

?4

Snapper Pro 7090390

WASHER, 3/8 Internal Tooth Lock

Note: (Briggs)

$

$

Not available

?5

Snapper Pro 5025035

NUT, 3/8-24 HEX
(Superseded to 5025035SM)

Note: (Briggs)

$3.49

$

Usually ships in 2-12 days

0

6

Snapper Pro 7029793

DECAL, Shift
(Superseded to 7029793YP)

$3.99

$

Usually ships in 2-12 days

0

Snapper Pro 7028943

DECAL, Shift

Note: (9 HP)

$

$

Currently unavailable

7

Snapper Pro 7046565

QUADRANT, Shift
(Superseded to 7046565YP)

Note: Was 34799

$46.99

$

Usually ships in 2-12 days

0

Snapper Pro 7034900

QUADRANT, Shift

Note: (9 HP)

$

$

Currently unavailable

8

Snapper Pro 7076972

BOLT, 1/4-20 x 3/4" Short Neck Carriage, Grade 5

$

$

Currently unavailable

9

Snapper Pro 7091705

NUT, 1/4-20 Hex, Nyloc

$

$

Not available

10

Snapper Pro 7091310

HAIR-PIN, 3/32 x 1-3/16"
(Superseded to 703430)

Note: (Used With Pistol Grip)

$3.49

$

In Stock, only 2 left!

0

11

Snapper Pro 7033715

LINK, Long (Left Hand)
(Superseded to 7033715YP)

$6.99

$

In Stock, only 1 left!

0

Snapper Pro 7033714

LINK, Long (Right Hand)
(Superseded to 7033714YP)

$6.99

$

In Stock, only 1 left!

0

12

Snapper Pro 7024607

SWIVEL
(Superseded to 7024607YP)

$8.49

$

In Stock, only 1 left!

0

13

Snapper Pro 7033713

LINK, Short

$

$

Not available

14

Snapper Pro 7091313

COTTER-PIN, 3/32 x 1"

Note: (2 Used With Loop Handle)

$

$

Not available

15

Snapper Pro 7041643

WELDMENT, Idler (Upper Left & Lower Right Sides)

$

$

Not available

Snapper Pro 7041779

WELDMENT, Idler (Upper Left & Lower Right)
(Superseded to 7041779YP)

Note: (9 HP)

$53.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 7010739

RING, 5/8" External Retaining
(Superseded to 7010739SM)

$3.49

$

In Stock, only 2 left!

0

17

Snapper Pro 7024707

PULLEY, Idler
(Superseded to 7024707YP)

$69.99

$

Usually ships in 2-12 days

0

Snapper Pro 7028961

PULLEY, Idler
(Superseded to 7028961YP)

Note: (9 HP)

$48.99

$

In Stock, only 4 left!

0

18

Snapper Pro 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

Note: Was 90588

$4.49

$

In Stock, only 1 left!

0

19

Snapper Pro 5025046

NUT, 3/8-16, HEX TOP LOCK
(Superseded to 5025046SM)

$3.49

$

In Stock, Qty 6

0

20

Snapper Pro 7041299

WELDMENT, Idler (Lower Left & Upper Right Sides)
(Superseded to 7041299YP)

$84.99

$

Usually ships in 2-12 days

0

Snapper Pro 7041780

WELDMENT, Idler (Lower Left & Upper Right)
(Superseded to 7041780YP)

Note: (9 HP)

$63.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

22

Snapper Pro 7091601

NUT, 5/16-18 Hex Flange Lock, Grade 5
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

23

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

Note: Was 90206

$3.99

$

In Stock, only 4 left!

0

24

Snapper Pro 7029740

SPRING, Extension
(Superseded to 7029740YP)

$

$

Not available

Snapper Pro 7029134

SPRING, Extension

Note: (9 HP)

$

$

Not available

25

Snapper Pro 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

Note: (Quantity 4 For Kawasaki)

$3.99

$

In Stock, only 2 left!

0

26

Snapper Pro 7091640

BOLT, 3/8-16 x 1" Carriage, Grade 2
(Superseded to 703814)

Note: Was 90747

$4.49

$

In Stock, only 4 left!

0

27

Snapper Pro 5025095

NUT, 1/4-20 HEX NYLON LOCK
(Superseded to 5025095SM)

Note: (Quantity 6 for Kawasaki)

$3.49

$

In Stock, Qty 5

0

28

Snapper Pro 7041285

WELDMENT, Idler Pivot (Left Hand)

$78.99

$

Usually ships in 2-12 days

0

Snapper Pro 7041284

WELDMENT, Idler Pivot (Right Hand)

$78.99

$

Usually ships in 2-12 days

0

29

Snapper Pro 7028864

STUD, Fender Mount
(Superseded to 7028864YP)

$27.99

$

Usually ships in 2-12 days

0

30

Snapper Pro 7090665

NUT, 3/8-16 Hex Jam

$

$

Not available

31

Snapper Pro 7034788

FENDER
(Superseded to 7034788YP)

$22.99

$

Usually ships in 2-12 days

0

32

Snapper Pro 7091049

WING-NUT, 3/8-16
(Superseded to 7091049SM)

$5.49

$

In Stock, only 2 left!

0

33

Snapper Pro 7028983

REGULATOR/RECTIFIER

Note: (Kawasaki Only)

$

$

Not available

34

Snapper Pro 7090599

SCREW, 5/16-18 x 3/4"
(Superseded to 7091613YP)

$3.49

$

Usually ships in 2-12 days

0

35

Snapper Pro 7073073

BRACKET,
(Superseded to 7073073YP)

Note: Was 26977 (Kawasaki Engine only)

$16.99

$

Usually ships in 2-12 days

0

36

Snapper Pro 7046564

BRACKET, Tank

Note: Was 34795

$136.99

$

Usually ships in 2-12 days

0

37

Snapper Pro 7091495

SCREW, 1/4-20 x 3/4" Hex Head Cap, Grade 5
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

38

Snapper Pro 7029909

DECAL, Caution

$

$

Currently unavailable

39

Snapper Pro 7046566

PLATE, Caution Decal

Note: Was 34797

$

$

Currently unavailable

40

Snapper Pro 5025032

NUT, 5/16-18 HEX
(Superseded to 5025032SM)

$3.49

$

Usually ships in 2-12 days

0

41

Snapper Pro 7091315

WASHER,Slit Lock 5/16"
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

42

Snapper Pro 7091528

WASHER, Flat, 11/32"

$

$

Not available

43

Snapper Pro 5025011X10

BOLT, 5/16-18 X 1-1/4 GD5 YZ
(Superseded to 5025055X10YP)

$3.49

$

Usually ships in 2-12 days

0

44

Snapper Pro 7091627

WASHER, 1/4 Flat
(Superseded to 7091627YP)

$4.99

$

In Stock, Qty 11

0

45

Snapper Pro 5025035

NUT, 3/8-24 HEX
(Superseded to 5025035SM)

$3.49

$

Usually ships in 2-12 days

0

46

Snapper Pro 7091777

WASHER, 3/8 Heavy
(Superseded to 7091777YP)

$3.49

$

Usually ships in 2-12 days
