SPEL 150KH (84628) - Snapper Walk-Behind Mower, 15hp LOOP HANDLE & CONTROLS (Shift Lever) Parts Diagram

Walk-Behind Mower, 15hp

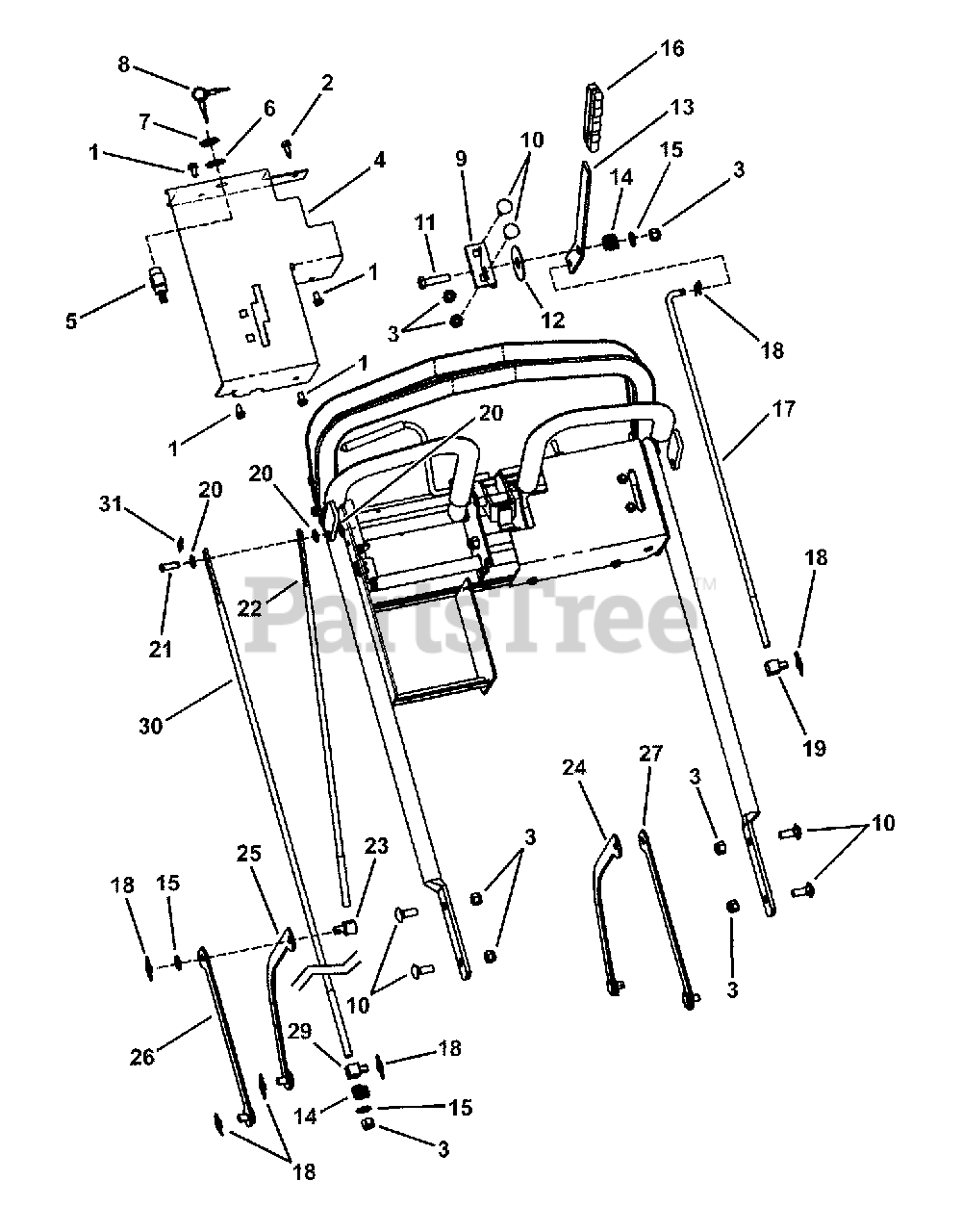

LOOP HANDLE & CONTROLS (Shift Lever) Parts Diagram

  • Title

1

Snapper 7091122

SCREW, 1/4-20 x 1/2" Hex Washer Self-Tap
(Superseded to 7091122SM)

Note: also shown on previous page

$3.99

$

In Stock, Qty 5

0

2

Snapper 7091686

SCREW, 1/4-20 x 3/4" Hex Washer Self-Tap
(Superseded to 703466)

Note: also shown on previous page

$3.99

$

In Stock, Qty 10

0

3

Snapper 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

Note: also shown on previous page

$3.49

$

In Stock, Qty 20+

0

4

Snapper 7073310

PANEL, Console RH
(Superseded to 7073310YP)

$37.99

$

Usually ships in 2-12 days

0

5

Snapper 7017817

SWITCH, On-Off
(Superseded to 7017817YP)

$31.99

$

In Stock, only 1 left!

0

6

Snapper 7090880

WASHER, 5/8" Internal Tooth Lock
(Superseded to 1960547SM)

$4.49

$

In Stock, only 3 left!

0

7

Snapper 7012685

NUT, 5/8-32 Hex (Special)
(Superseded to 7012685YP)

$3.99

$

Usually ships in 2-12 days

0

8

Snapper 7011138

KEY, Ignition (Pair)
(Superseded to 7011138YP)

$7.49

$

In Stock, Qty 7

0

9

Snapper 7041880

BRACKET, Shift Handle
(Superseded to 7041880YP)

$10.99

$

Usually ships in 2-12 days

0

10

Snapper 7091640

BOLT, 3/8-16 x 1" Square Neck Carriage, GR 5
(Superseded to 703814)

$4.49

$

In Stock, only 4 left!

0

11

Snapper 7091497

SCREW, 3/8-16 x 1-1/2" Hex Head Cap, GR 5
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

12

Snapper 7032692

SPACER, Wear
(Superseded to 7032692YP)

$3.49

$

Usually ships in 2-12 days

0

13

Snapper 7072383

SHIFT LEVER
(Superseded to 7072383YP)

$11.99

$

Usually ships in 2-12 days

0

14

Snapper 7028036

SPRING, Friction Pack
(Superseded to 7028036YP)

$6.99

$

Usually ships in 2-12 days

0

15

Snapper 7090122

WASHER, 3/8" SAE Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

16

Snapper 7026420

GRIP, Flat Bar (Black)
(Superseded to 7105356YP)

$5.49

$

Usually ships in 2-12 days

0

17

Snapper 7073314

ROD, Shift (21-1/2" long, 3/8-16 thread)
(Superseded to 7073314YP)

$18.99

$

Usually ships in 2-12 days

0

18

Snapper 7091594

COTTER PIN, 1/2" Self-Locking
(Superseded to 7091594SM)

$2.99

$

In Stock, only 2 left!

0

19

Snapper 7024607

SWIVEL, Brake Link, 3/8-16 thread
(Superseded to 7024607YP)

Note: .019 Dia. Hole (PM)

$8.49

$

In Stock, only 1 left!

0

20

Snapper 7091296

WASHER, 5/16" Flat
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

21

Snapper 7073953

PIN, 5/16 x .94 Clevis
(Superseded to 7073953YP)

$2.99

$

Usually ships in 2-12 days

0

22

Snapper 7073312

ROD, Traction (22" Long, 3/8-16 Thread)
(Superseded to 7073312YP)

$18.99

$

Usually ships in 2-12 days

0

23

Snapper 7041874

SWIVEL, 3/8-16 Thread, .109 Dia. Hole
(Superseded to 7041874YP)

$28.99

$

In Stock, only 1 left!

0

24

Snapper 7058929

TRACTION LINK, Lower Left (Weldment)
(Superseded to 7058929YP)

$27.99

$

Usually ships in 2-12 days

0

25

Snapper 7058930

TRACTION LINK, Lower Right (Weldment)
(Superseded to 7058930YP)

$25.99

$

Usually ships in 2-12 days

0

26

Snapper 7058931

TRACTION LINK, Upper Right (Weldment)
(Superseded to 7058931YP)

$18.99

$

Usually ships in 2-12 days

0

27

Snapper 7058932

TRACTION LINK, Upper Left (Weldment)
(Superseded to 7058932YP)

$18.99

$

Usually ships in 2-12 days

0

28

Snapper 7073317

WIRING HARNESS, Loop Handle (not shown)
(Superseded to 7073317YP)

Note: See Loop Handle Electrical Components page.

$72.99

$

Usually ships in 2-12 days

0

29

Snapper 7024586

SWIVEL, .406 & .109 Dia. Holes
(Superseded to 7024586YP)

$4.99

$

Usually ships in 2-12 days

0

30

Snapper 7073313

ROD, Brake (37-3/4" Long, 3/8-16 Thread)
(Superseded to 7073313YP)

$22.99

$

Usually ships in 2-12 days

0

31

Snapper 7034162

COTTER PIN, 5/16 Self Lock
(Superseded to 704030)

$4.49

$

In Stock, only 2 left!

0
